A compact, surface-mount Red 7-Segment display with a Common Anode configuration and 0.3" digit height for low-profile applications.
Special Order
Shipping from $2.90
+1830 more from our supplier in 7-10 days
Our Code: SKU-011276
Supplier Link: [SparkFun MPN:30229]

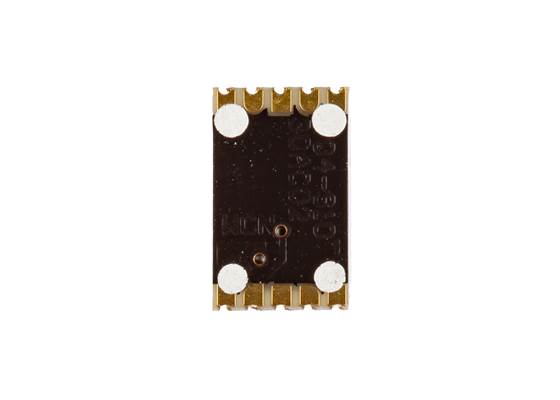

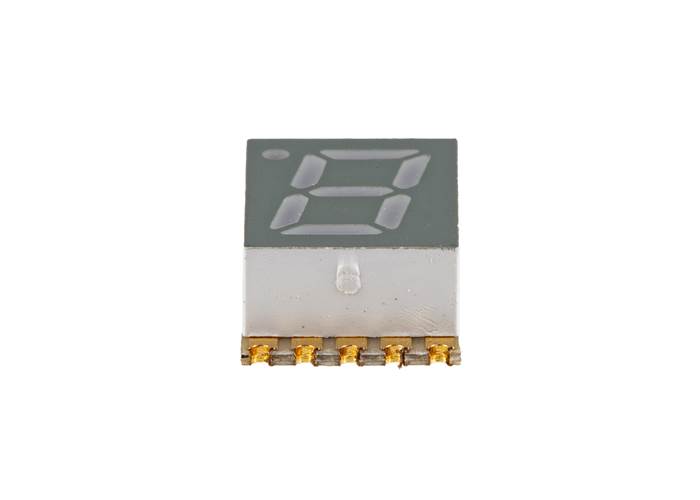

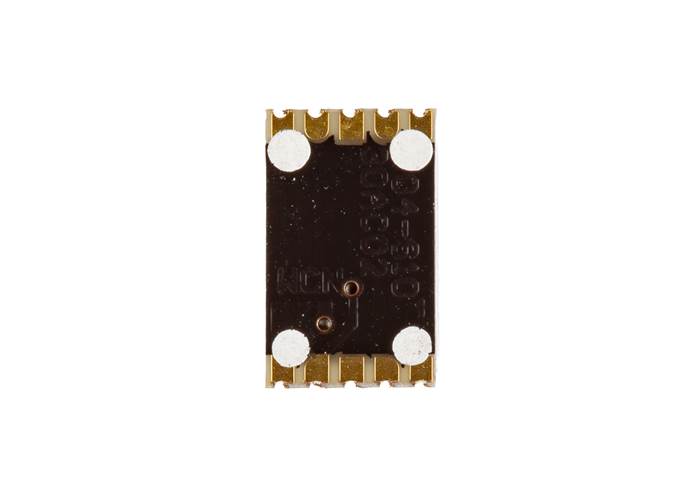

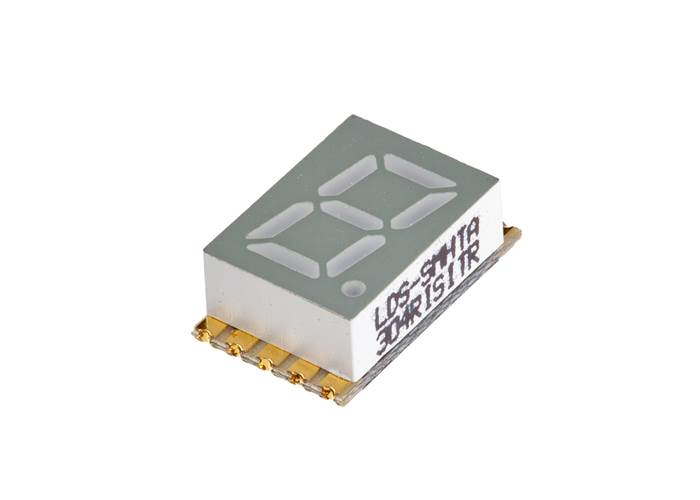

This is the surface-mount version of the classic 7-segment display. If you are looking to keep your PCB profile low and eliminate through-hole components, this SMD Red LED Display is the perfect solution.

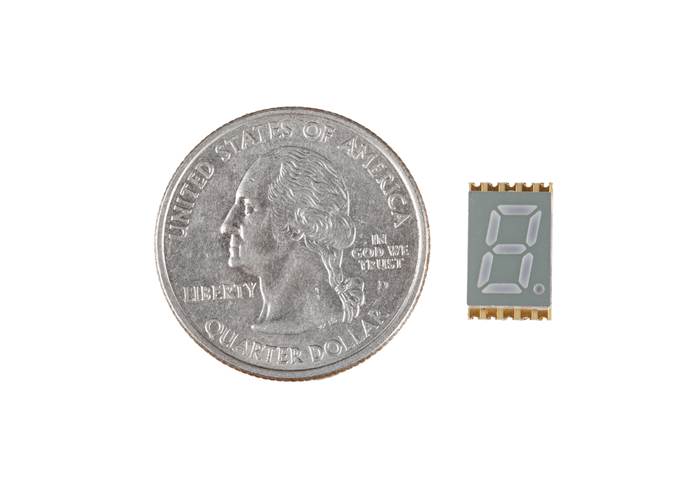

Despite its compact total height of just 0.394" (10mm), it features a clear 0.3" (7.62mm) digit height ensuring high visibility. This specific unit is a Common Anode configuration, making it compatible with a wide variety of LED drivers and shift registers. It’s an ideal choice for instrumentation indication or any custom PCB where vertical space is at a premium.
