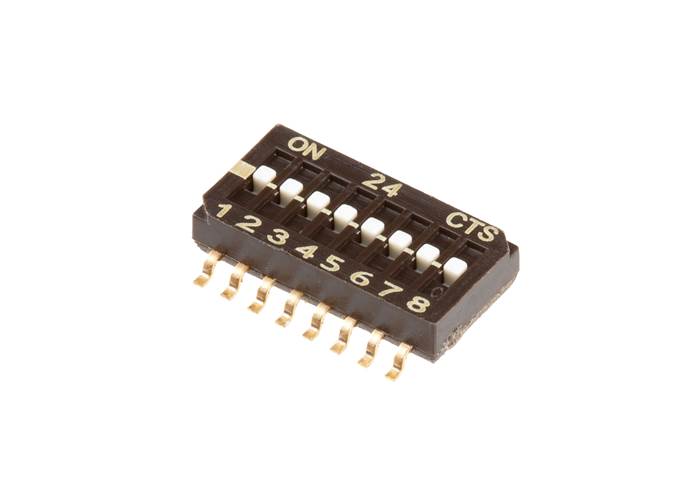

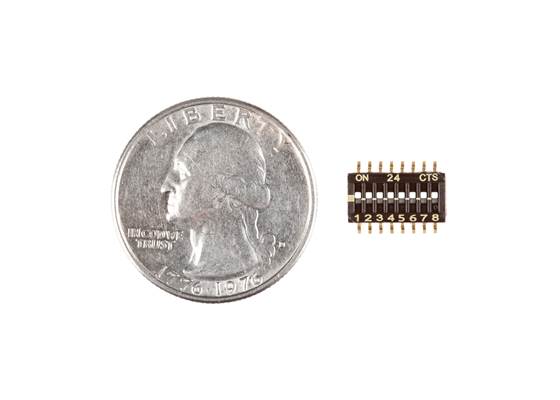

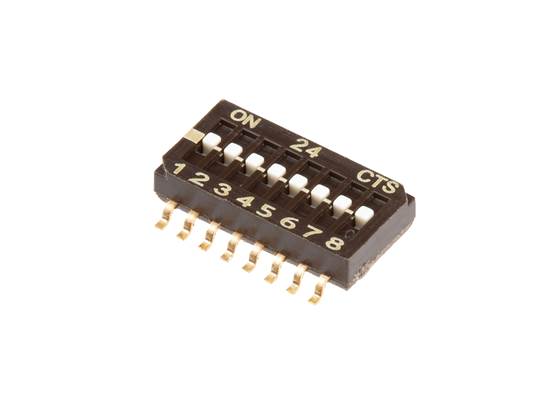

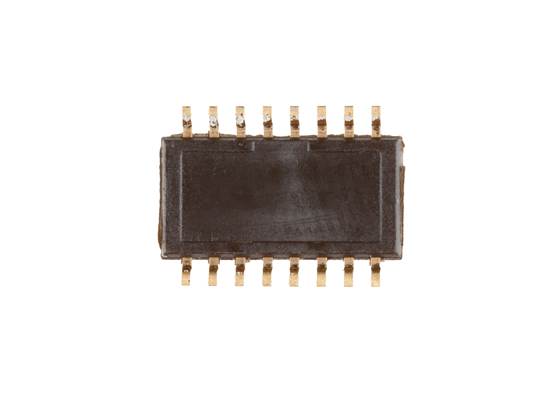

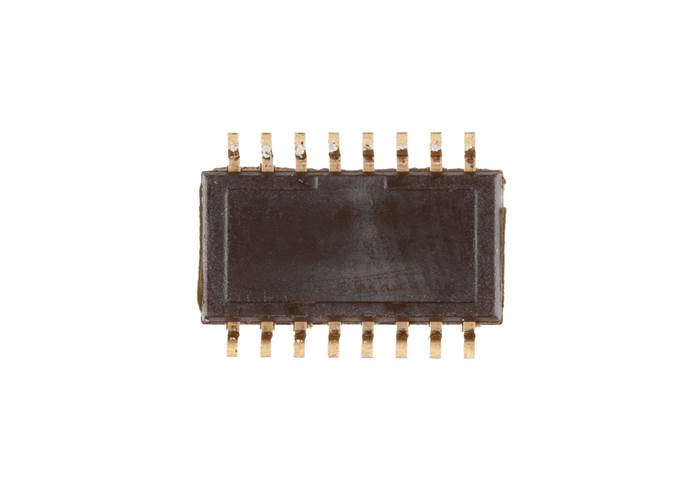

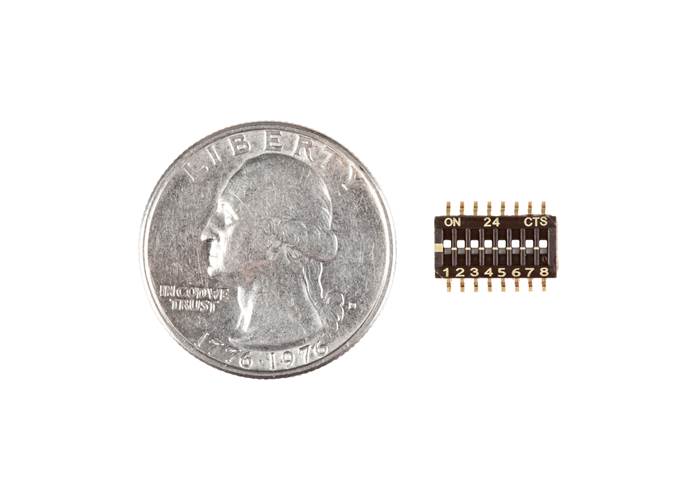

DIP Switch - 8 Position (SMD)

A SMD DIP switch with 8 individual switch positions. Works great as general control switches.

AUD$ 3.00

Special Order

Shipping from $2.90

+1104 more from our supplier in 7-10 days

Our Code: SKU-011274

Supplier Link: [SparkFun MPN:30230]

Description

A SMD DIP switch with 8 individual switch positions. Works great as general control switches.

Specifications

  • Circuit: SPST
  • Number of Positions: 8
  • Current Rating (Amps): 25mA
  • Voltage Rating: 24VDC
  • Actuator Type: Slide (Standard)
  • Actuator Level: Flush, Recessed
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Height Above Board: 0.104" (2.65mm)
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Pitch: 0.050" (1.27mm), Half
  • Washable: Yes
  • Features: Epoxy Sealed Terminals, Tape Seal
  • Operating Temperature: -55°C ~ 85°C
  • Length: 0.446" (11.33mm)
  • Electrical Life: 1,000 Cycles
  • Mfg #: 218-8LPSTR
