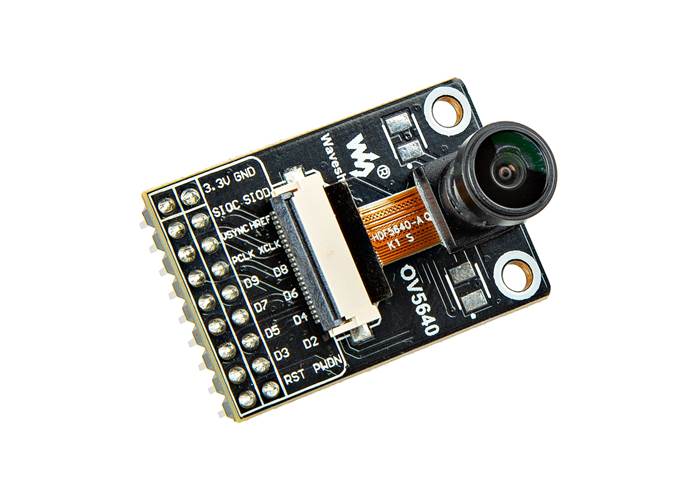

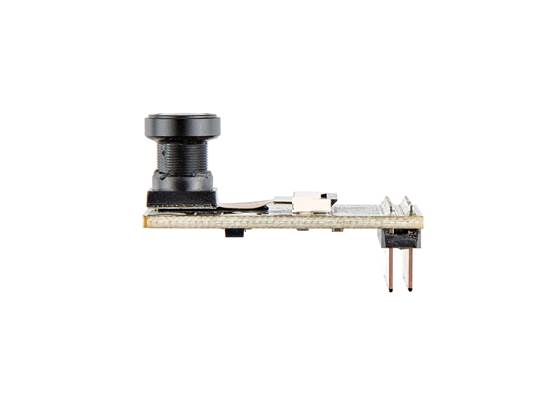

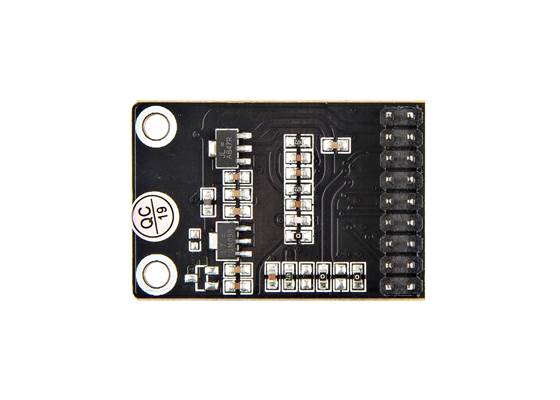

OV5640 Camera Board - 5 Megapixel (2592x1944), Fisheye Lens

Camera Module board based on the OV5640 5MP sensor. This camera has all the support circuitry needed to interface with it and a full set of features and functions.

AUD$ 40.95

Special Order

Shipping from $9.90

+9 more from our supplier in 7-10 days

Our Code: SKU-011034

Supplier Link: [SparkFun MPN:27317]

Description

Camera Module board based on the OV5640 5MP sensor. This camera has all the support circuitry needed to interface with it and a full set of features and functions. Best of all, it's able to interface with some of the newest 32bit microcontrollers like the Raspberry Pi RP line of Microcontrollers and Espressif's ESP32 wireless modules.

Specifications

Pixels: 5 megapixel
Resolution: 2592x1944
Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: colour saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
Lens:
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length: 2.8mm
- Diagonal: 63 degree
Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
Operating Voltage: 3.3V
Control Interface: SCCB (I2C compatible)
Data Interface: DVP 8-bit

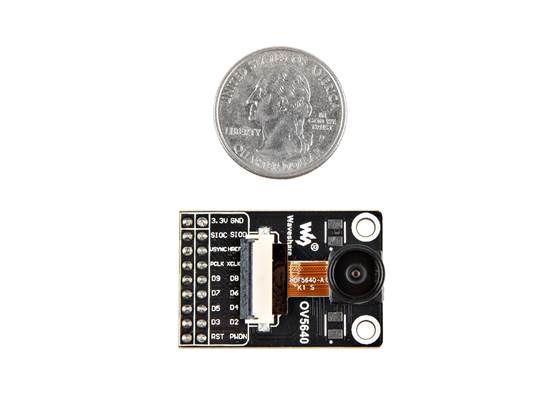

Dimension: 35.70mm × 23.90mm
