Arducam IMX219 Visible Light Fixed Focus Camera Module for NVIDIA® Jetson AGX Orin/Orin Nano/Orin NX

A compact and high-resolution imaging solution tailored for NVIDIA Jetson platforms, including the Jetson Nano, Xavier NX, and the Orin series.

AUD$ 35.95

Special Order

Shipping from $9.90

+17 more from our supplier in 7-10 days

Our Code: SKU-011266

Supplier Link: [SparkFun MPN:28170]

Description

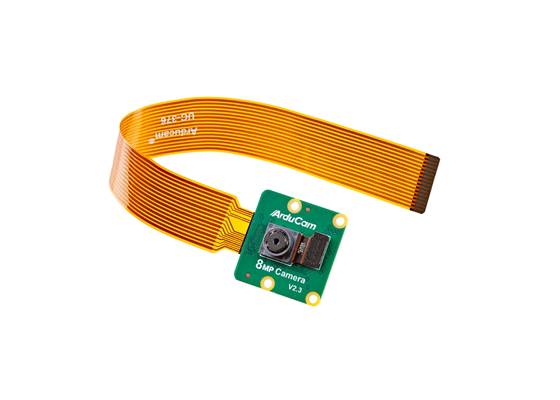

The Arducam IMX219 Fixed Focus Camera Module (B0191) is a compact and high-resolution imaging solution tailored for NVIDIA Jetson platforms, including the Jetson Nano, Xavier NX, and the Orin series. Equipped with Sony’s 8MP IMX219 sensor, it delivers crisp still images at 3280×2464 resolution and supports various video modes, such as 1080p at 30fps and 720p at 60fps. The camera features a 3.04mm focal length lens with a 62.2° diagonal field of view and an integral IR-cut filter, ensuring accurate colour reproduction under visible light. Its MIPI CSI-2 interface facilitates seamless integration, making it ideal for applications like UAVs, drones, robotics, and intelligent video analytics.

Please note that this module is designed for NVIDIA Jetson Developer Kits and may not be compatible with third-party carrier boards.

Specifications

Image Sensor: Sony IMX219, 1/4” CMOS
Resolution: 8 Megapixels (3280 × 2464)
Lens: M12 Mount, Fixed Focus
Focal Length: 3.04mm
Field of View (FOV): 62.2° diagonal
Focus Type: Fixed focus (pre-adjusted for general use)
IR Filter: Integrated IR-cut filter (visible light only)
Interface: MIPI CSI-2 (15-pin ribbon cable)
Video Output:
- 1080p @ 30fps
- 720p @ 60fps
- 640x480 @ 90fps
Direct Compatibility:
- NVIDIA Jetson Nano
- Jetson Xavier NX
- Jetson Orin NX / Orin Nano
- Raspberry Pi Compute Module (via adaptor)
