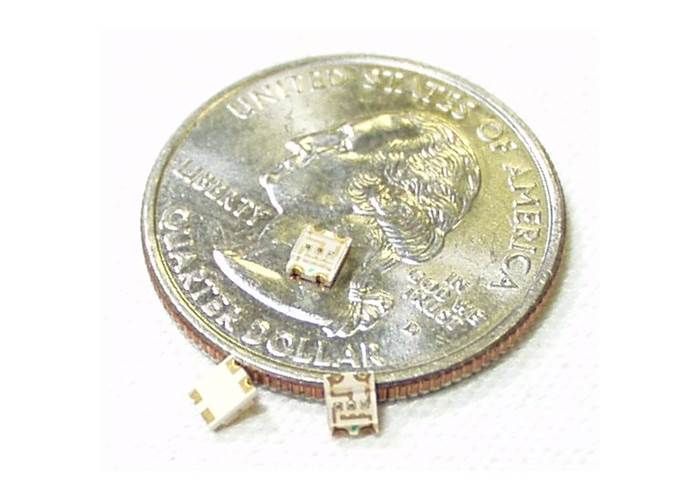

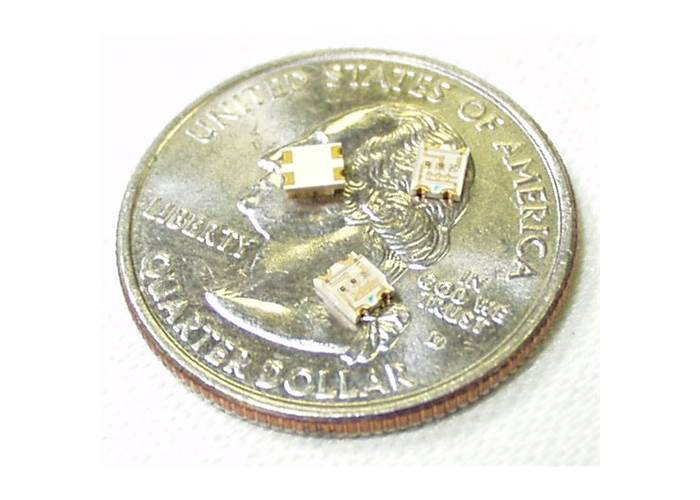

Triple Output LED RGB - SMD

This is the very popular RGB combo but in SMD form. These units have four pads with a common anode configuration. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Simple breakout board available below.

AUD$ 1.30

Special Order

We can ship 85 more in 7 days

Our Code: SKU-000124

Supplier Link: [SparkFun MPN:7844]


Description

This is the very popular RGB combo but in SMD form. These units have four pads with a common anode configuration. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Simple breakout board available below.

Iv (Typical):

  • Red: 81mcd
  • Green: 130mcd
  • Blue: 54mcd

Vf (Typical):

  • Red: 2.0V
  • Green: 3.5V
  • Blue: 3.5V

Wavelength (λD - nm):

  • Red: 615nm
  • Green: 530nm
  • Blue: 470nm
