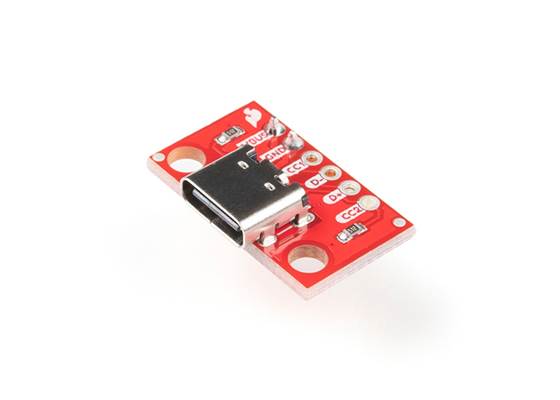

The SparkFun USB-C Breakout supplies up to 3 times the power as previous USB board while breaking out each pin on the connector with any SMD soldering.
Special Order
Shipping from $4.90
+911 more from our supplier in 7-10 days
Our Code: SKU-010668
Supplier Link: [SparkFun MPN:16998]
With this USB breakout, you can incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations. Also, it solves the universally frustrating dilemma of plugging a USB cable in correctly because it's reversible!

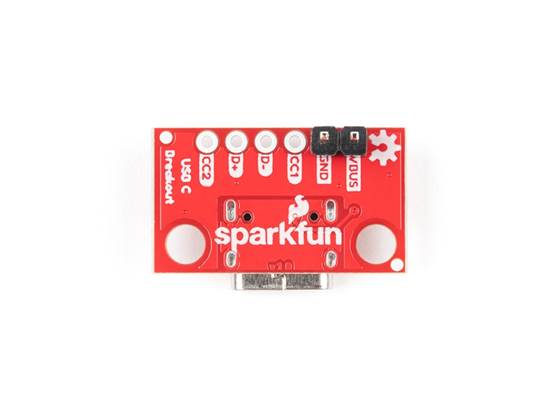

This board breaks out the USB-C connector's VBUS, GND, CC1, CC2, D+, and D- pins into a 0.1" pitch header (to VBUS and GND) while providing up to a nominal 1.5A of power and up to 3A, depending on the upstream device.
