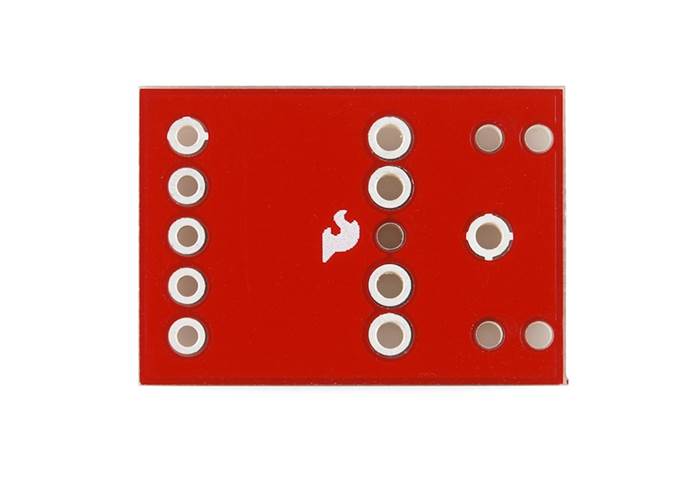

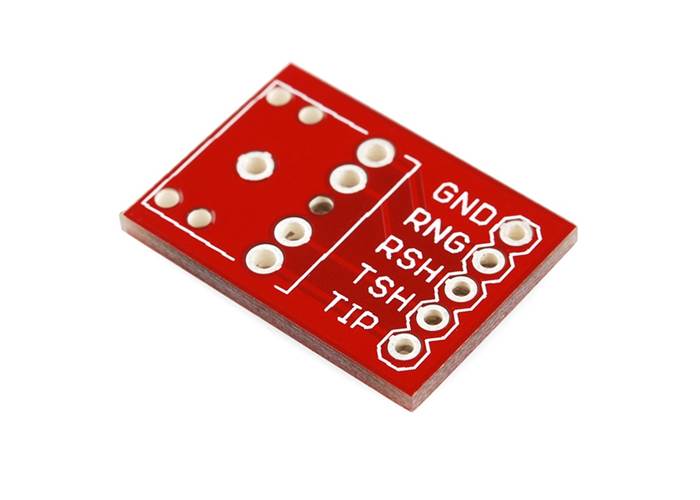

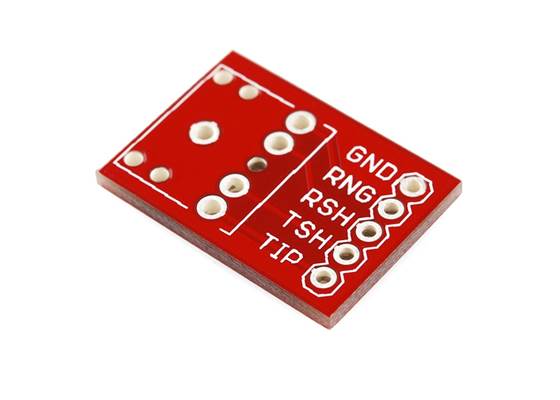

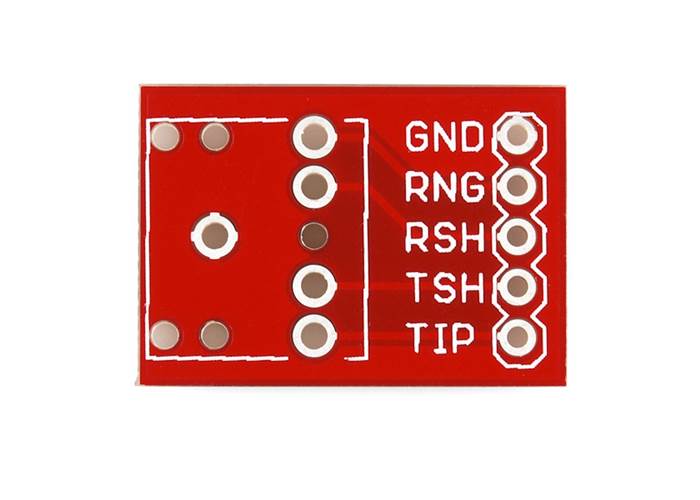

SparkFun Audio Jack Breakout

Simple breakout board for the 3.5mm audio jack. Use this breakout (shipped bare) to allow breadboard or SIP access to the super-common 3.5mm audio jack. All five pins are broken out. Note: You get the bare PCB only, check below for the Audio Jack. Documents: Schematic Eagle Files GitHub

AUD$ 1.10

Special Order

We can ship 203 more in 7 days

Our Code: SKU-000726

Supplier Link: [SparkFun MPN:10588]


Description

Simple breakout board for the 3.5mm audio jack. Use this breakout (shipped bare) to allow breadboard or SIP access to the super-common 3.5mm audio jack. All five pins are broken out.

Note: You get the bare PCB only, check below for the Audio Jack.
