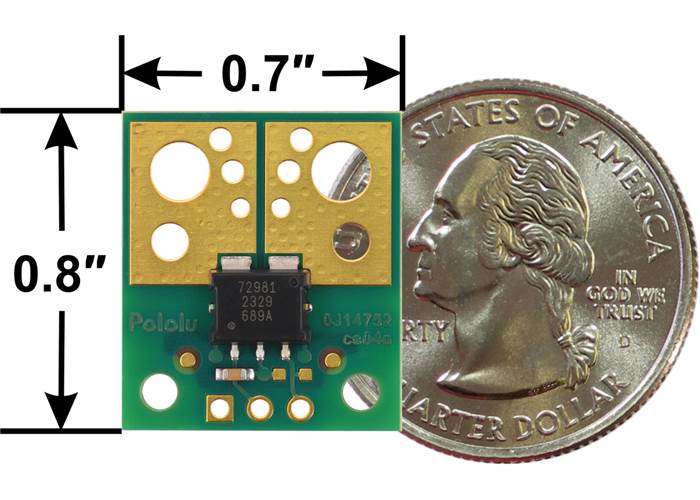

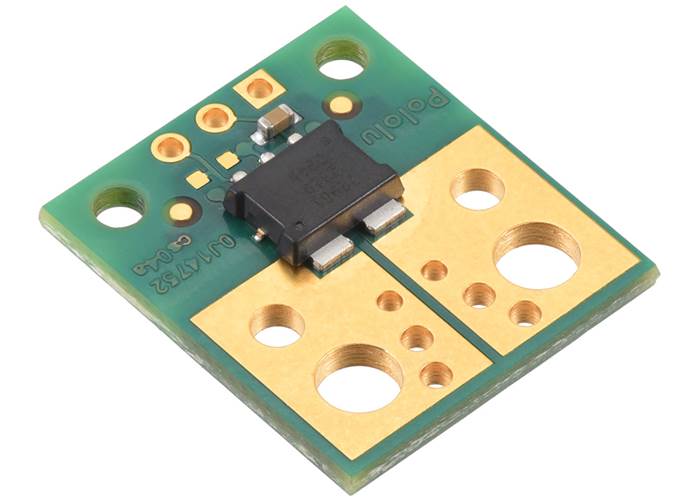

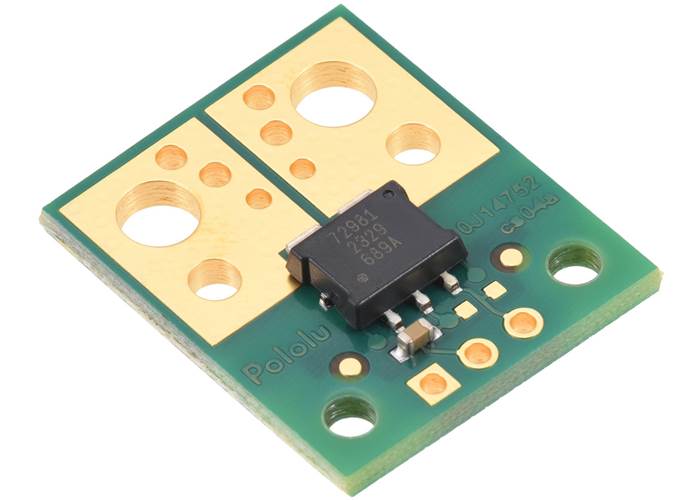

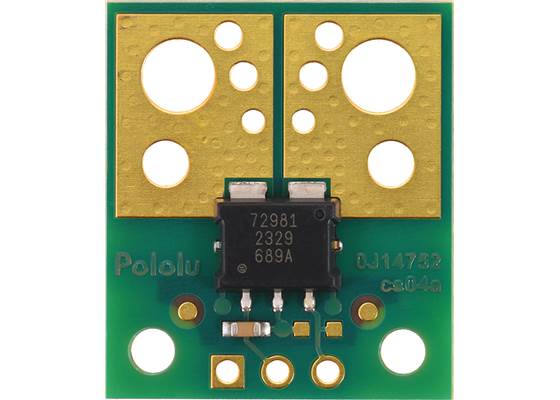

This board is a simple compact carrier of Allegro’s ACS72981LLRATR-100B3 Hall effect-based linear current sensor, which offers a low-resistance (~0.2 mΩ) current path and a high 250 kHz bandwidth for fast response times.
Special Order
Shipping from $7.90
+225 more from our supplier in 7-10 days
Our Code: SKU-010539
Supplier Link: [Pololu MPN:5253]
We are offering these compact breakout boards with support from Allegro Microsystems as an easy way to use or evaluate their ACS72981xLR Hall effect-based linear current sensors; we therefore recommend careful reading of the ACS72981 datasheet before using this product. The following list details some of the sensor’s key features:

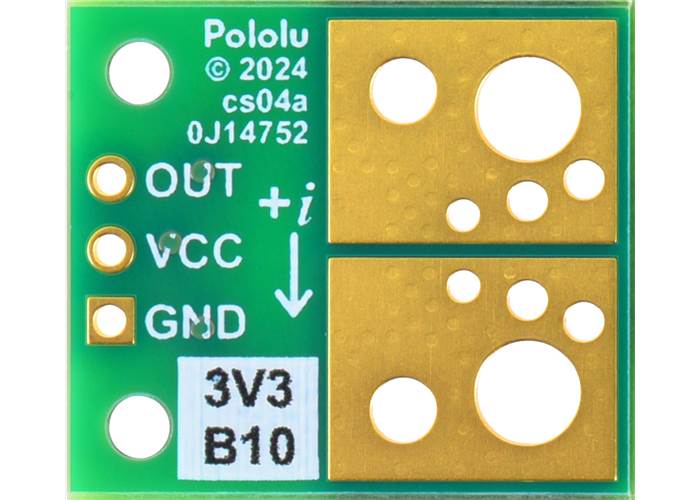

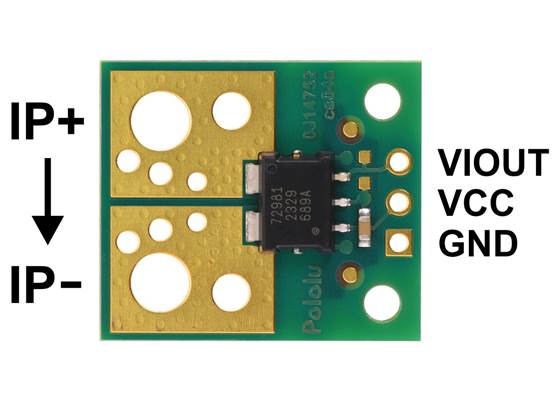

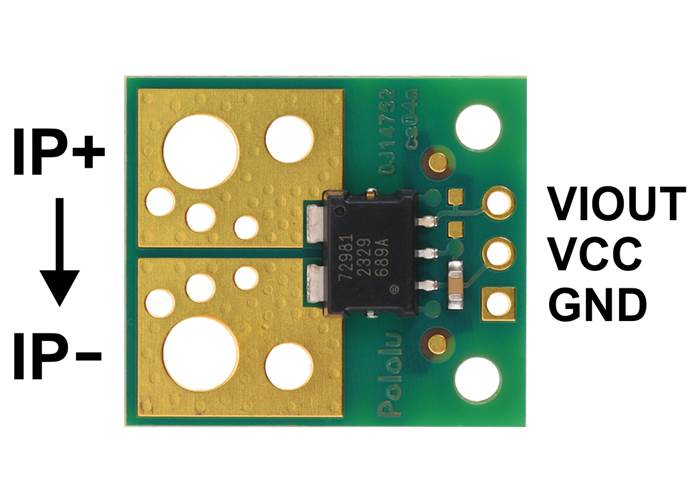

The pads are labelled on the bottom silkscreen. The silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.
The following table lists the available ACS72981 carrier options:
Pololu Item # |
Part Suffix | Supply Voltage | Current Range | Sensitivity @ Nominal Vcc |
Zero Point @ Nominal Vcc |
Size | |
---|---|---|---|---|---|---|---|
#5250 | 050B3 | 3.0 V to 3.6 V (3.3 V nominal) |
Bidirectional | ±50 A | 26.4 mV/A | 1.65 V | 0.7″×0.8″ (compact carrier) |
#5253 | 100B3 | ±100 A | 13.2 mV/A | ||||
#5257 | 150B3 | ±150 A | 8.8 mV/A | ||||
#5252 | 050U3 | Unidirectional | 0-50 A | 52.8 mV/A | 0.33 V | ||
#5255 | 100U3 | 0-100 A | 26.4 mV/A | ||||
#5259 | 150U3 | 0-150 A | 17.6 mV/A | ||||
#5251 | 050B5 | 4.5 V to 5.5 V (5 V nominal) |
Bidirectional | ±50 A | 40 mV/A | 2.5 V | |
#5256 | 100U5 | Unidirectional | 0-100 A | 40 mV/A | 0.5 V |

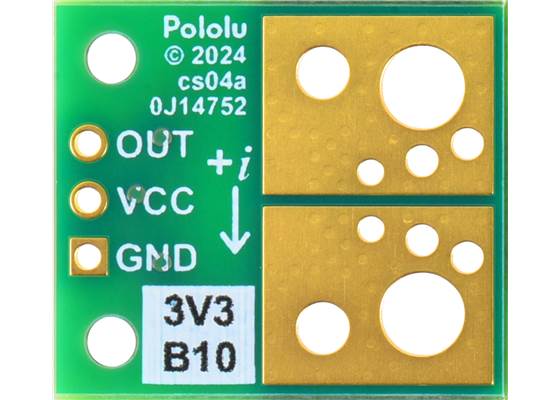

This compact carrier features the ACS72981LLRATR-100B3, which is intended for nominal 3.3 V operation and is designed for bidirectional input current from -100 A to +100 A. This version can be visually distinguished from the other versions by the “3V3 B10” printed on the bottom side, as shown in the left picture above.
Part Suffix | Range | Supply Voltage | Sensitivity @ 3.3 V | Zero Point @ 3.3 V | Size |
---|---|---|---|---|---|
100B3 | ±100 A (bidirectional) | 3.0 V to 3.6 V | 13.2 mV/A | 1.65 V | 0.7″×0.8″ |

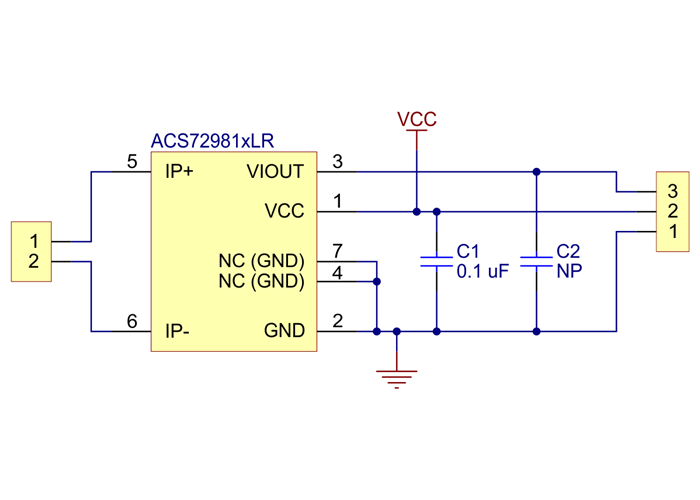

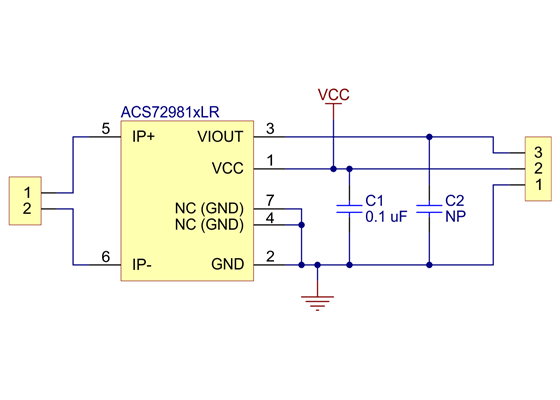

This sensor has five required connections: the input current (IP+ and IP-), logic power (VCC and GND), and the sensor output (VIOUT).
The sensor requires a supply voltage of 3.0 V to 3.6 V to be connected across the VCC and GND pads, which are labelled on the bottom silkscreen. The sensor outputs a ratiometric analogue voltage on VIOUT that is centred at VCC/2 and changes by 13.2 mV × (VCC/3.3 V) per amp of input current, with positive current increasing the output voltage and negative current decreasing the output voltage:
``text(VIOUT) = text(VCC) / 2 + 0.0132 V/A * text(VCC) / (3.3 V) * text(IP) = text(VCC) * (1/2 + text(IP) / (250 A))``
``text(IP) = 250A * (text(VIOUT) / text(VCC) – 1/2)``
The VIOUT, VCC, and GND pins work with 0.1″-pitch header pins and are compatible with standard solderless breadboards.

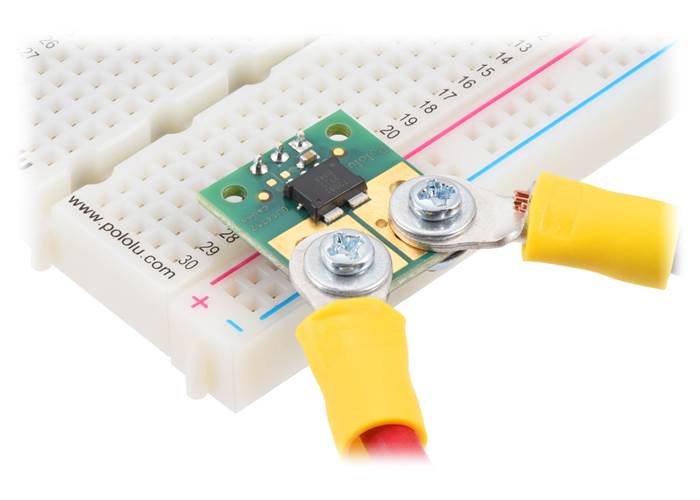

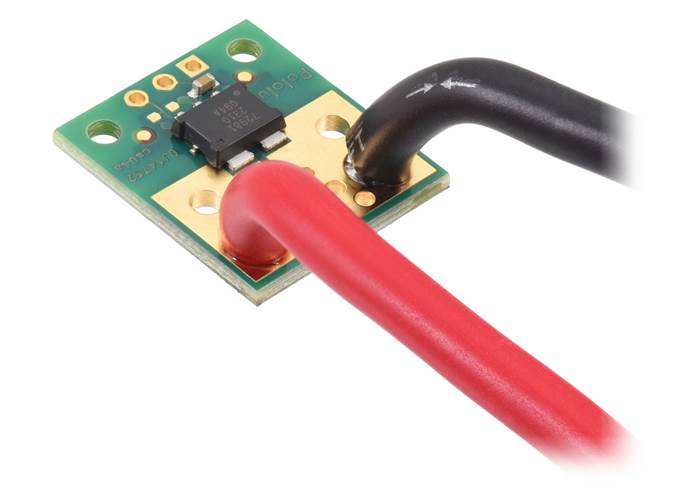

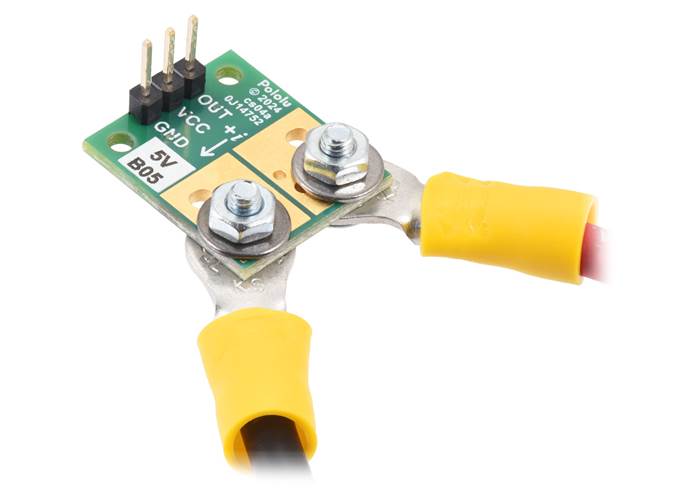

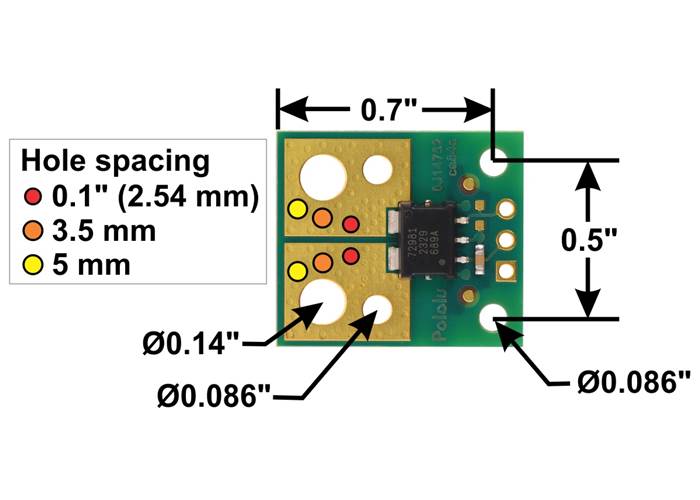

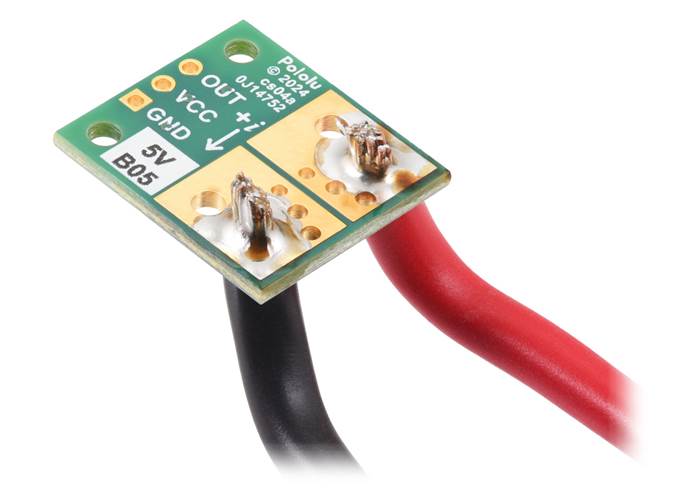

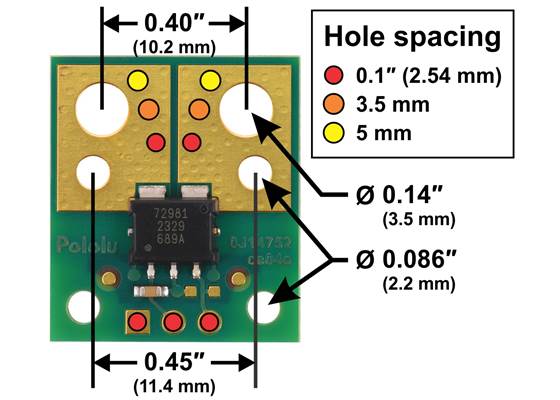

You can insert the board into your current path in a variety of ways. For typical high-current applications, you can solder wires directly to the through-holes that best match your wires, or you can use solderless ring terminal connectors, as shown in the pictures below. The largest through-holes are big enough for 8 AWG wires or #6 or M3.5 screws, and the second-largest through-holes (and mounting holes) are sized for 12 AWG wires or #2 or M2 screws. Holes with 0.1″, 3.5 mm, and 5 mm spacing are also available as shown in the diagram above for connecting male header pins or terminal blocks, but please note that these connection options will generally not be suitable for the kinds of currents this sensor is intended for.
Warning: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and experience.
The dimension diagram is available as a downloadable PDF (264k pdf).

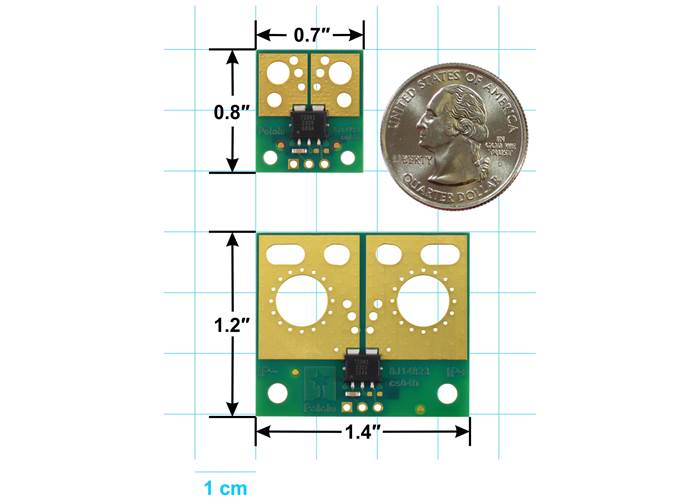

We have a variety of current sensors available with different ranges, sensitivities, and features. The table below summarizes our selection of active and preferred options:
ACS711 CurrentSensor Carriers |
ACS71240 CurrentSensor Carriers |
ACS724 CurrentSensor Carriers |
ACS72981Current SensorCompact Carriers |
|
---|---|---|---|---|
Sensor IC: | Allegro ACS711KEXT |
Allegro ACS71240 |
Allegro ACS724LLCTR |
Allegro ACS72981xLR |
Vcc range: | 3 V–5.5 V | 3.3V ver.: 3.0 V–3.6 V 5V ver.: 4.5 V–5.5 V |
4.5 V–5.5 V | 3.3V ver.: 3.0 V–3.6 V 5V ver.: 4.5 V–5.5 V |
Current range / sensitivity: |
Bidirectional:(1) ±15.5 A / 90 mV/A ±31 A / 45 mV/A |
3.3V Bidirectional: ±10 A / 132 mV/A ±30 A / 44 mV/A ±50 A / 26.4 mV/A 5V Unidirectional: 0–50 A / 80 mv/A |
5V Bidirectional:(2) ±2.5 A / 800 mV/A ±5 A / 400 mV/A ±10 A / 200 mV/A ±20 A / 100 mV/A ±30 A / 66 mV/A ±50 A / 40 mV/A 5V Unidirectional:(2) 0–5 A / 800 mv/A 0–10 A / 400 mv/A 0–20 A / 200 mv/A 0–30 A / 133 mV/A |
3.3V Bidirectional:(1) ±50 A / 26.4 mV/A ±100 A / 13.2 mV/A ±150 A / 8.8 mV/A 3.3V Unidirectional:(1) 0–50 A / 52.8 mv/A 0–100 A / 26.4 mv/A 0–150 A / 17.6 mv/A 5V Bidirectional:(2) ±50 A / 40 mV/A 5V Unidirectional:(2) 0–100 A / 40 mv/A |
IC path resistance: | 0.6 mΩ | 0.6 mΩ | 0.6 mΩ | 0.2 mΩ |
Max bandwidth: | 100 kHz | 120 kHz | 120 kHz(3) | 250 kHz |
Size: | 0.7″ × 0.8″ | 0.7″ × 0.8″ | 0.7″ × 0.8″ | 0.7″ × 0.8″ |
Overcurrent fault output | ||||
Differential sensing | ||||
Non-ratiometric output | ||||
1-piece price: | $3.49 | $3.95 | $6.95 – $7.49 | $9.95 |
(1) Sensitivity when Vcc = 3.3 V; sensitivity is ratiometric. | ||||
(2) Sensitivity when Vcc = 5 V; sensitivity is ratiometric. | ||||
(3) Bandwidth can be reduced by adding a filter capacitor. |
Size: | 0.7" × 0.8" |
---|---|
Weight: | 1.4 g |
Typical operating voltage: | 3.3 V |
---|---|
Current sense: | 13.2 mV/A1 |
Minimum logic voltage: | 3.0 V |
Maximum logic voltage: | 3.6 V |
Supply current: | 14 mA2 |
Version: | -100A to +100A (bidirectional 100A), 3.3V |
Current sensor: | Allegro ACS72981LLRATR-100B3 |
PCB dev codes: | cs04a |
---|---|
Other PCB markings: | 0J14752 |
Other PCB markings: | 3V3 B10 |
This DXF drawing shows the locations of all of the board’s holes.
This is the application note referenced on page 16 of the ACS724 datasheet, page 22 of the ACS71240 datasheet, and page 42 of the ACS72981xLR datasheet. The ACS720 is used validate the test methods presented, but these same methods and principles would also apply to the ACS724, ACS71240, and ACS72981.
Allegro product page for the ACS72981, where you can find additional application notes and other resources.
