ACS71240KEXBLT-050U5 Current Sensor Carrier 0A to 50A, 5V

This board is a simple carrier of Allegro’s ACS71240KEXBLT-050U5 Hall effect-based linear current sensor, which offers a low-resistance (~0.6 mΩ) current path and a high 120 kHz bandwidth for fast response times.

AUD$ 5.95

Special Order

Shipping from $7.90

+150 more from our supplier in 7-10 days

Our Code: SKU-010530

Supplier Link: [Pololu MPN:5246]


Description

Overview

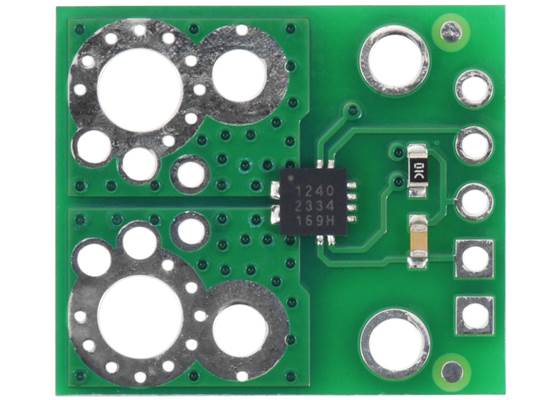

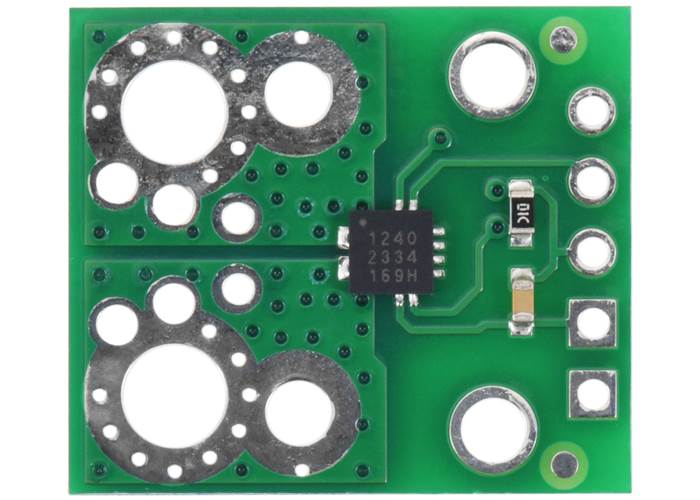

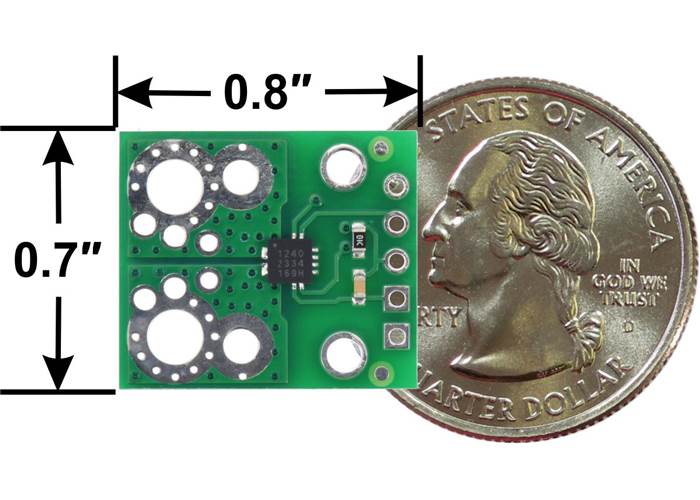

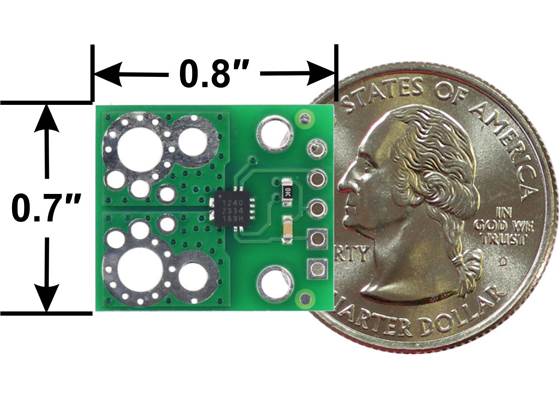

ACS71240 Current Sensor Carrier basic dimensions with US quarter for size reference.

We are offering these breakout boards with support from Allegro Microsystems as an easy way to use or evaluate their ACS71240 Hall effect-based linear current sensors; we therefore recommend careful reading of the ACS71240 datasheet before using this product. The following list details some of the sensor’s key features:

  • Differential Hall sensing rejects common-mode fields, so the orientation of the sensor relative to uniform external magnetic fields (e.g. the Earth’s magnetic field) has less effect on the measurement.
  • The conductive path internal resistance is typically 0.6 mΩ, and the PCB is made with 2-oz copper, so very little power is lost in the module.
  • Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor’s electronics, which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
  • High-bandwidth 120 kHz analogue output voltage proportional to AC or DC currents.
  • Overcurrent fault output with 1.5 µs response time indicates when the current exceeds the optimised sensing range.
  • Output is not ratiometric (i.e. the zero point and sensitivity are independent of the actual supply voltage), which provides immunity from noisy supplies.
  • Integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor.
  • Automotive-grade operating temperature range of -40°C to 125°C.
  • 0.7″×0.8″ carrier board offers a variety of ways to insert it into the current path and 0.1″-pitch (breadboard compatible) power, ground, and output pins.

The pads are labelled on the bottom silkscreen. The silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.

Details for item #5246

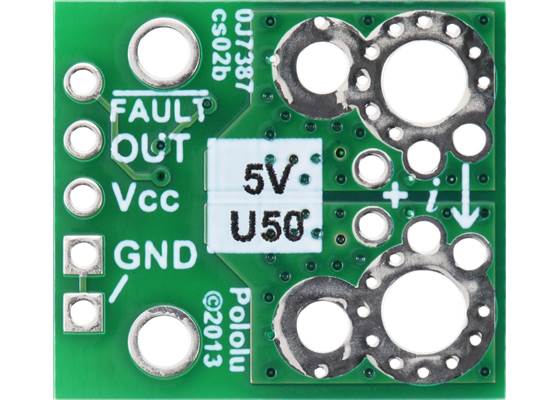

ACS71240KEXBLT-050U5 Current Sensor Carrier 0A to 50A, 5V, bottom view.

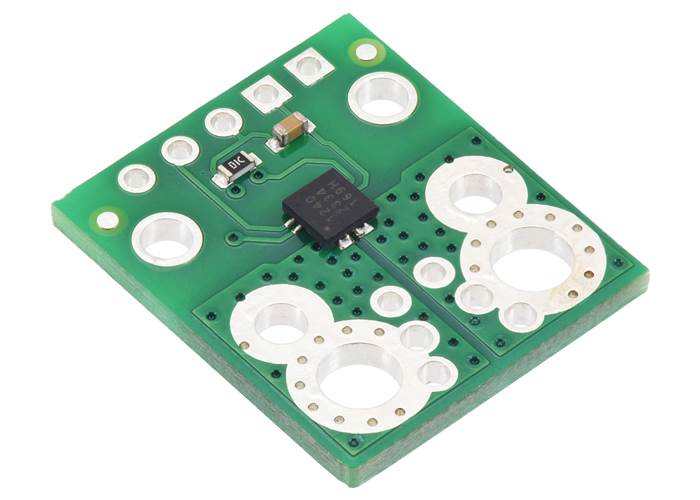

ACS71240 Current Sensor Carrier.

This carrier features the ACS71240KEXBLT-050U5, which is intended for operation around 5 V and is designed for unidirectional input current from 0 A to 50 A. This version can be visually distinguished from the other versions by the “5V U50” printed on the bottom side, as shown in the left picture above.

Part Suffix Range Supply Voltage Sensitivity Zero Point Fault Trip Level
050U5 0-50 A (unidirectional) 4.5 V to 5.5 V 80 mV/A 0.5 V 50 A

Using the sensor

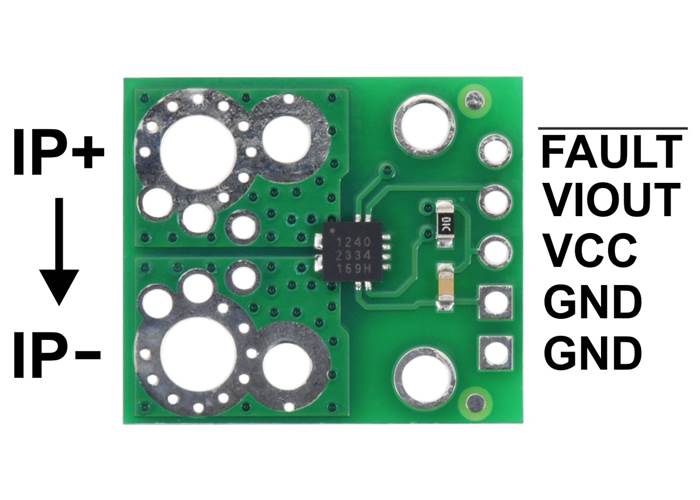

ACS71240 Current Sensor Carrier pinout.

This sensor has five required connections: the input current (IP+ and IP-), logic power (VCC and GND), and the sensor output (VIOUT).

The sensor requires a supply voltage of 4.5 V to 5.5 V to be connected across the VCC and GND pads, which are labelled on the bottom silkscreen. The sensor outputs an analogue voltage on VIOUT that has a zero point at 0.5 V and increases by 80 mV per amp of input current:

``text(VIOUT) = 0.5 V + 0.08 V/A * text(IP)``

``text(IP) = (text(VIOUT) – 0.5 V) / (0.08 V/A) = (text(VIOUT) – 0.5 V) * 12.5 A/V ``

The output is not ratiometric, so the zero point and sensitivity are independent of the actual supply voltage.

The optional FAULT pin is normally at VCC and is pulled low when the IP current exceeds 50 A. This pin only asserts while the fault condition is present (it is not latched).

The FAULT, VIOUT, VCC, and GND pins work with 0.1″-pitch header pins and are compatible with standard solderless breadboards.

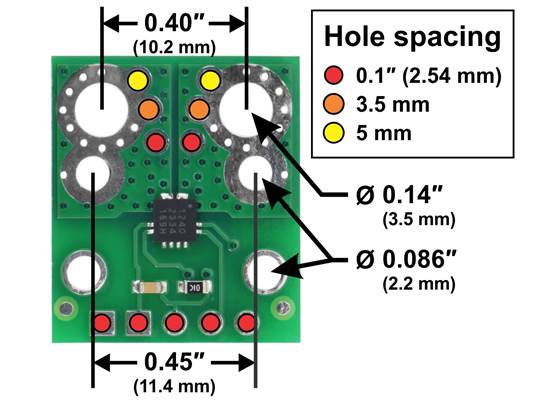

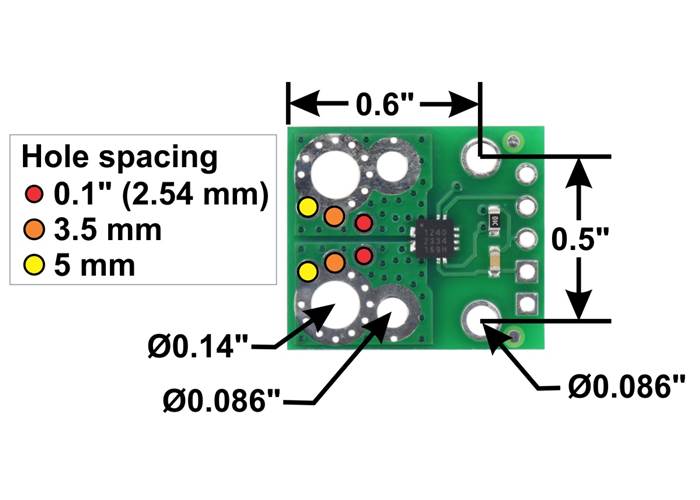

ACS71240 Current Sensor Carrier basic dimensions of current path connection holes and mounting holes.

You can insert the board into your current path in a variety of ways. Holes with 0.1″, 3.5 mm, and 5 mm spacing are available as shown in the diagram above for connecting male header pins or terminal blocks. For high-current applications, you can solder wires directly to the through-holes that best match your wires, or you can use solderless ring terminal connectors. The largest through-holes are big enough for 8 AWG wires or #6 or M3.5 screws, and the second-largest through-holes (and mounting holes) are sized for 12 AWG wires or #2 or M2 screws. The pictures below show some of the possible connection options:

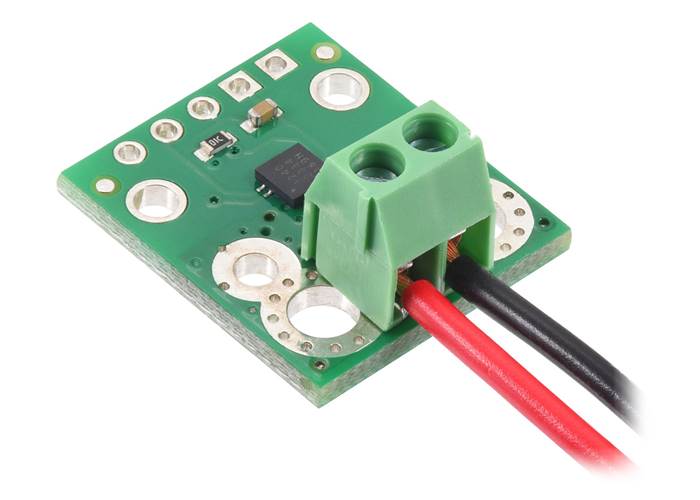

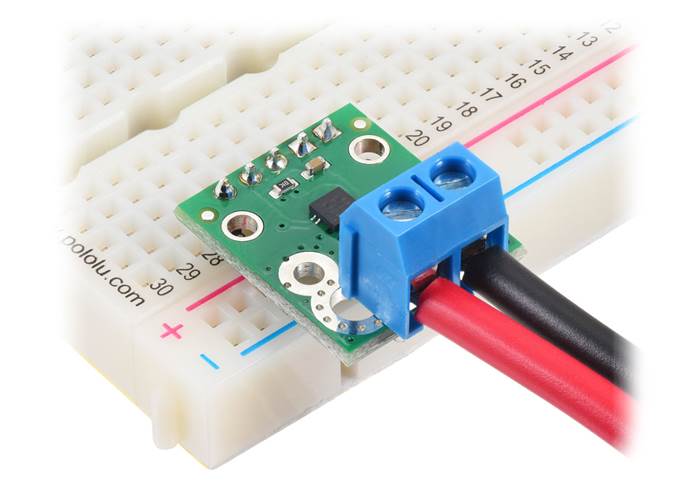

ACS71240 Current Sensor Carrier with a 5mm-pitch terminal block for the current path and header pins soldered for use with a breadboard.

ACS71240 Current Sensor Carrier with a 3.5mm-pitch terminal block for the current path.

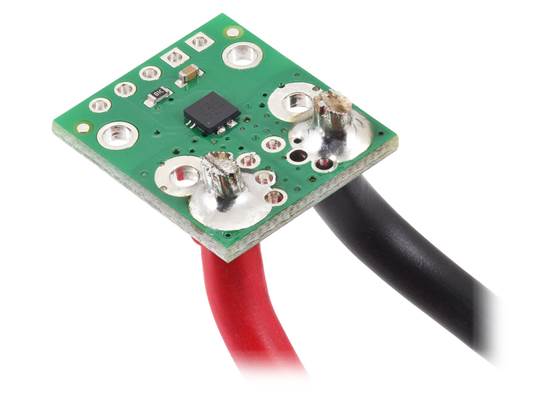

ACS71240 Current Sensor Carrier with wires soldered directly to the board.

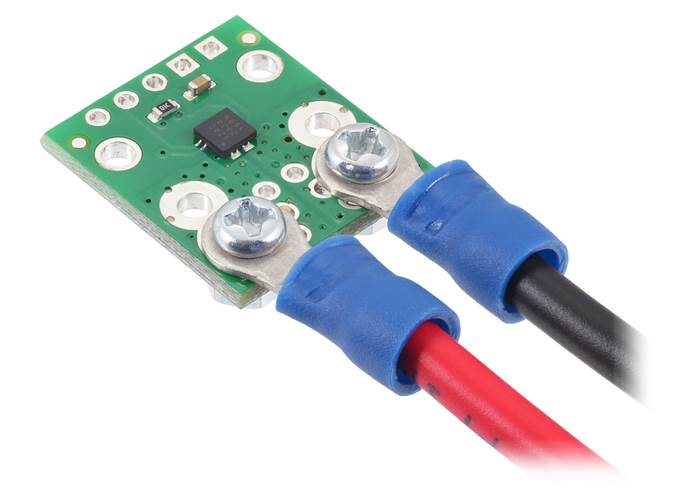

ACS71240 Current Sensor Carrier with wires connected via solderless ring terminals.

Warning: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and experience.

Schematic and dimension diagrams

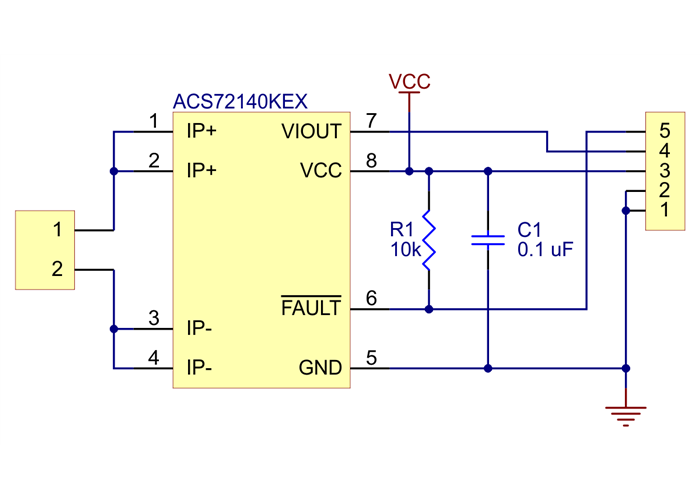

ACS72140 current sensor carrier schematic diagram.

The dimension diagram is available as a downloadable PDF (274k pdf).

Comparison of the Pololu current sensor carriers

We have a variety of current sensors available with different ranges, sensitivities, and features. The table below summarizes our selection of active and preferred options:


ACS711 CurrentSensor Carriers

ACS71240 CurrentSensor Carriers

ACS724 CurrentSensor Carriers

ACS72981 CurrentSensor Carriers
Sensor IC: Allegro
ACS711KEXT
Allegro
ACS71240
Allegro
ACS724LLCTR
Allegro
ACS72981xLR
Vcc range: 3 V–5.5 V 3.3V versions: 3.0 V–3.6 V
5V versions: 4.5 V–5.5 V
4.5 V–5.5 V 3.3V versions: 3.0 V–3.6 V
5V versions: 4.5 V–5.5 V
Current range /
sensitivity:
Bidirectional:(1)
±15.5 A / 90 mV/A
±31 A / 45 mV/A
3.3V Bidirectional:
±10 A / 132 mV/A
±30 A / 44 mV/A
±50 A / 26.4 mV/A

5V Unidirectional:
0–⁠50 A / 80 mv/A

5V Bidirectional:(2)
±2.5 A / 800 mV/A
±5 A / 400 mV/A
±10 A / 200 mV/A
±20 A / 100 mV/A
±30 A / 66 mV/A
±50 A / 40 mV/A

5V Unidirectional:(2)
0–⁠5 A / 800 mv/A
0–⁠10 A / 400 mv/A
0–⁠20 A / 200 mv/A
0–⁠30 A / 133 mV/A

3.3V Bidirectional:(1)
±50 A / 26.4 mV/A
±150 A / 8.8 mV/A

3.3V Unidirectional:(1)
0–⁠50 A / 52.8 mv/A
0–⁠100 A / 26.4 mv/A

5V Bidirectional:(2)
±50 A / 40 mV/A

5V Unidirectional:(2)
0–⁠100 A / 40 mv/A
IC path resistance: 0.6 mΩ 0.6 mΩ 0.6 mΩ 0.2 mΩ
Max bandwidth: 100 kHz 120 kHz 120 kHz(3) 250 kHz
Size: 0.7″ × 0.8″ 0.7″ × 0.8″ 0.7″ × 0.8″ 0.7″ × 0.8″
Overcurrent fault output
Differential sensing
Non-ratiometric output
1-piece price: $3.49 $3.95 $6.95$7.49 $9.95
(1) Sensitivity when Vcc = 3.3 V; sensitivity is ratiometric.
(2) Sensitivity when Vcc = 5 V; sensitivity is ratiometric.
(3) Bandwidth can be reduced by adding a filter capacitor.

Specifications

Dimensions

Size: 0.7" x 0.8"
Weight: 1.1 g

General specifications

Typical operating voltage: 5 V
Current sense: 80 mV/A
Minimum logic voltage: 4.5 V
Maximum logic voltage: 5.5 V
Supply current: 12 mA1
Version: 0A to 50A (unidirectional 50A), 5V
Current sensor: Allegro ACS71240KEXBLT-050U5

Identifying markings

PCB dev codes: cs02b
Other PCB markings: 0J7387
Other PCB markings: 5V U50

Notes:

1
