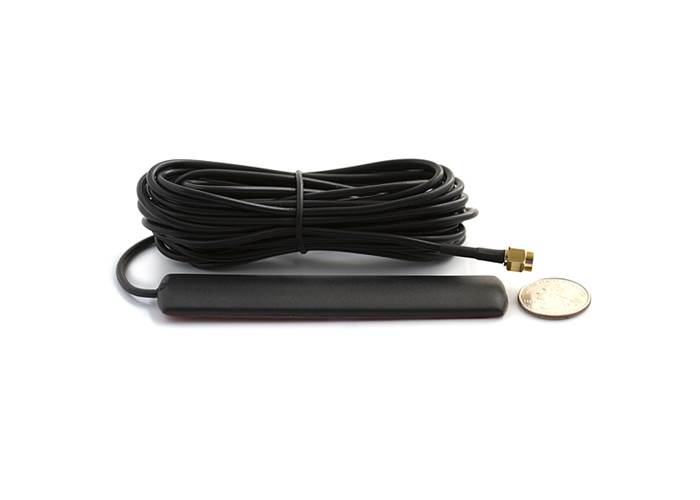

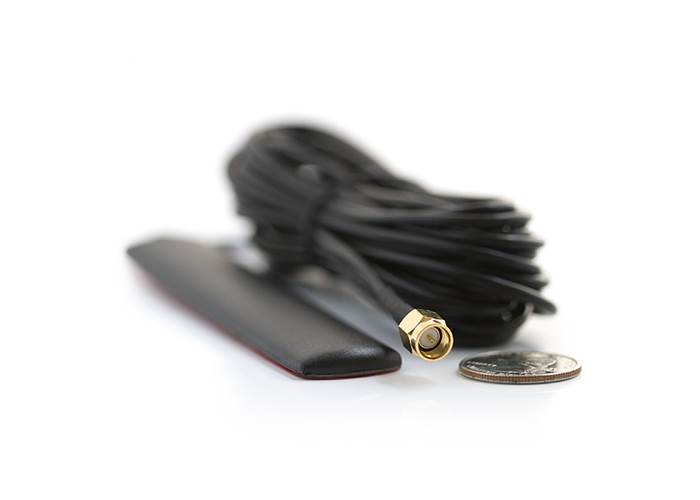

Quad-band Wired Cellular Antenna SMA

A Quad-band antenna for embedded cellular devices. This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.

Key Specifications:

• Quad-band: 850/900/1800/1900MHz and 2.4GHz
• For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
• Cable with RG174A/U - 3m long
• Connector: SMA

Electrical Properties:

• Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz
• Impedance: 50 Ohm nominal
• VSWR: <2.0 : 1
• Gain: 3.5dBi
• Radiation: Omni
• Polarization: Vertical
• Wave: Half Wave Dipole

Mechanical Properties:

• Size: 115x22x4mm
• Connector SMA (Male) standard
• Cable: RG174
• Cable length: 3m
• Over-mold housing: ABS Black
• Mounting: Adhesive backing
• Operation Temperature: -40 to +85C
