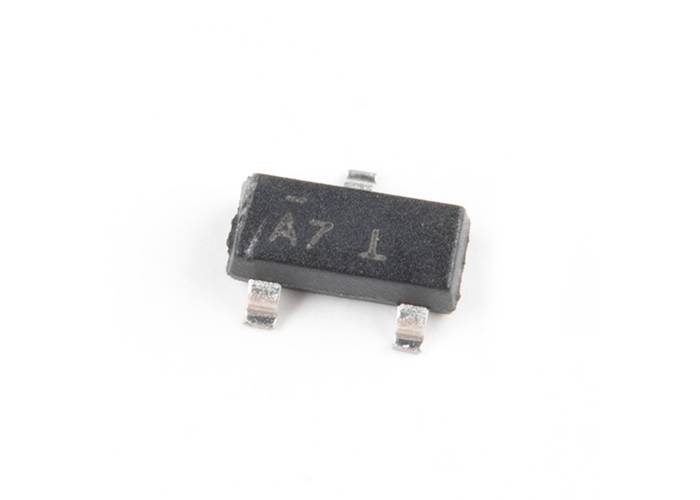

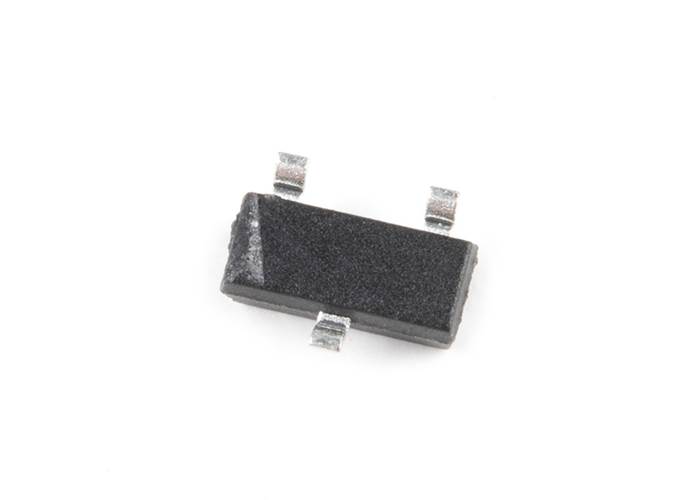

Switching Diode - BAV99

The BAV99 is a 350mW high-speed switching diode array with series-pair diode configuration. It achieves high-current conductivity, up to 200mA, in a very small 7mm² footprint.

• Diode Configuration: 1 Pair Series Connection
• Voltage - DC Reverse (Vr) (Max): 70 V
• Current - Average Rectified (Io) (per Diode): 200mA
• Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
• Speed: Small Signal =< 200mA (Io), Any Speed
• Reverse Recovery Time (trr): 6 ns
• Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
• Operating Temperature - Junction: -55°C ~ 150°C

• Datasheet
