The SparkFun 5V BabyBuck Regulator Breakout features the AP63357 from Diodes Inc., a 3.5A synchronous buck converter with a wide input voltage range of 3.8V to 32V.
In stock in Australia
Shipping from $2.90
Our Code: SKU-009987
Supplier Link: [SparkFun MPN:21256]
The SparkFun 5V BabyBuck Regulator Breakout features the AP63357 from Diodes Inc., a 3.5A synchronous buck converter with a wide input voltage range of 3.8V to 32V. The fully integrated 74mΩ high-side power MOSFET/40mΩ low-side power MOSFET provides a high-efficiency step-down DC/DC conversion.

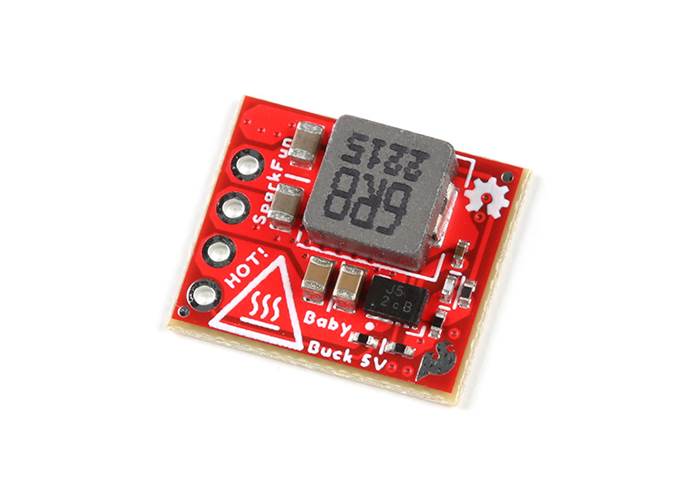

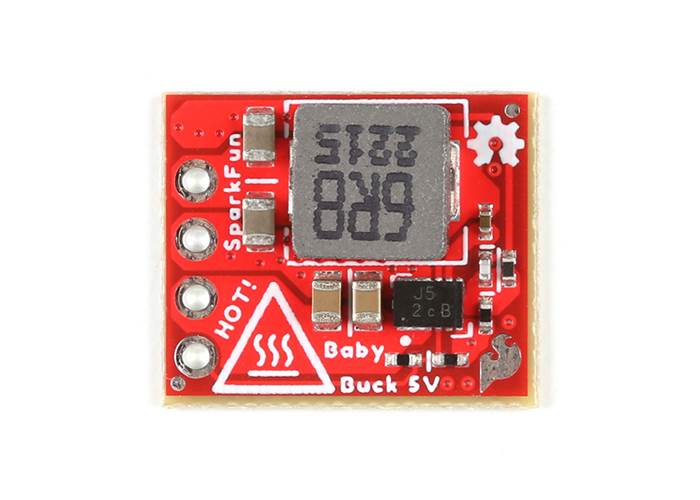

The BabyBuck regulator is a minimalistic version of our buck regulator boards. This board is configured to provide a regulated 5V output and features a high-voltage EN

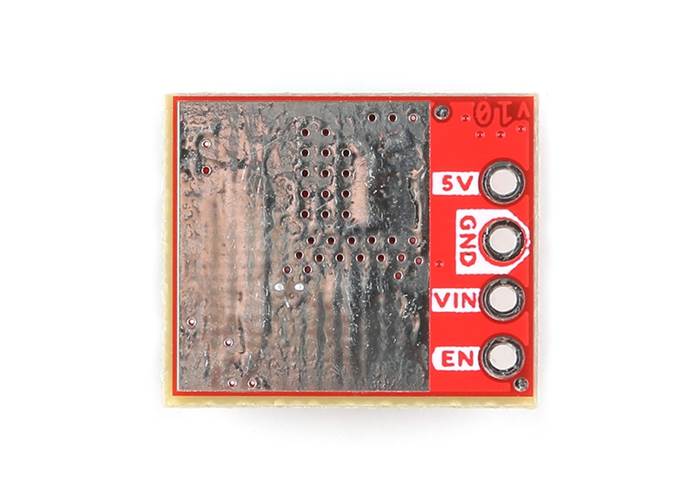

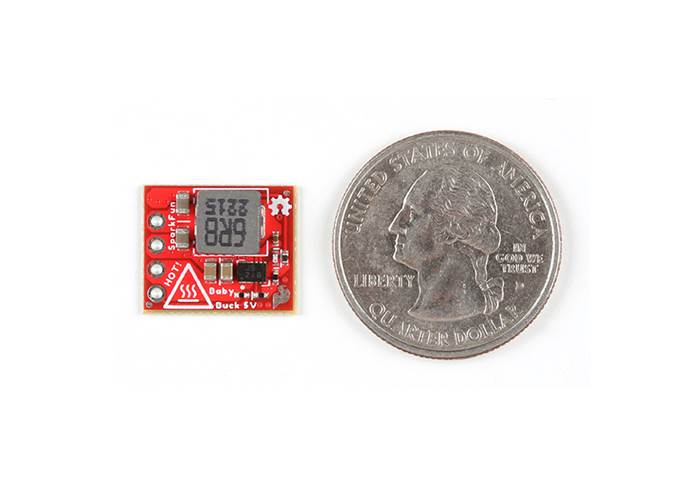

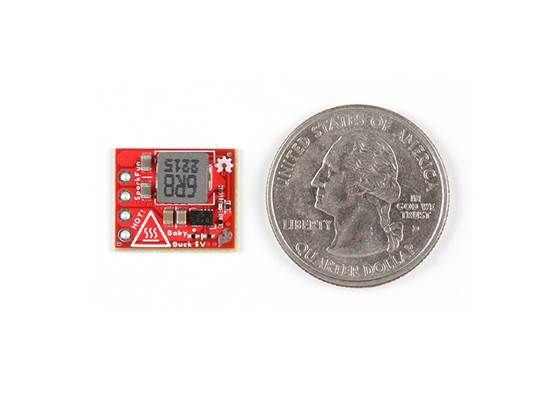

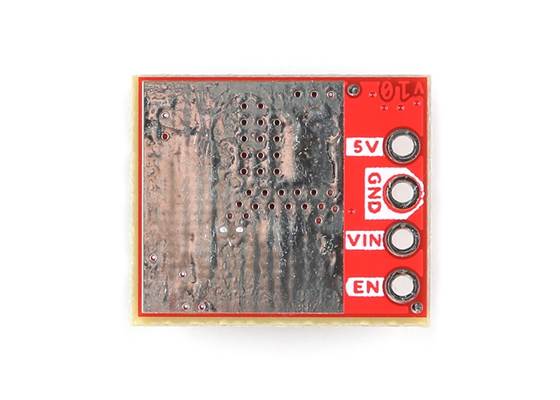

(enable) control pin that is rated up to 32V. On the back of the board, a small copper pad is available to dissipate excess heat with a heat sink. With only four PTH pins for connecting input and output power, everything fits on a mere 0.63in. x 0.52in. board layout.
Check out the SparkFun Buck Regulator Breakout - 5V (AP63357), for the larger, full-feature version of this board.
Note: While the AP63357 is rated up to a 3.5A output, users should expect a 3A maximum with our boards due to thermal constraints. The boards can output 3.5A but would require a sufficient amount of active cooling.
BabyBuck Board Features:
VIN
- Power In (6V to 32V)GND
- Common GroundVOUT
- Power Out (Regulated 5V)EN
- Enable (Pull high to enable the power output)AP63357 Features:
