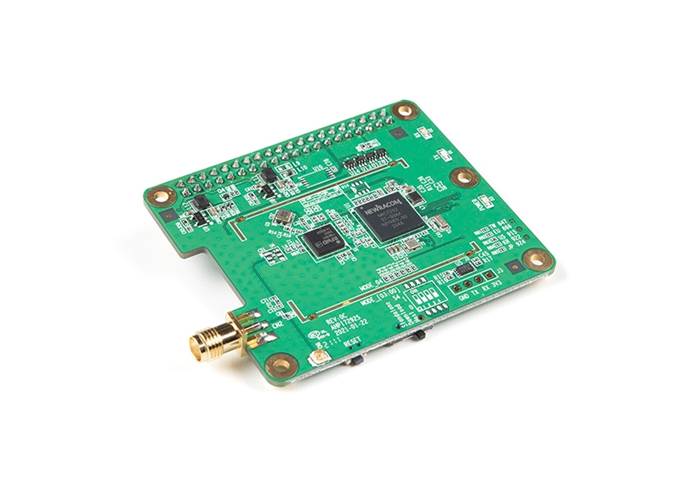

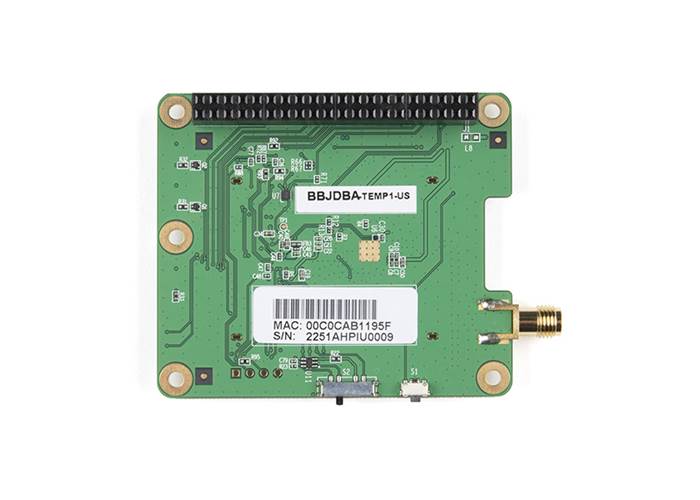

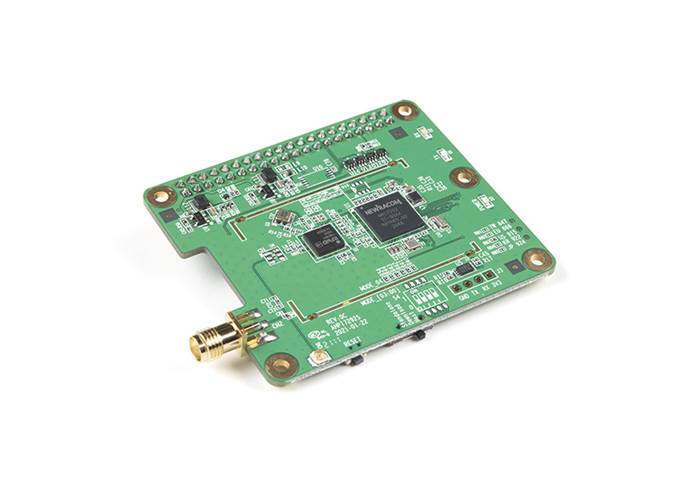

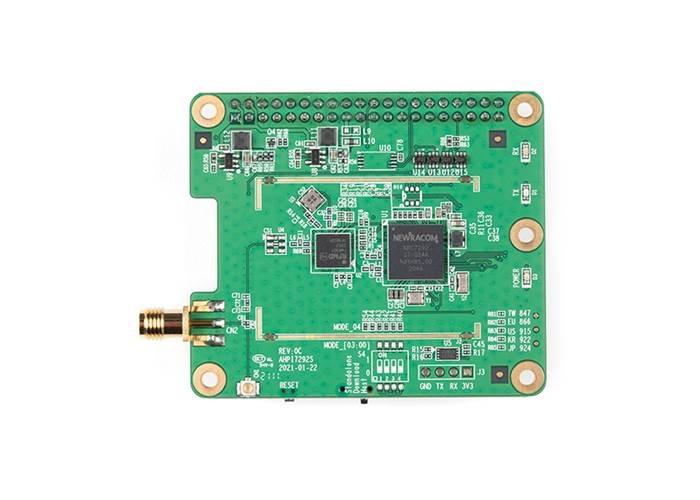

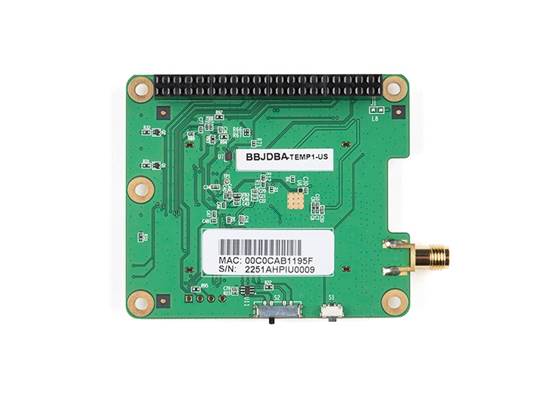

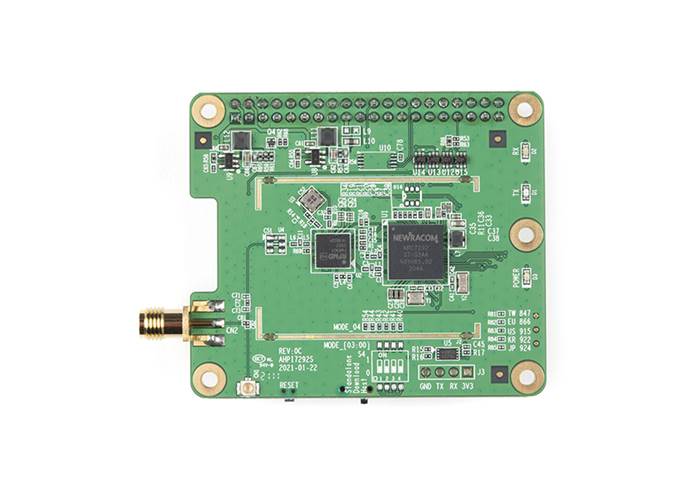

ALFA Network WiFi HaLow HAT

The AHPI7292S is the world's first WiFi HaLow™ Raspberry Pi™ HAT module from Alfa Network. Similar to LoRa, WiFi HaLow is a new designation from the WiFi Alliance for 802.11ah technology which operates in the sub-gigahertz range.

AUD$ 143.95

Special Order

Shipping from $7.90

+90 more from our supplier in 7-10 days

Our Code: SKU-009183

Supplier Link: [SparkFun MPN:19956]


Description

The AHPI7292S is the world's first WiFi HaLow™ Raspberry Pi™ HAT module from Alfa Network. Similar to LoRa, WiFi HaLow is a new designation from the WiFi Alliance for 802.11ah technology which operates in the sub-gigahertz range. This brings a more IoT friendly long-range and Low-power technology to WiFi style communication. The AHPI7292S brings this wireless technology to the Raspberry Pi form factor with a HAT that works with Raspberry Pi 3B+ and 4 line. It supports both standalone and host based modes with up to 15Mbps throughput. An included SDK makes for a excellent getting started experience.

Antenna sold separately. Please check out the related products for our antenna choice for this. This version of the board has the SMA connector and not the U.FL connector.


Specifications

  • Chipset - Newracom™ NRC7292
  • Frequency - 915 MHz (US)
  • Data rate - 150 Kbps ~ 15 Mbps
  • Channel bandwidth - 1/2/4 MHz
  • Antenna connector - SMA
  • Interfaces
    • SPI
    • UART
    • I2C
  • On-board LEDs
    • 1 x Power
    • 1 x TX
    • 1 x RX
  • HAT Form Factor

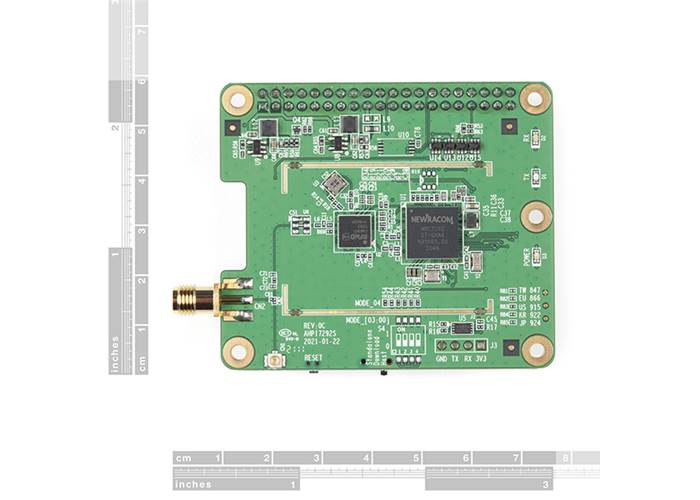

  • Dimensions - 65mm x 56mm x 10.3mm
