This 8-channel USB Logic Analyser with support for sampling rates of up to 24MHz provides a good while economic option making it a great and easy tool.
In stock in Australia
Shipping from $9.90
+371 more from our supplier in 7-10 days
Our Code: SKU-008017
Supplier Link: [SparkFun MPN:18627]

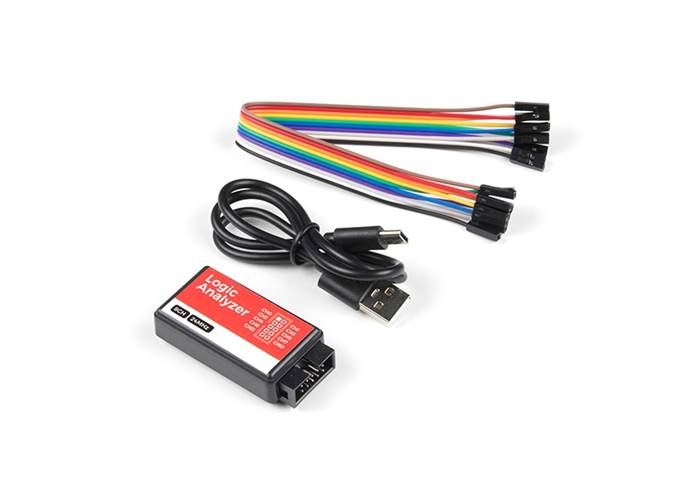

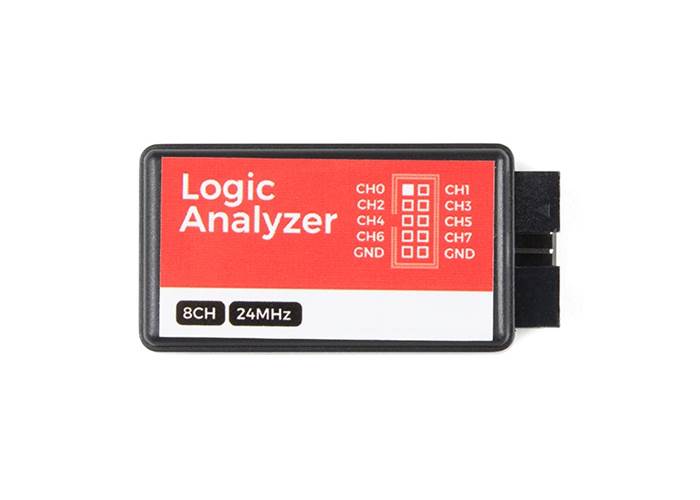

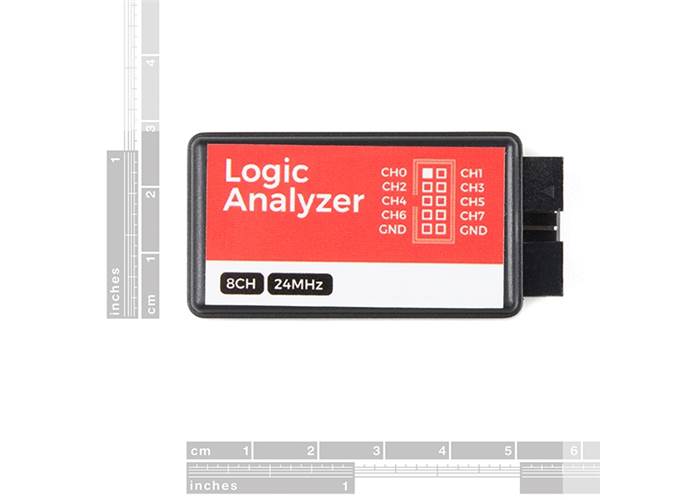

Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyser! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyser with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.
These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included USB-C cable. This logic analyser works with PulseView -- an open-source, cross-platform signal analysis software suite.
The analyser ships with Female-To-Female jumper wires. If you're using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyser to the female headers.
With this latest revision of the USB Logic Analyser, the USB Mini B connector was replaced with a more up-to-date USB Type C connector.
