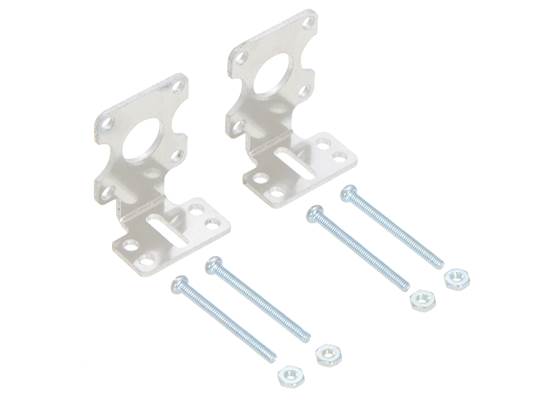

These extended aluminium gearmotor brackets let you securely mount our larger Pololu plastic gearmotors ( 228:1 offset , 120:1 offset , 200:1 90-degree , and 120:1 90-degree ) to your project. The extended “neck” on these brackets allows for a large variety of mounting options.
Special Order
Shipping from $7.90
+219 more from our supplier in 7-10 days
Our Code: SKU-003348
Supplier Link: [Pololu MPN:2671]
These light-weight brackets (approximately 2.5 g each) are specifically designed for our larger Pololu plastic gearmotors (228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree). Each bracket features four mounting holes and one mounting slot intended for #4-size screws (not included), giving you a variety of mounting options. We also carry a more compact version of this bracket that mounts the motor 0.25″ (6.4 mm) closer to the mounting hole surface, though this reduces the number of possible mounting orientations.
A total of four 1″ long #2-56 screws and #2-56 hex nuts are included for securing our 228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree plastic gearmotors to the brackets. Only two screws are used to mount a motor to each bracket.
To save space, the bracket can be oriented so that the mounting screws are located between the motor and the surface, and the extra space between the bracket and motor allows for another mounting option in which the surface being mounted to is located between the motor and bracket.

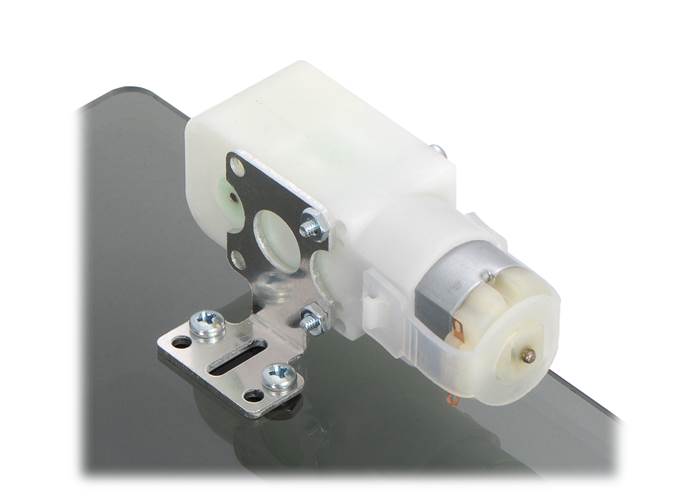

Plastic gearmotor with offset output (item #1118 or #1119) mounted with Pololu extended stamped aluminum L-bracket |

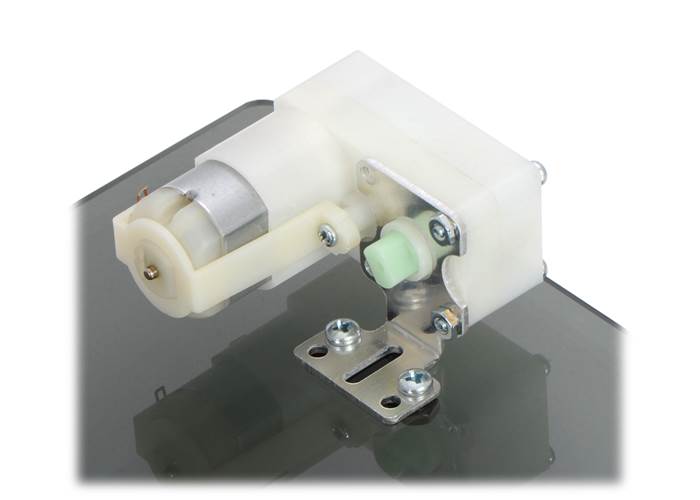

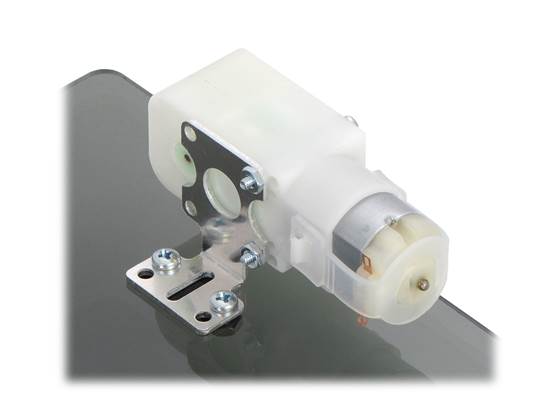

Plastic gearmotor with 90-degree output (item #1120 or #1121) mounted with Pololu extended stamped aluminum L-bracket |

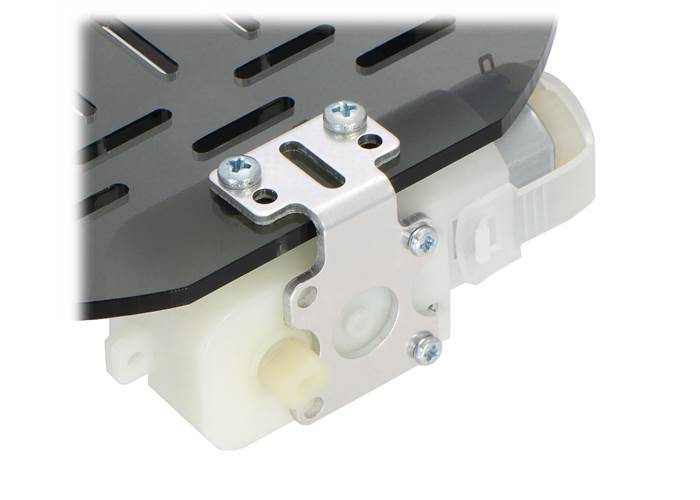

Plastic gearmotor with offset output (item #1118 or #1119) mounted with Pololu extended stamped aluminum L-bracket (1) |

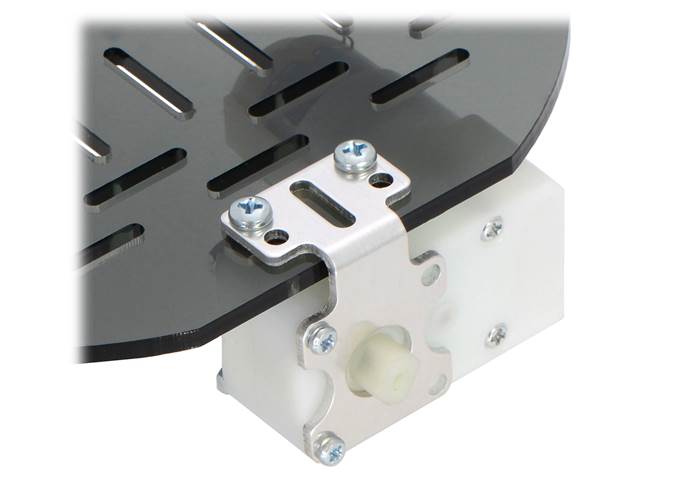

Plastic gearmotor with 90-degree output (item #1120 or #1121) mounted with Pololu extended stamped aluminum L-bracket (1) |

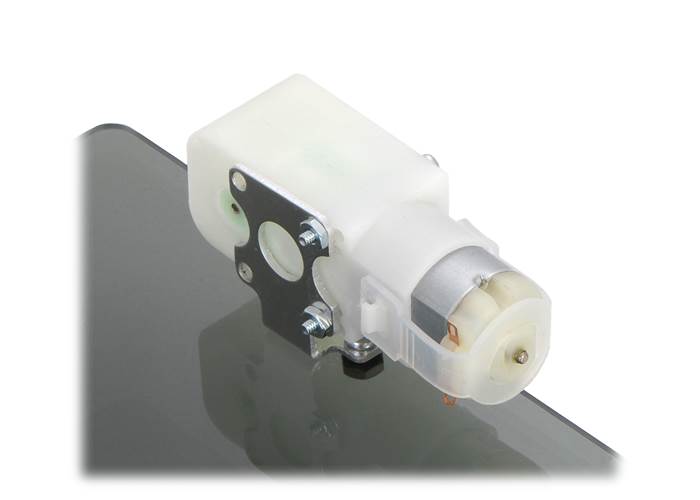

Plastic gearmotor with offset output (item #1118 or #1119) mounted with Pololu extended stamped aluminum L-bracket (2) (2) |

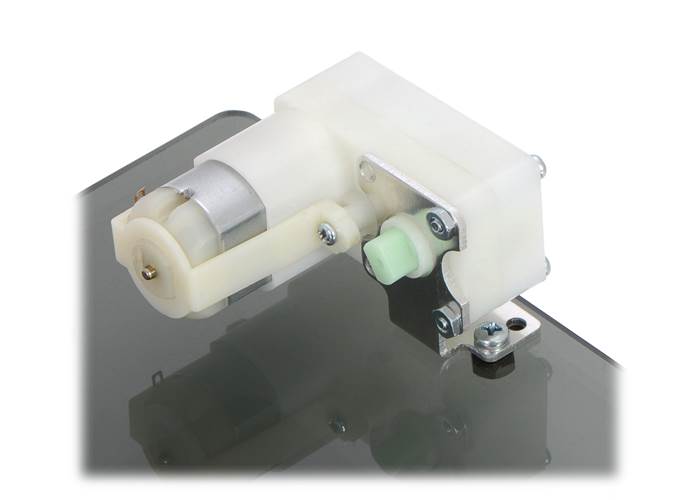

Plastic gearmotor with 90-degree output (item #1120 or #1121) mounted with Pololu extended stamped aluminum L-bracket (2) (2) |
These brackets also work with the Solarbotics plastic gearmotors (GM2, GM3, GM8, and GM9), although different length mounting screws might be required.

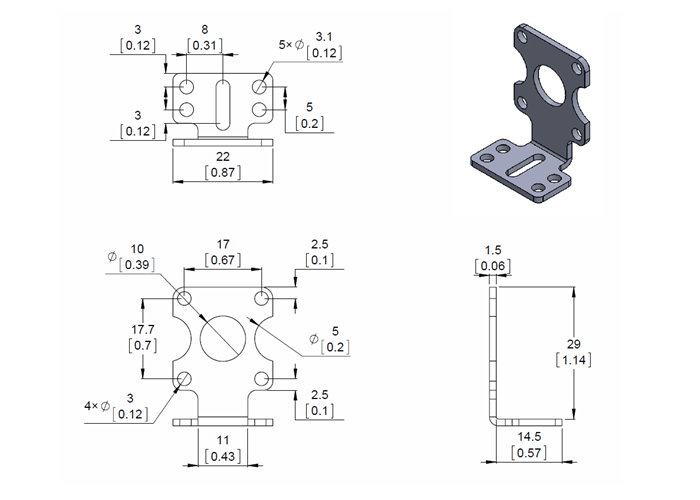

The following drawing shows the bracket dimensions in mm.
![Mechanical drawing for the Pololu extended stamped aluminum L-bracket for plastic gearmotors. Units are mm over [inches]](/cache/files/productimageoriginals/20619_mechanical_drawing_for_the_pololu_extended_stamped_aluminum_l_bracket_for_plastic_gearmotors_units_are_mm_over_inches_.png)
Mechanical drawing for the Pololu extended stamped aluminum L-bracket for plastic gearmotors. Units are mm over [inches]
This drawing is also available as a downloadable PDF (97k pdf).
