Pololu Basic SPDT Relay Carrier for "Sugar Cube" Relays

Pololu’s basic relay carrier board makes it easy to incorporate a “sugar cube”-style power relay into your electronics project. An integrated MOSFET allows the relay to be controlled with a low-current digital input, and a pair of indicator LEDs show when the relay is activated.

AUD$ 3.45

Special Order

We can ship 41 more in 7-10 days

Our Code: SKU-003252

Supplier Link: [Pololu MPN:2479]

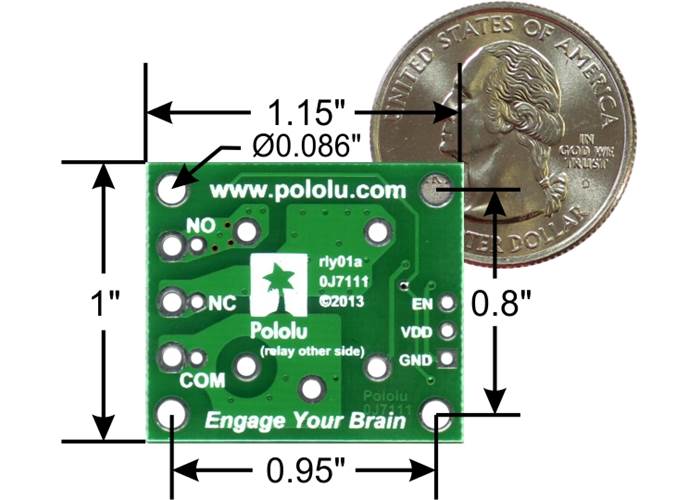

Pololu basic SPDT relay carrier with dimensions

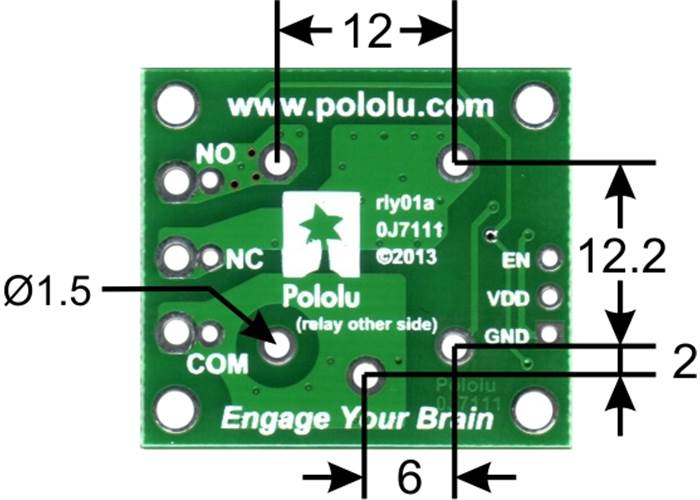

Dimensions (in mm) of “sugar cube” relay footprint on the Pololu basic SPDT relay carrier


The Pololu basic relay carrier makes it easy to control a single-pole, double-throw (SPDT) power relay that has the common “sugar cube” pinout and footprint. This product is just the carrier board PCB assembled with all of its surface mount components, including a MOSFET for controlling the relay, indicator LEDs, and a flyback diode; it does not include a relay or connectors. This board is also available with 5 V and 12 V power relays (assembled or as a partial kit):

Select options:

The carrier board routes the three relay control pins to 0.1″-spaced pins compatible with standard solderless breadboads and female servo cable connectors. The relay switch pins are routed to a set of large pads intended for use with a 3-pin 5mm-pitch terminal block and a set of smaller pads with a 0.2″ pitch, making them compatible with 0.1″ perfboards. The carrier board has four mounting holes that work with #2 or M2 screws.

Advantages over similar products

  • Compact layout
  • Two LEDs to indicate coil actuation
  • Zener diode for fast current decay on relay coil
  • Specification of electrical routing clearance rules on relay switch nodes

Comparison to the dual-channel version

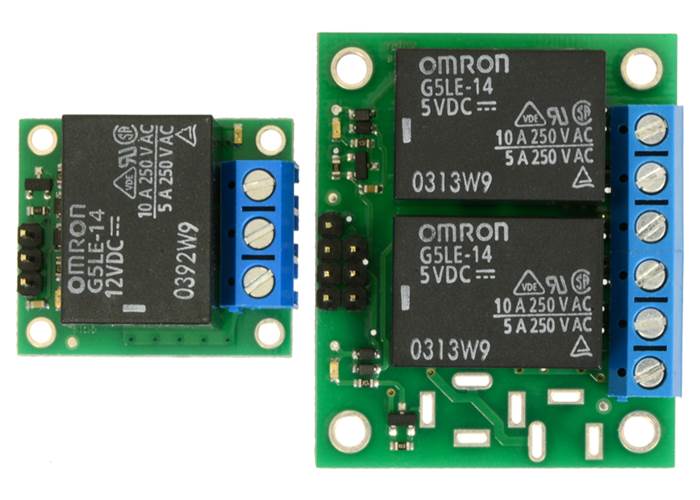

Pololu - Side-by-side comparison of the single and dual versions of the Pololu basic SPDT relay carriers

Our basic relay carrier boards are available in single-channel and dual-channel versions. The single-relay carrier is less than half the size of the 2-channel carrier (due in part to its smaller mounting holes and lack of barrel jack footprints), so it might be more appropriate to use two single-channel boards instead of one 2-channel board in some space-constrained applications. The following table shows some of the key differences between the two versions:

Voltage options Board size Mounting hole size # of channels DC power jack option
Single-relay carrier 5 V and 12 V 1.15″ × 1″ 0.086″ (#2 or M2) 1 no
Dual-relay carrier 5 V and 12 V 1.5″ × 1.8″ 0.125″ (#4 or M3) 2 yes

Using the relay module

Pinout of Pololu basic SPDT relay carrier for “sugar cube” relays

Pololu basic SPDT relay carrier with 12 VDC relay (assembled)

The switch portion of the relay is accessible on one side of the board while the control pins are routed to the other. The relay coil is powered by supplying the appropriate coil voltage for your specific relay across the VDD and GND pins, and it is activated by a digital high control signal on the EN pin. The control signal is fed directly to a BSS138 N-channel MOSFET, which in turn actuates the relay coil when the control voltage exceeds approximately 2.5 V (see BSS138 datasheet (92k pdf) for details).

The relay switch terminals COM (common), NO (normally open), and NC (normally closed) are routed on the PCB with a minimum clearance of 60 mils (1.5 mm) from other copper. The copper traces are designed to be at least 45 mil (1.1 mm) from the board edges, though manufacturing variations in the board edges can make those distances slightly lower.

In most applications, the current and voltage ratings for the module will match the ratings of the relay used. Maximum current, maximum voltage, and life expectancy are interdependent; we therefore recommend careful examination of your relay’s datasheet.

Warning: This product is not designed to or certified for any particular high-voltage safety standard. Working with voltages above 30 V can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.

Schematic diagram

Schematic diagram for the Pololu basic SPDT relay carrier.

This schematic is also available as a downloadable pdf (131k pdf).



Size: 1″ × 1.15″ × 0.1″
Weight: 2.4 g


File downloads

Pololu basic SPDT relay carrier schematic diagram (131k pdf)
Printable schematic diagram for the Pololu basic SPDT relay carrier.
BSS138 N-channel MOSFET datasheet (92k pdf)
Basic SPDT Relay Carrier for “Sugar Cube” Relays drill guide (33k dxf)
This DXF drawing shows the locations of all of the board’s holes.
