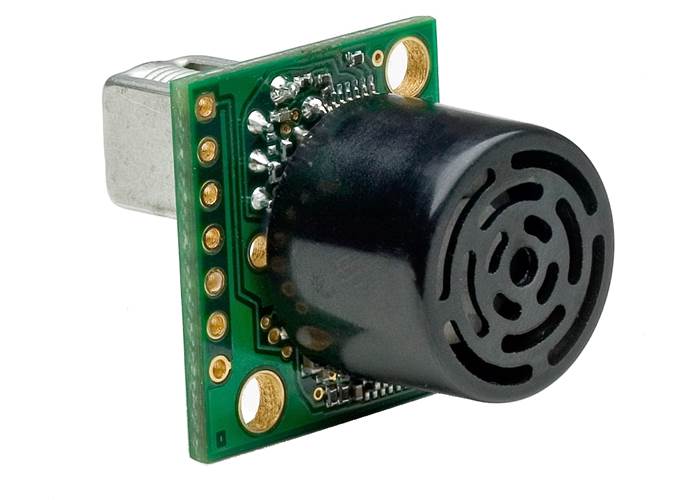

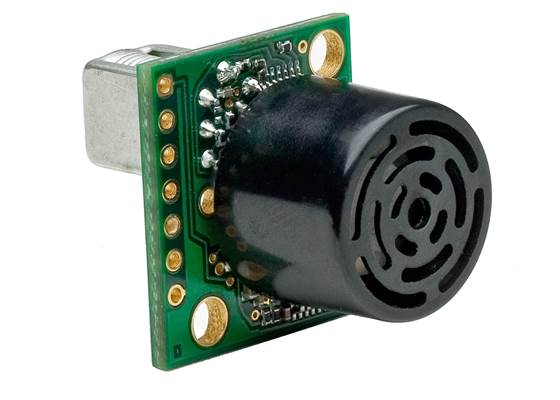

Maxbotix XL-MaxSonar-EZ4 Sonar Range Finder MB1240

AUD $72.95

In Stock: Ships Today

Back orders: Ship 14 units in 7 days

Our Code: SKU-002714

Supplier: [Pololu MPN:1654]

This ultrasonic (sonar) range finder features real-time automatic calibration and noise rejection resulting in virtually noise-free distance readings even in environments with changing acoustic and electrical noise.


Description

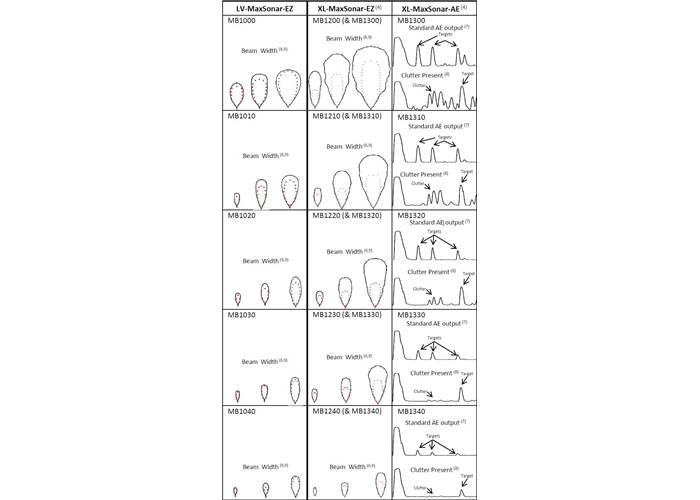

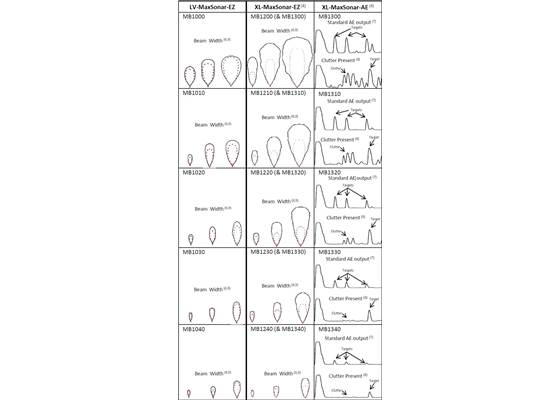

MaxBotix ultrasonic sensor line comparison chart

MaxBotix ultrasonic sensor line comparison chart





Overview

The Maxbotics XL-MaxSonar family of sonar range finders offers very short- to long-range detection and ranging in an incredibly small package with low power consumption. The XL-MaxSonar detects objects from 0 to 7.65 meters (25 feet) and provides sonar range information beyond 20 cm (8") with a resolution of 1 cm resolution (0.4 in). Objects between 0 and 20 cm range as 20 cm. An efficient transformer uses 0.5 W of power to drive the transducer, yielding high-output acoustic power. This acoustic power, combined with continuously-variable gain, real-time automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms, results in virtually noise-free distance readings for most applications, even in the presence of various acoustic or electrical noise sources. The XL-MaxSonar distance sensor is available in five factory-calibrated beam patterns (EZ/AE0-4).

For a less-expensive, lower-resolution, shorter-range version, please consider the LV-MaxSonar-EZ family of distance sensors.

Specifications and Features

  • Small and light: 0.870" x 0.785" x 0.989" (2.2 x 2.0 x 2.5 cm), 0.22 oz (6.1 g)
  • Long range detection: 0 – 7.65 m (25 ft)
  • No dead zone; detections from 0 to 20 cm (8 in) are output as 20 cm
  • Resolution of 1 cm (0.4 in)
  • Low typical current consumption: 3.4 mA at 5 V, 2.1 mA at 3.3 V
  • Runs on 3.3 – 5 V
  • 42 kHz ultrasonic sensor
  • 10 Hz reading rate
  • Readings can be triggered externally or internally
  • Supports three interfaces (all are active simultaneously):
    • Serial output of distance reading: asynchronous, logic-level (TTL), inverted, 9600 bps 8N1
    • Analogue output of distance reading: (Vcc/1024) / cm (4.9 mV/cm when input voltage Vcc = 5 V)
    • Pulse width output of distance reading: 58 μs/cm (147 μs/in) on EZ models only
    • Analogue voltage envelope of return acoustic wave form on AE models only

Selecting the right distance sensor

Since there are 15 members of the XL- and LV-MaxSonar acoustic distance sensor family, we recommend using the Maxbotix sonar range finder selection guide when choosing a acoustic range sensor for your application. There are 5 different beam configurations for the XL-MaxSonar family (EZ/AE0-4), each pictured below, and two output types: EZ and AE. Both models report a distance reading through an analogue voltage output and a serial interface. The EZ models also report the distance reading as a high-accuracy digital pulse width, while the AE models report a real-time analogue envelope of the detected acoustic reflections. The analogue envelope is an time-varying analogue signal representing the acoustic waveform received by the transducer. External processing of this analogue envelope allows for the simultaneous detection of multiple objects at different distances. Please see the picture above for an example of the analogue envelope output.

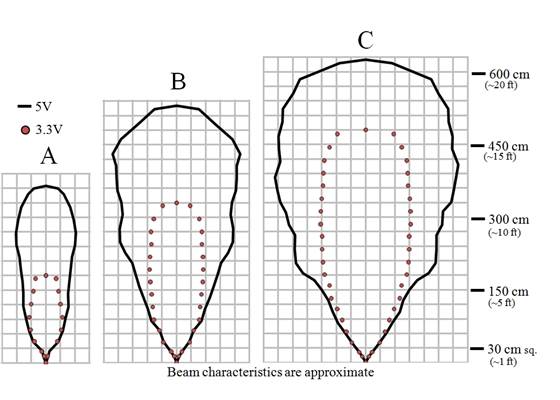

Maxbotix XL-MaxSonar-EZ0 / AE0 (MB1200 / MB1300) beam characteristics:

Maxbotix XL-MaxSonar-EZ0/AE0 (MB1200/MB1300) beam characteristics

Maxbotix XL-MaxSonar-EZ0/AE0 (MB1200/MB1300) beam characteristics

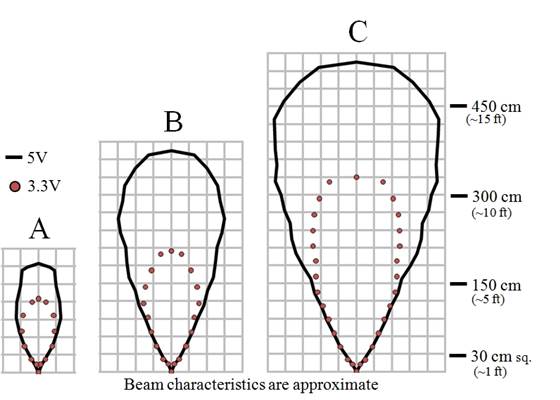

Maxbotix XL-MaxSonar-EZ1 / AE1 (MB1210 / MB1310) beam characteristics:

Maxbotix XL-MaxSonar-EZ1/AE1 (MB1210/MB1310) beam characteristics

Maxbotix XL-MaxSonar-EZ1/AE1 (MB1210/MB1310) beam characteristics

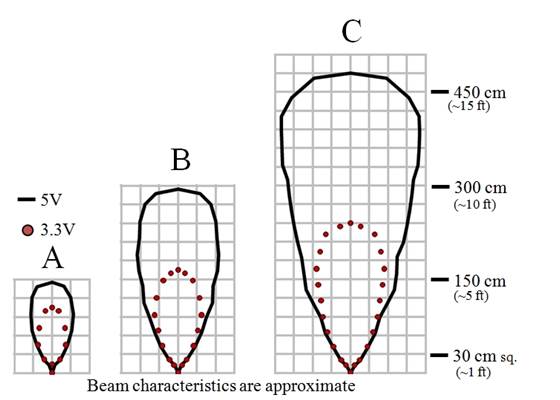

Maxbotix XL-MaxSonar-EZ2 / AE2 (MB1220 / MB1320) beam characteristics:

Maxbotix XL-MaxSonar-EZ2/AE2 (MB1220/MB1320) beam characteristics

Maxbotix XL-MaxSonar-EZ2/AE2 (MB1220/MB1320) beam characteristics

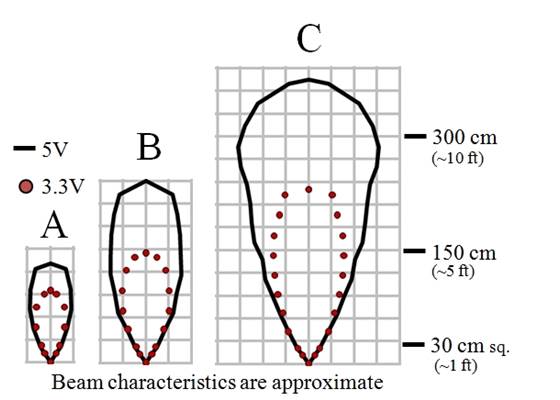

Maxbotix XL-MaxSonar-EZ3 / AE3 (MB1230 / MB1330) beam characteristics:

Maxbotix XL-MaxSonar-EZ3/AE3 (MB1230/MB1330) beam characteristics

Maxbotix XL-MaxSonar-EZ3/AE3 (MB1230/MB1330) beam characteristics

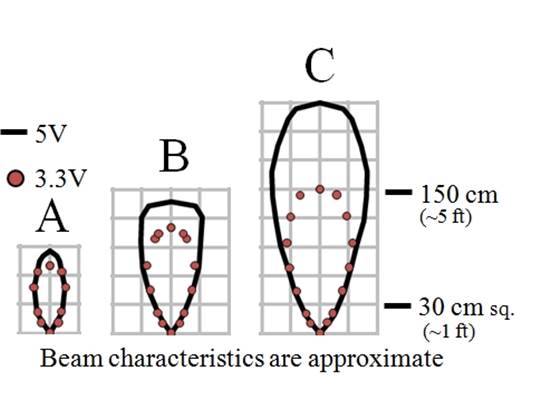

Maxbotix XL-MaxSonar-EZ4 / AE4 (MB1240 / MB1340) beam characteristics:

Maxbotix XL-MaxSonar-EZ4/AE4 (MB1240/MB1340) beam characteristics

Maxbotix XL-MaxSonar-EZ4/AE4 (MB1240/MB1340) beam characteristics







Specifications

Dimensions

Size: 0.870" x 0.785" x 0.989"
Weight: 6.1 g

General specifications

Resolution: 1 cm
Maximum range: 7.65 m
Minimum range: 0 cm1
Sampling rate: 10 Hz
Baud: 9600 bps
Minimum operating voltage: 3.3 V
Maximum operating voltage: 5 V
Supply current: 3.4 mA2

Notes:

1
Objects closer than 20 cm are reported as 20 cm.
2
At 5 V (2.1 mA at 3.3 V).

Resources

Recommended links

Maxbotix sonar range finder selection guide
Report on Maxbotix sonar range finder tests
This report explains testing procedures, calculations, and conclusions for Maxbotix’s reliability demonstration test and mean time between failure (MTBF) test. Testing demonstrated over 200,000 hours for a MTBF with a 90% confidence level.
XL-MaxSonar-EZ0/AE0 (MB1200/MB1300) datasheet
Datasheet for the Maxbotix XL-MaxSonar-EZ0/AE0 (MB1200/MB1300) sonar range finders.
XL-MaxSonar-EZ1/AE1 (MB1210/MB1310) datasheet
Datasheet for the Maxbotix XL-MaxSonar-EZ1/AE1 (MB1210/MB1310) sonar range finders.
XL-MaxSonar-EZ2/AE2 (MB1220/MB1320) datasheet
Datasheet for the Maxbotix XL-MaxSonar-EZ2/AE2 (MB1220/MB1320) sonar range finders.
XL-MaxSonar-EZ3/AE3 (MB1230/MB1330) datasheet
Datasheet for the Maxbotix XL-MaxSonar-EZ3/AE3 (MB1230/MB1330) sonar range finders.
XL-MaxSonar-EZ4/AE4 (MB1240/MB1340) datasheet
Datasheet for the MaxBotix XL-MaxSonar-EZ4/AE4 (MB1240/MB1340) sonar range finders.
FAQ and code examples from MaxBotix
Sonar Acoustic Ranger
A PC application for reading the MaxSonar serial protocol.
