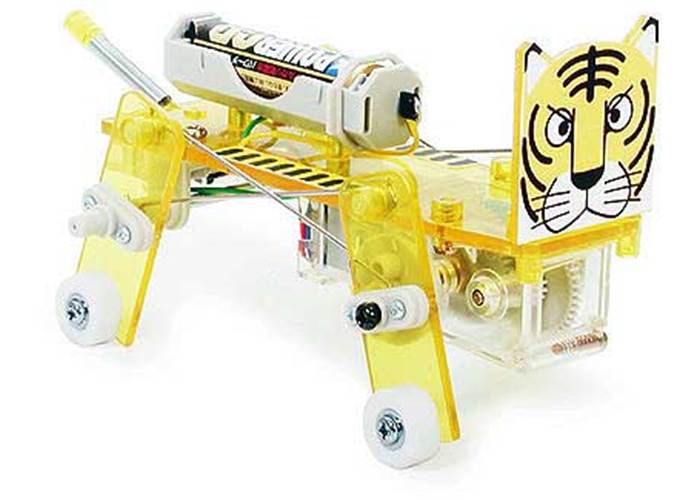

Tamiya 71109 Mechanical Tiger - Four Legged Walking Type

This four-legged Mechanical Tiger supports eight different walking configurations: four possible strides and two possible speeds.

AUD$ 36.95

Special Order

Shipping from $7.90

+8 more from our supplier in 7-10 days

Our Code: SKU-002425

Supplier Link: [Pololu MPN:935]

Description

How it works

Motor rotation is transferred to the legs via crank plates and linkage rods, causing the Mechanical Tiger to walk. The tiger’s stride depends on the crank holes to which the front legs are attached, which means there are four possible strides for you to choose from. Put this together with the two possible gear ratios and you get eight possible speeds. A reverse switch also allows backward movement. The body is made from a transparent yellow ABS resin that allows you to see all of the motors, gears, cranks, and linkage rods in action.

Tamiya 71109 Mechanical Tiger gearbox, crank plate, and linkage rods close-up

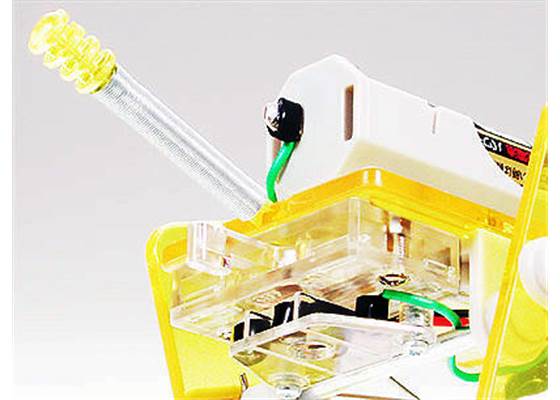

Tamiya 71109 Mechanical Tiger control switch and tail close-up

Tamiya 71109 Mechanical Tiger stickers

Basic specifications

Total length: 155 mm
Total weight: 105 g (without batteries)
Body material: ABS resin
Gearbox, motor, control switch, and decorative stickers are included.
2 possible gear ratios coupled with 4 different strides let you choose 8 different speeds.
A screwdriver for the assembly is provided.
Requires one AA (a.k.a. R6 or UM4) battery (sold separately).
Continuous running time with Alkaline battery: 2 hours.

Note: This is a kit. Assembly requires using a screwdriver and snapping parts together. No soldering is required. Run on flat, smooth surfaces; avoid running over slopes, on bumpy roads, or on thick carpet.
