Tamiya 71105 Mechanical Giraffe - Four Leg Walking Type

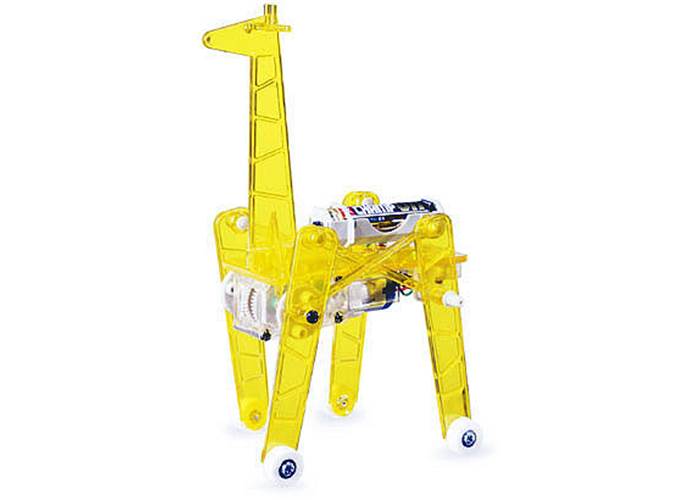

This four-legged Mechanical Giraffe walks when motor rotation is transferred to the legs via crank plates and linkage rods.

AUD$ 46.95

Special Order

Shipping from $9.90

+5 more from our supplier in 7-10 days

Our Code: SKU-002421

Supplier Link: [Pololu MPN:931]

This four-legged Mechanical Giraffe walks when motor rotation is transferred to the legs via crank plates and linkage rods.

Description

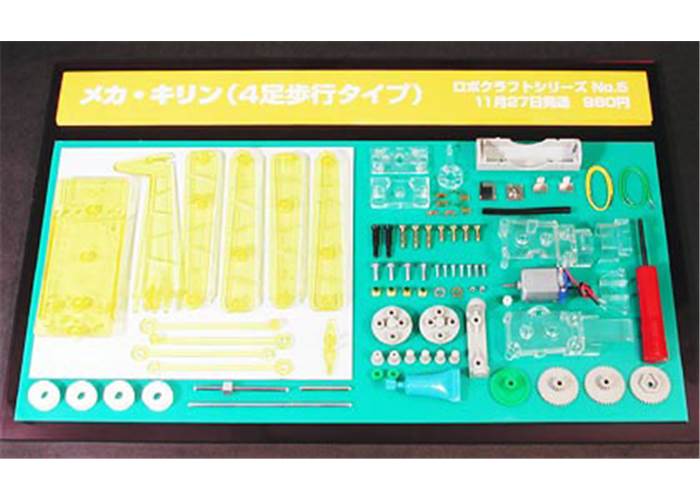

Tamiya 71105 Mechanical Giraffe kit contents.

How it works

Motor rotation is transferred to the legs via crank plates and linkage rods, causing the Mechanical Giraffe to walk. The body is made from a transparent yellow ABS resin that allows you to see all of the motors, gears, cranks, and linkage rods in action.

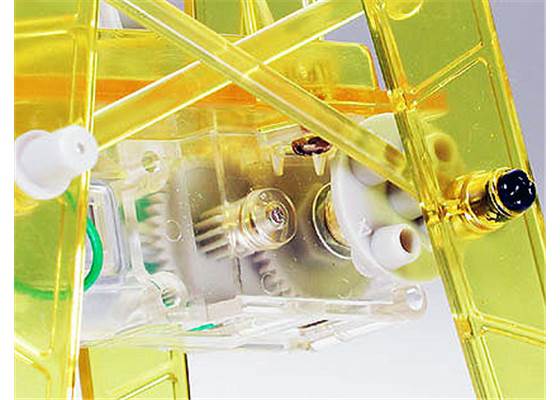

Tamiya 71105 Mechanical Giraffe crank plate and linkage rods close-up.

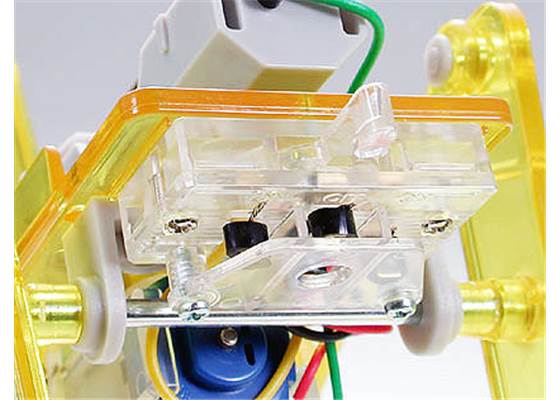

Tamiya 71105 Mechanical Giraffe control switch close-up.

Basic specifications

Total length: 190 mm
Total weight: 110 g (without batteries)
Body material: ABS resin
Gearbox, motor, and control switch are included.
A screwdriver for the assembly is provided.
Requires one AA (a.k.a. R6 or UM3) battery (not included).
Continuous running time with Alkaline battery: 1.5 hrs.

Note: This is a kit. Assembly requires using a screwdriver and snapping parts together. No soldering is required. Run on flat, smooth surfaces; avoid running over slopes, on bumpy roads, or on thick carpet.
