This compact sonar range finder by Maxbotix detects objects from 0 to 6.45 m (21.2 ft) with a resolution of 2.5 cm (1") for distances beyond 15 cm (6").
Special Order
Shipping from $9.90
+1 more from our supplier in 7-10 days
Our Code: SKU-002412
Supplier Link: [Pololu MPN:792]
This compact sonar range finder by Maxbotix detects objects from 0 to 6.45 m (21.2 ft) with a resolution of 2.5 cm (1") for distances beyond 15 cm (6"). Unlike other sonar range finders, the LV-MaxSonar has virtually no dead zone: it can detect even small objects up to and touching the front sensor face!
The EZ0, EZ1, EZ2, EZ3, and EZ4 versions have progressively narrower beam angles.

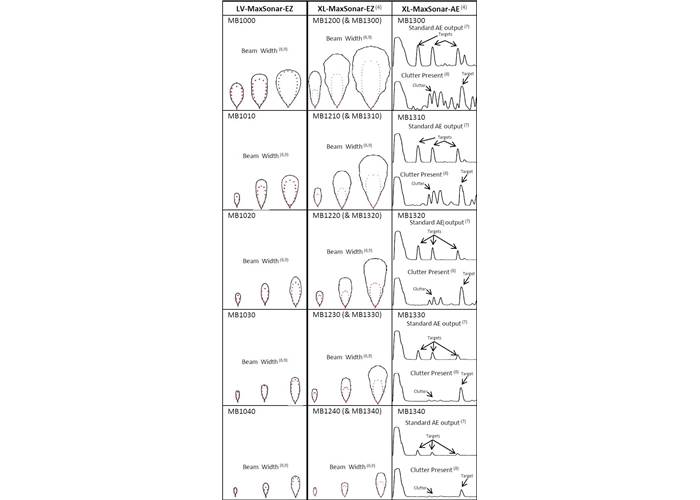

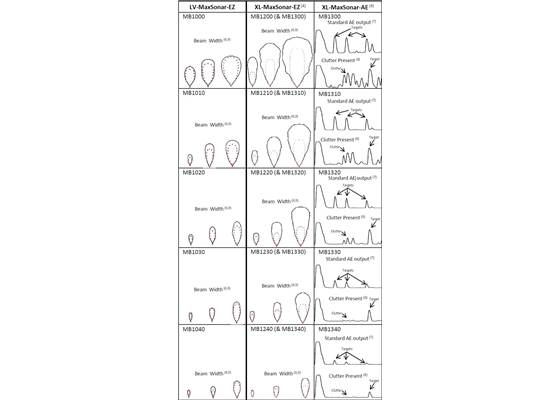

MaxBotix ultrasonic sensor line comparison chart.
The Maxbotix LV-MaxSonar-EZ family of sonar range finders offers very short- to long-range detection and ranging in an incredibly small package with ultra-low power consumption. The LV-MaxSonar-EZ detects objects from 0 to 6.45 meters (21.2 feet) and provides sonar range information beyond 15 cm (6") with a resolution of 2.5 cm resolution (1 in). Objects between 0 and 15 cm range as 15 cm. The sensor provides three output interfaces, all of which are active simultaneously: digital pulse width output, analogue voltage output, and asynchronous serial digital output. The LV-MaxSonar is available in five factory-calibrated beam patterns (EZ0-4).
For a higher-resolution, longer-range version, please consider the XL-MaxSonar-EZ and XL-MaxSonar-AE families of distance sensors.
Since there are 15 members of the XL- and LV-MaxSonar acoustic distance sensor family, we recommend using the Maxbotix sonar range finder selection guide when choosing a acoustic range sensor for your application. There are 5 different beam configurations for the LV-MaxSonar family (EZ0 – EZ4), each pictured below.

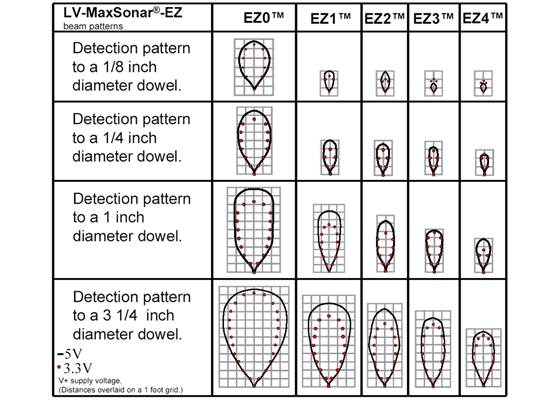

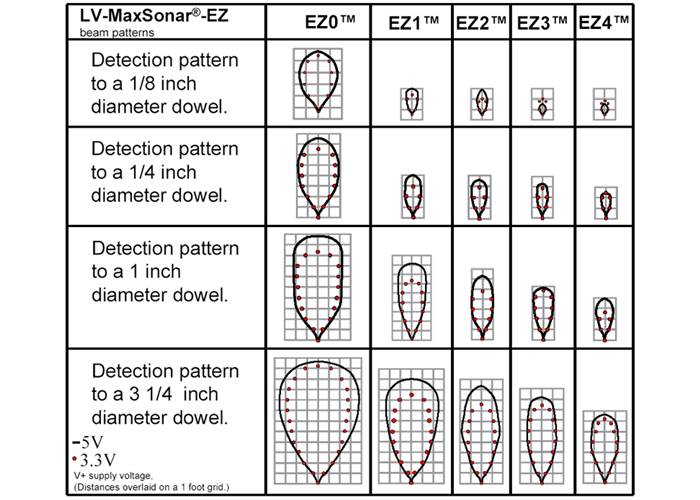

LV-MaxSonar-EZ beam patterns (range shown on 1-foot grid to various diameter dowels)

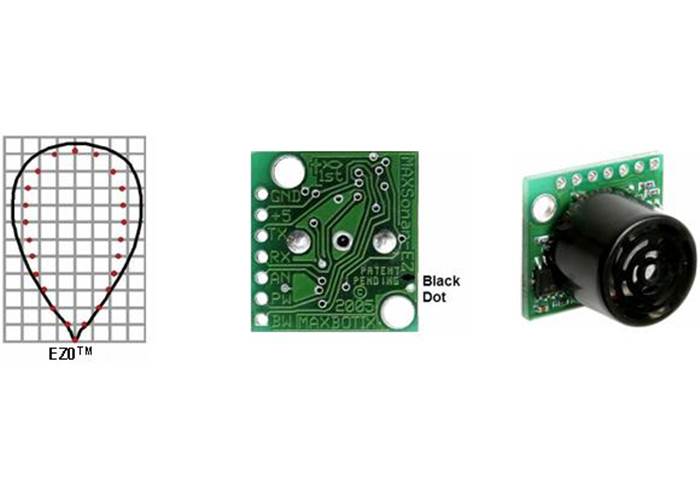

Maxbotix LV-MaxSonar-EZ0 MB1000 beam characteristics:
Maxbotics LV-MaxSonar-EZ0 sonar range finder.

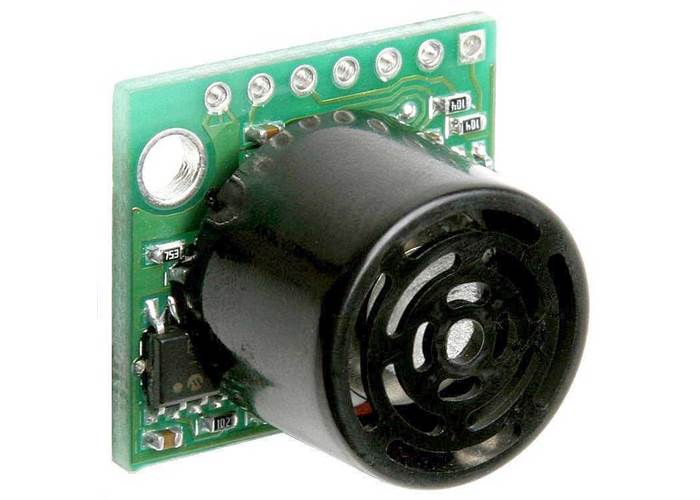

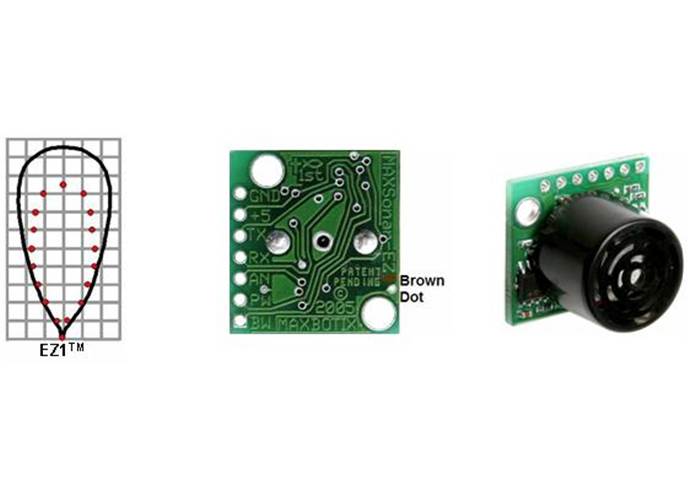

Maxbotix LV-MaxSonar-EZ1 MB1010 beam characteristics:
Maxbotics LV-MaxSonar-EZ1 sonar range finder.

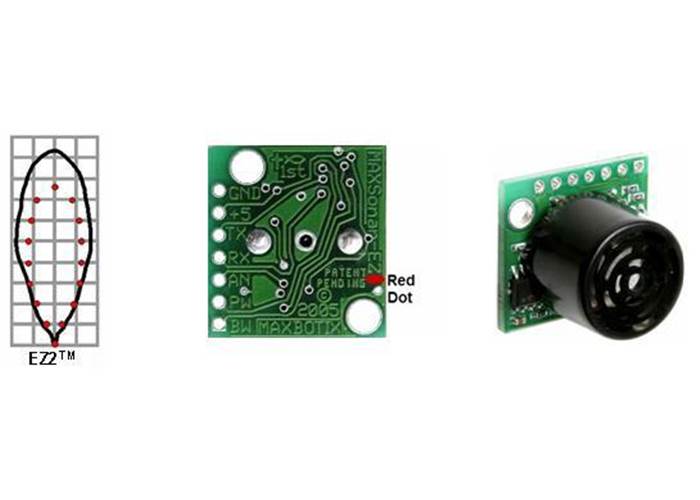

Maxbotix LV-MaxSonar-EZ2 MB1020 beam characteristics:
Maxbotics LV-MaxSonar-EZ2 sonar range finder.

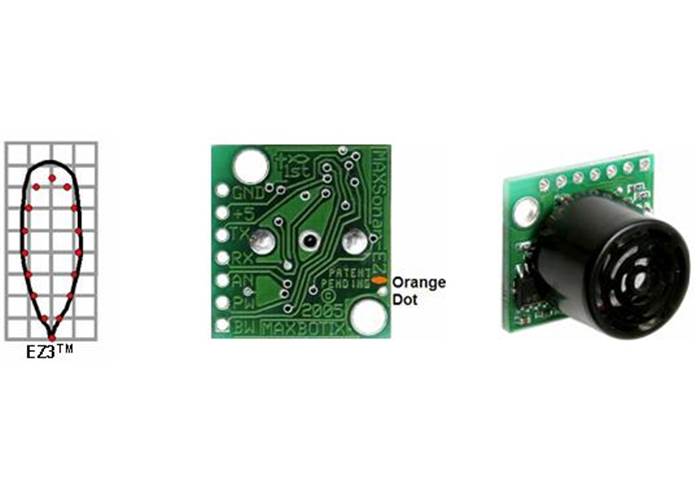

Maxbotix LV-MaxSonar-EZ3 MB1030 beam characteristics:
Maxbotics LV-MaxSonar-EZ3 sonar range finder.

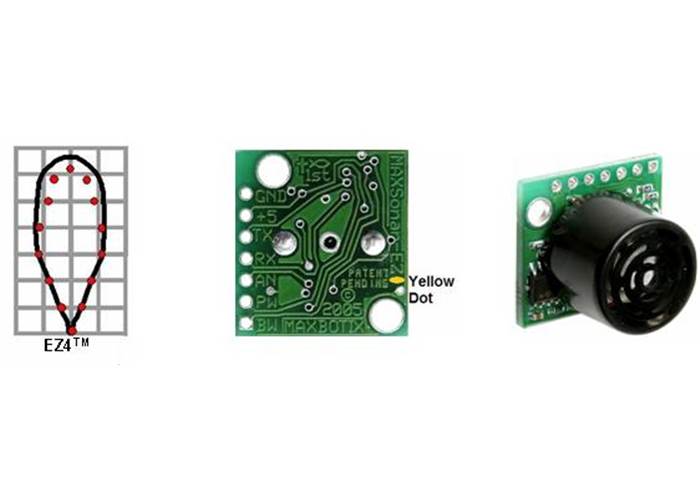

Maxbotix LV-MaxSonar-EZ4 MB1040 beam characteristics:
Maxbotics LV-MaxSonar-EZ4 sonar range finder.
| Size: | 0.870" x 0.786" x 0.645" |
|---|---|
| Weight: | 4.3 g |
| Resolution: | 2.5 cm |
|---|---|
| Maximum range: | 6.45 m |
| Minimum range: | 0 m1 |
| Update rate: | 20 Hz |
| Baud: | 9600 |
| Minimum operating voltage: | 2.5 V |
| Maximum operating voltage: | 5.5 V |
| Supply current: | 2 mA |
This report explains testing procedures, calculations, and conclusions for Maxbotix’s reliability demonstration test and mean time between failure (MTBF) test. Testing demonstrated over 200,000 hours for a MTBF with a 90% confidence level.
Note: Certain elements in this datasheet only apply to newer revisions of the EZ1 that are marked on the back of the board with a brown dot. If your sensor does not have a brown dot on the back, these sections of the datasheet do not apply.
A PC application for reading the MaxSonar serial protocol.
Website for MaxBotix, which makes this and other easy-to-use ultrasonic sensors for a wide variety of applications.
