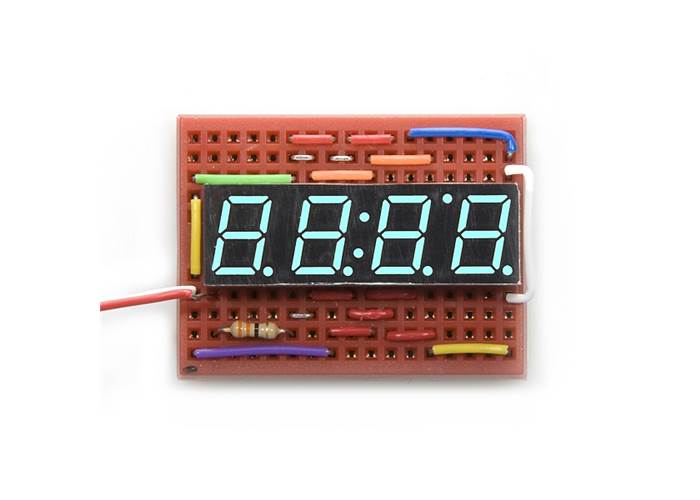

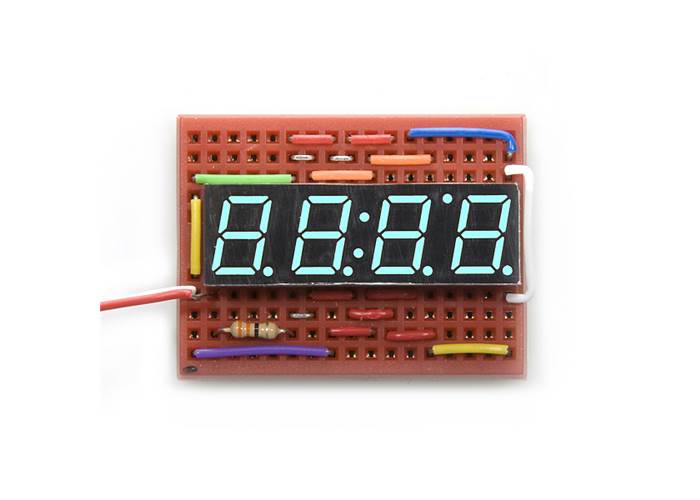

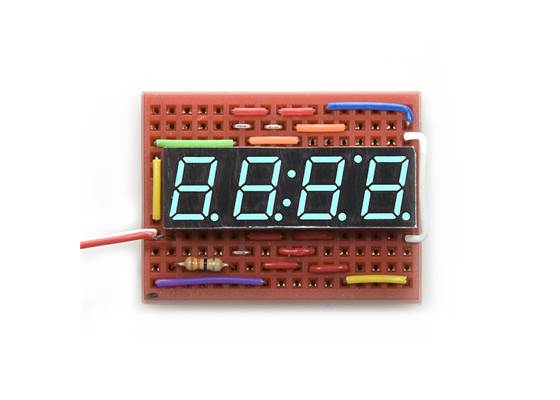

7-Segment Display - 4-Digit (Blue)

AUD $4.70

Order As Required

Back orders: Ship 79 units in 7 days

Our Code: SKU-000432

Supplier: [SparkFun MPN:9481]

This is a basic, 4-digit 7-segment display - blue in colour. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points. The LEDs have a forward voltage of 3.4VDC and a max forward current of 20mA.


Description

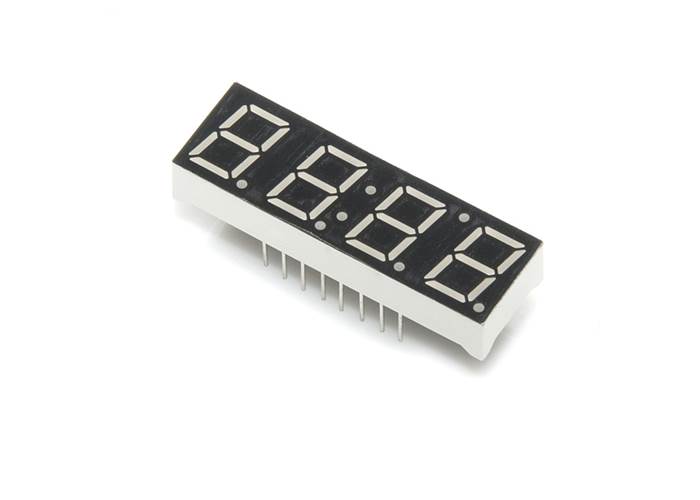

This is a basic, 4-digit 7-segment display - blue in colour. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.

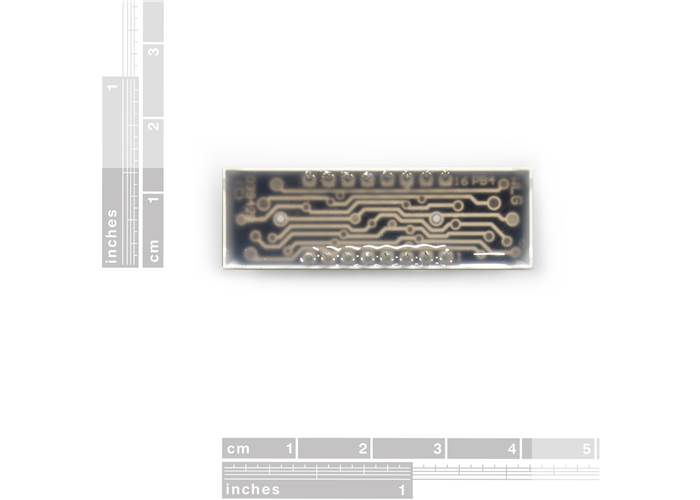

The LEDs have a forward voltage of 3.4VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins.

We carry this same display in red, green, and yellow.

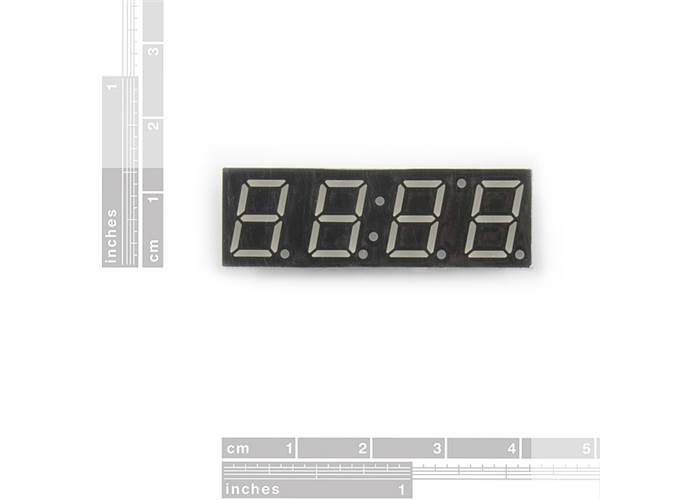

Dimensions

  • Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
  • Digit Height: 10mm (0.39")
