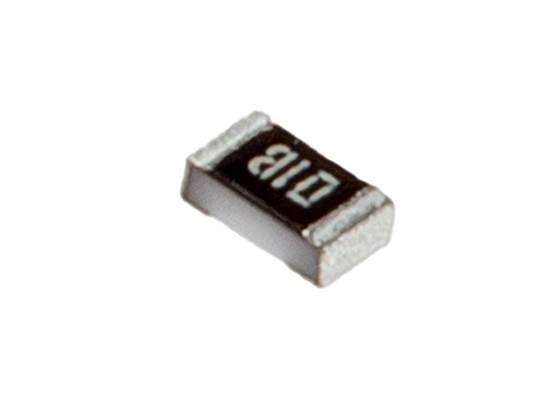

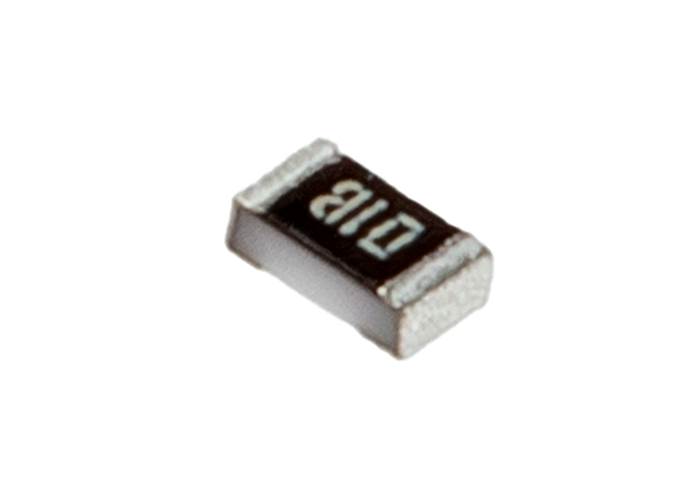

Resistor - 1k Ohm, 1/10W

1k Ohm, 1/10W, ±1% tolerance SMD resistor.

AUD$ 0.20

Special Order

Shipping from $2.90

+99 more from our supplier in 7-10 days

Our Code: SKU-011169

Supplier Link: [SparkFun MPN:29465]


Description

This is a high-precision 1k Ohm resistor in a compact, surface-mount package. With its ±1% tolerance, this guarantees a more accurate and stable resistance than standard 5% resistors. This makes it an excellent choice for circuits that depend on precise values, such as measurement instruments, analogue filters, or sensor interfaces.

With a power rating of 1/10W (0.1W) and a standard 0603 footprint, it is perfectly suited for low-power, high-density applications in modern electronics.


Specifications

  • Resistance: 1k Ohms
  • Tolerance: ±1%
  • Power (Watts): 0.1W, 1/10W
  • Composition: Thick Film
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C ~ 155°C
  • Ratings: AEC-Q200
  • Dimensions: 0.061" L x 0.033" W (1.55mm x 0.08mm)
  • Height - Seated (Max): 0.020" (0.50mm)
  • Number of Terminations: 2
  • Mfg #: CRCW06031K00FKEA
