The Pololu basic 2-channel relay carrier modules allow simple, independent control of two single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals.
Special Order
Shipping from $9.90
+112 more from our supplier in 7-10 days
Our Code: SKU-011007
Supplier Link: [Pololu MPN:5665]
The Pololu basic relay carrier modules make it easy to control electrically isolated, single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals. The modules are available in single-channel and dual-channel versions with 5 V or 12 V power relays—Omron G5LE-14-DC5 and G5LE-14-DC12 (1MB pdf), respectively—and with a variety of connector and assembly options.
The following table lists the available Pololu basic SPDT relay carrier options:
| Channels | Board size | Mounting holes |
DC power jack option |
Relay coil voltage |
Coil resistance |
Active current at rated voltage |
Connector and assembly options | Item # | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 Single-relay |
1 | 1.15″ × 1.0″ | 4× 0.086″ (#2 or M2) |
no | 5 V | 63 Ω | 80 mA | • with JST SH-style connector, assembled | 5662 | $7.95 |
| • with 0.1″ headers, assembled | 2480 | $7.95 | ||||||||
| • with 0.1″ headers, partial kit | 2481 | $6.95 | ||||||||
| 12 V | 360 Ω | 34 mA | • with JST SH-style connector, assembled | 5663 | $7.95 | |||||
| • with 0.1″ headers, assembled | 2482 | $7.95 | ||||||||
| • with 0.1″ headers, partial kit | 2483 | $6.95 | ||||||||
| N/A | N/A | N/A | • carrier board with JST SH-style connector only (no relay) | 5664 | $3.95 | |||||
| • carrier board only (no relay or connectors) | 2479 | $3.95 | ||||||||
 Dual-relay |
2 | 1.5″ × 1.8″ | 4× 0.125″ (#4 or M3) |
yes | 5 V | 63 Ω | 80 mA | • with JST SH-style connector, assembled | 5665 | $14.95 |
| • with 0.1″ headers, assembled | 2485 | $14.95 | ||||||||
| • with 0.1″ headers, partial kit | 2486 | $13.49 | ||||||||
| 12 V | 360 Ω | 34 mA | • with JST SH-style connector, assembled | 5666 | $14.95 | |||||
| • with 0.1″ headers, assembled | 2487 | $14.95 | ||||||||
| • with 0.1″ headers, partial kit | 2488 | $13.49 | ||||||||
| N/A | N/A | N/A | • carrier board with JST SH-style connector only (no relays) | 5667 | $7.49 | |||||
| • carrier board only (no relays or connectors) | 2484 | $6.95 | ||||||||
Alternatives available with variations in these parameter(s): channels voltage style Select variant…

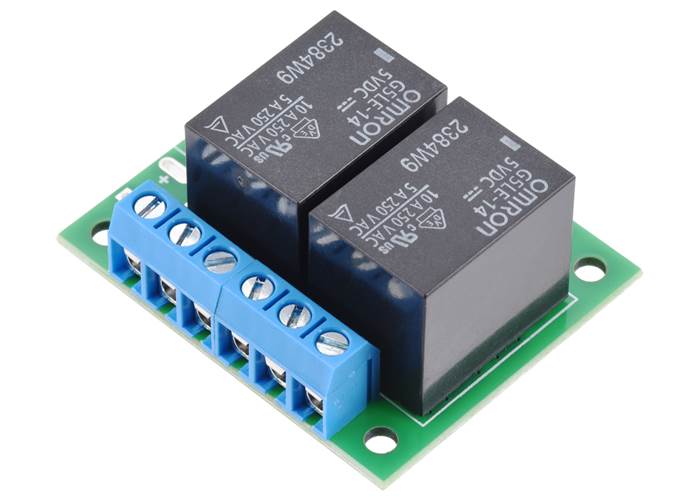

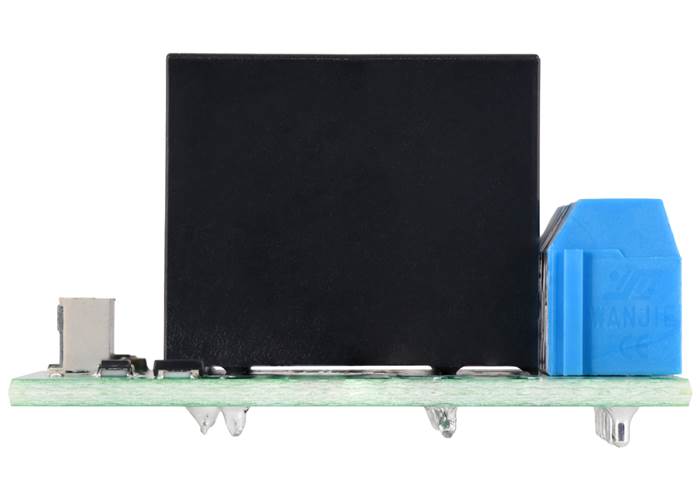

Pololu Basic 2-Channel SPDT Relay Carrier with 5VDC Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector. |

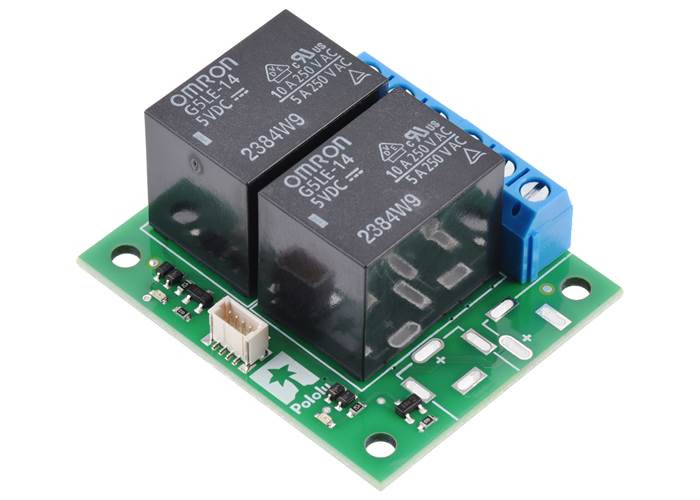

Pololu Basic 2-Channel SPDT Relay Carrier with 5VDC Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector. (1) |

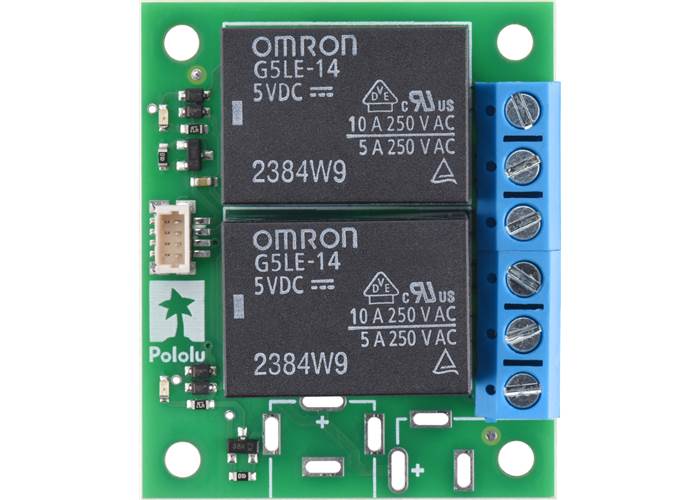

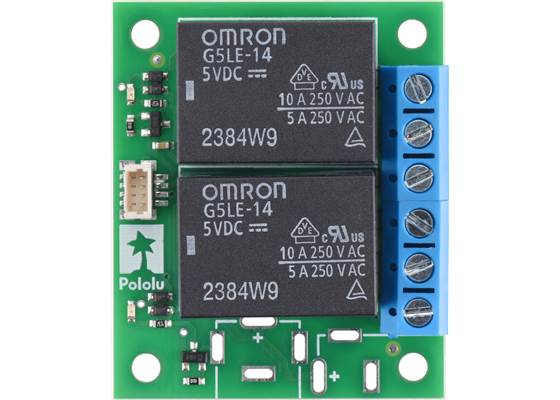

Top view of the Pololu Basic 2-Channel SPDT Relay Carrier with 5VDC Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector. |

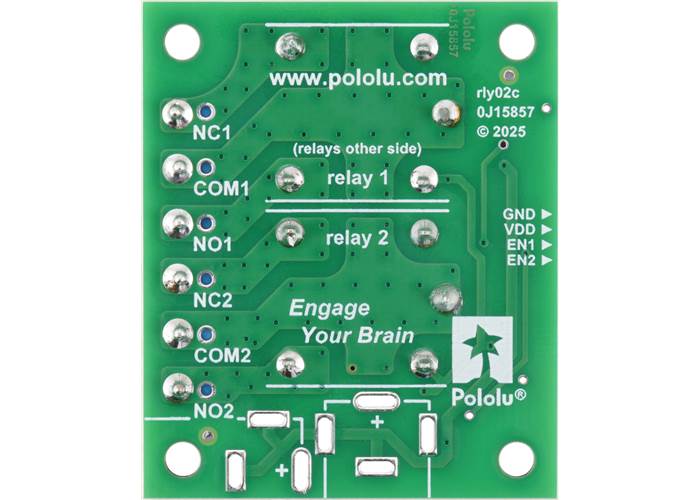

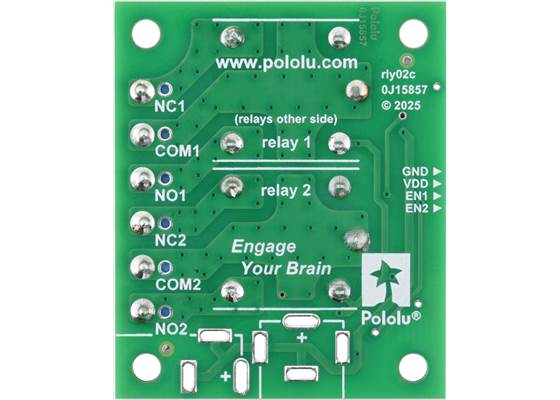

Bottom view of the Pololu Basic 2-Channel SPDT Relay Carrier with Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector. |
This carrier version is assembled with two Omron G5LE-14-DC5 5 V relays, which are rated for up to 10 A each under most conditions, and connectors. It has a pair of soldered 3-pin, 5mm-pitch terminal blocks for the switch connections and a top-entry, 4-pin JST SH-style connector for the control connections. This control connector works with our 4-pin JST SH-style cables (cable not included). The connector is also compatible with SparkFun’s Qwiic and Adafruit’s STEMMA QT cables, but please note that the interface is not I²C.

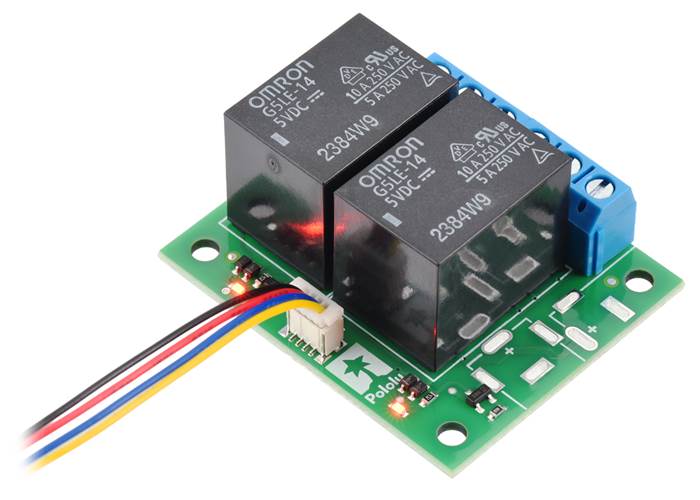

Pololu Basic 2-Channel SPDT Relay Carrier with 5VDC Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector (JST SH cable not included)
| JST SH-Style 4-Pin Cables | |||||
|---|---|---|---|---|---|
| Pins | Terminations | Length | Item # | Price | |
| 4 | double-sided (female-female) |
10 cm (4″) | #5523 | $2.31 | |
| 16 cm (6.3″) | #5524 | $2.51 | |||
| 25 cm (10″) | #5525 | $2.81 | |||
| 40 cm (16″) | #5526 | $3.30 | |||
| 63 cm (25″) | #5527 | $4.06 | |||
| single-sided (female-unterminated) |
12 cm (4.5″) | #5520 | $1.44 | ||
| 30 cm (12″) | #5521 | $2.04 | |||
| 75 cm (30″) | #5522 | $3.53 | |||

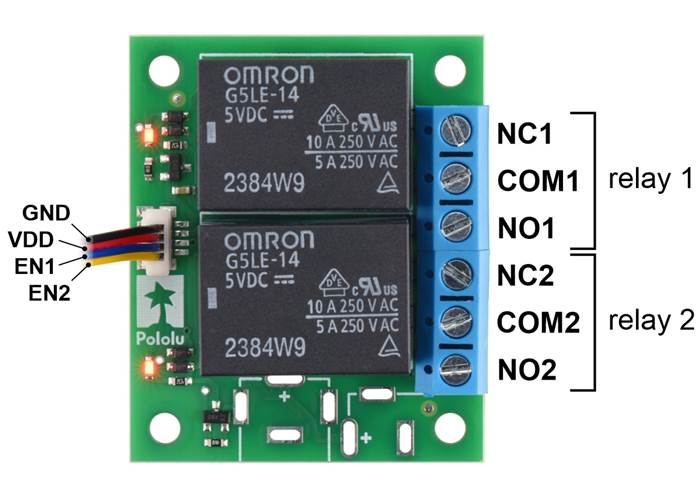

Pinout of the Pololu Basic 2-Channel SPDT Relay Carrier with 5VDC Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector (JST SH cable not included). |

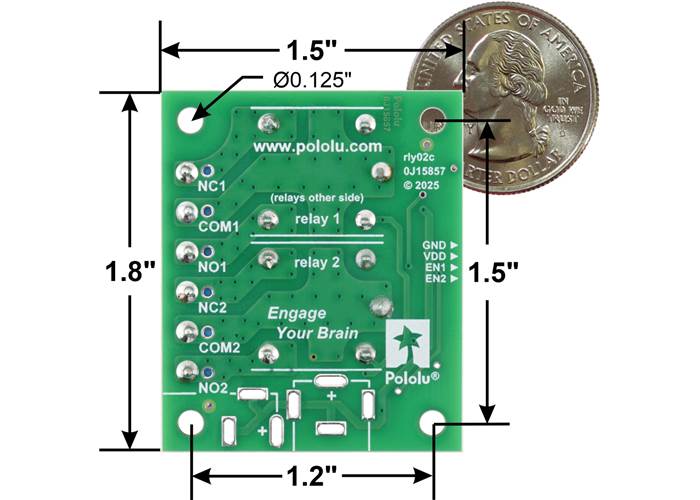

Pololu Basic 2-Channel SPDT Relay Carrier with Relays, Terminal Blocks, and JST SH-Style Top-Entry Connector, bottom view with basic dimensions and a US quarter for size reference. |
The switch portions of the relays (NCx, COMx, and NOx) are accessible on one side of the board via the 3-pin terminal block while the control pins (GND, VDD, EN1, and EN2) are routed to the 4-pin JST SH-style connector on the other side. The 5 V relay coils are powered by supplying 5 V across the VDD and GND pins, and they are activated by digital high (2.5 V to 20 V) control signals on the respective EN pins. The control signals are fed directly to BSS138K N-channel MOSFETs, which in turn actuate the relay coils when the control voltages exceed approximately 2.5 V, up to a maximum of 20 V (see BSS138K datasheet (517k pdf) for details). Each relay has a corresponding red LED that lights up when the relay coil is active. The carrier board has four mounting holes that work with #4 or M3 screws.
The relay switch terminals COM (common), NO (normally open), and NC (normally closed) are routed on the PCB with a minimum clearance/creepage of 60 mil (1.5 mm) from other copper. The copper traces are designed to be at least 45 mil (1.1 mm) from the board edges, though manufacturing variations in the board edges can make those distances slightly lower.
In most applications, the current and voltage ratings for the module will match the ratings of the relay used. Maximum current, maximum voltage, and life expectancy are interdependent; we therefore recommend careful examination of your relay’s datasheet.
Warning: This product is not designed to or certified for any particular high-voltage safety standard. Working with voltages above 30 V can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.

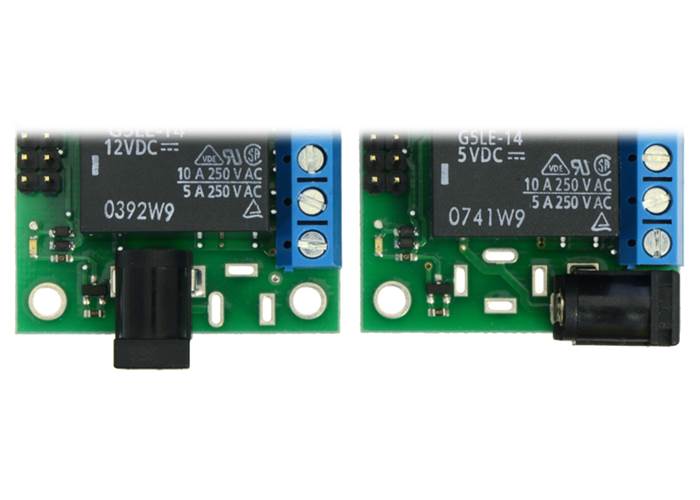

A DC barrel jack can optionally be added in two possible orientations to supply power to the Pololu basic 2-channel SPDT relay carrier.
The carrier board makes it possible to optionally power the relays from a DC barrel jack (not included). The DC barrel jack can be placed in three configurations, two of which are shown in the pictures above (the jack can also be installed in one configuration on the bottom side of the PCB).

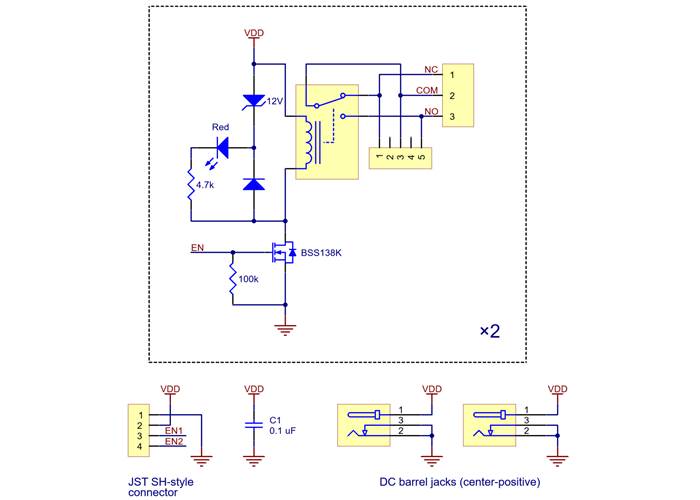

Schematic diagram of the Pololu basic 2-channel SPDT relay carrier with JST SH-style connector.
This schematic is also available as a downloadable pdf (126k pdf).
| Size: | 1.8″ × 1.5″ × 0.9″ |
|---|---|
| Weight: | 34 g |
| Channels: | 2 |
|---|---|
| Voltage: | 5 V |
| Partial kit?: | N |
| Style: | assembled with relays, JST SH-style connector, and 5mm terminal blocks |
| PCB dev codes: | rly02c |
|---|---|
| Other PCB markings: | 0J15857 |
This DXF drawing shows the locations of all of the board’s holes.
