Pololu Basic SPDT Relay Carrier with 5VDC Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals.

AUD$ 12.95

Special Order

Shipping from $9.90

+229 more from our supplier in 7-10 days

Our Code: SKU-011004

Supplier Link: [Pololu MPN:5662]

Description

Overview

The Pololu basic relay carrier modules make it easy to control electrically isolated, single-pole, double-throw (SPDT) switches from low-voltage, low-current control signals. The modules are available in single-channel and dual-channel versions with 5 V or 12 V power relays—Omron G5LE-14-DC5 and G5LE-14-DC12 (1MB pdf), respectively—and with a variety of connector and assembly options.

The following table lists the available Pololu basic SPDT relay carrier options:

	Channels	Board size	Mounting holes	DC power jack option	Relay coil voltage	Coil resistance	Active current at rated voltage	Connector and assembly options	Item #	Price

Single-relay	1	1.15″ × 1.0″	4× 0.086″ (#2 or M2)	no	5 V	63 Ω	80 mA	• with JST SH-style connector, assembled	5662	$7.95
								• with 0.1″ headers, assembled	2480	$7.95
								• with 0.1″ headers, partial kit	2481	$6.95
					12 V	360 Ω	34 mA	• with JST SH-style connector, assembled	5663	$7.95
								• with 0.1″ headers, assembled	2482	$7.95
								• with 0.1″ headers, partial kit	2483	$6.95
					N/A	N/A	N/A	• carrier board with JST SH-style connector only (no relay)	5664	$3.95
					N/A	N/A	N/A	• carrier board only (no relay or connectors)	2479	$3.95


Dual-relay	2	1.5″ × 1.8″	4× 0.125″ (#4 or M3)	yes	5 V	63 Ω	80 mA	• with JST SH-style connector, assembled	5665	$14.95
								• with 0.1″ headers, assembled	2485	$14.95
								• with 0.1″ headers, partial kit	2486	$13.49
					12 V	360 Ω	34 mA	• with JST SH-style connector, assembled	5666	$14.95
								• with 0.1″ headers, assembled	2487	$14.95
								• with 0.1″ headers, partial kit	2488	$13.49
					N/A	N/A	N/A	• carrier board with JST SH-style connector only (no relays)	5667	$7.49
					N/A	N/A	N/A	• carrier board only (no relays or connectors)	2484	$6.95

Alternatives available with variations in these parameter(s): channels voltage style Select variant…

Details for item #5662

Pololu Basic SPDT Relay Carrier with 5VDC Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector.

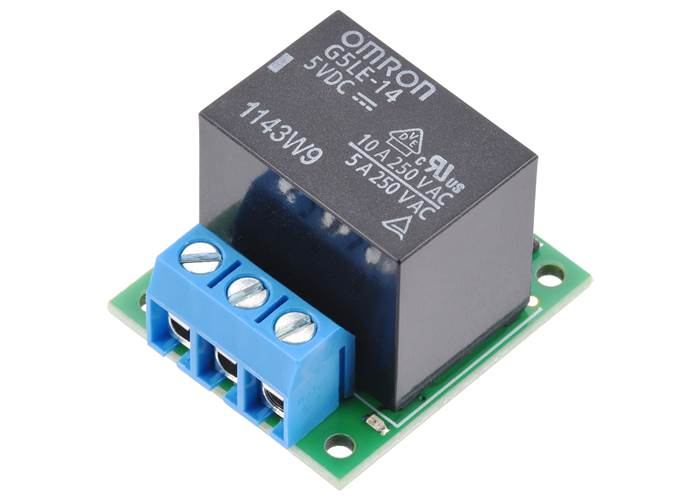

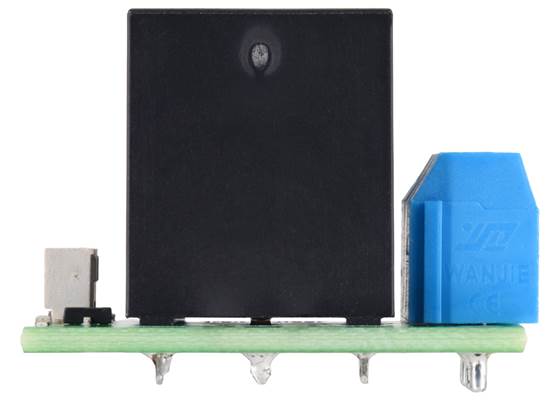

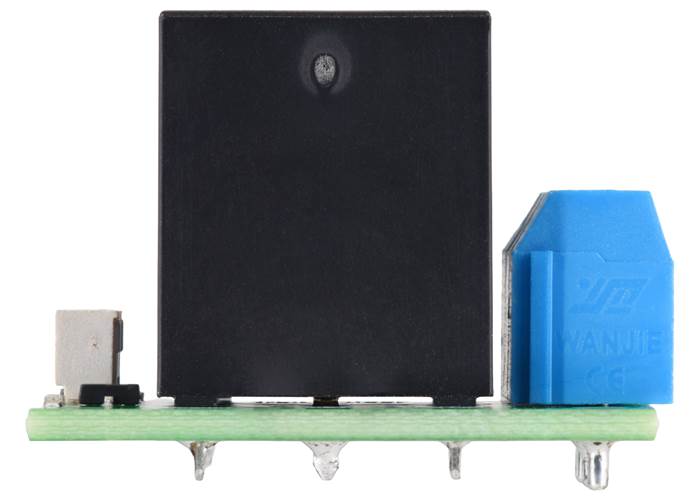

Pololu Basic SPDT Relay Carrier with 5VDC Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector. (1)

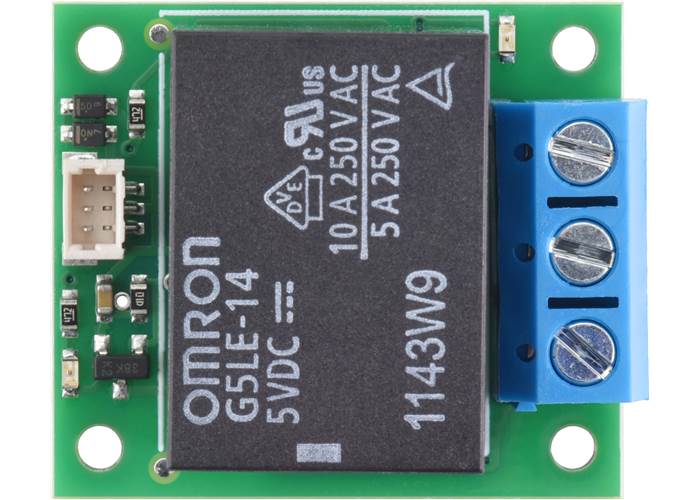

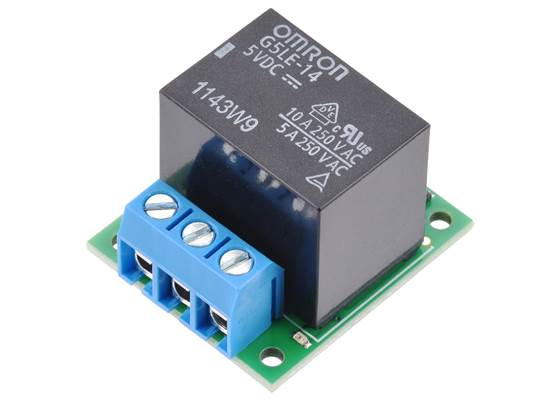

Top view of the Pololu Basic SPDT Relay Carrier with 5VDC Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector.

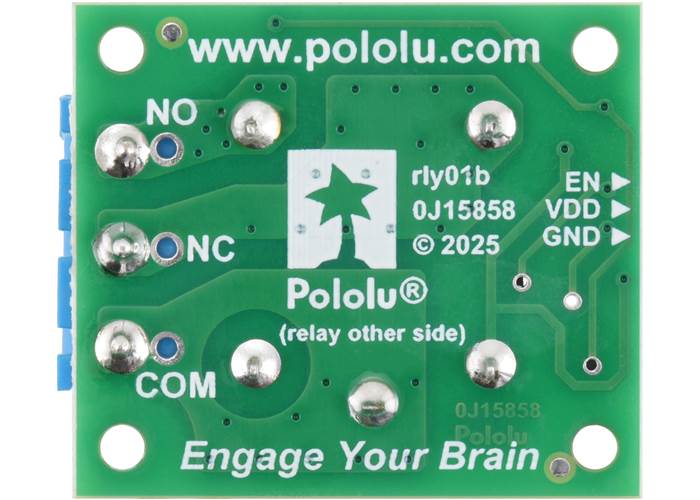

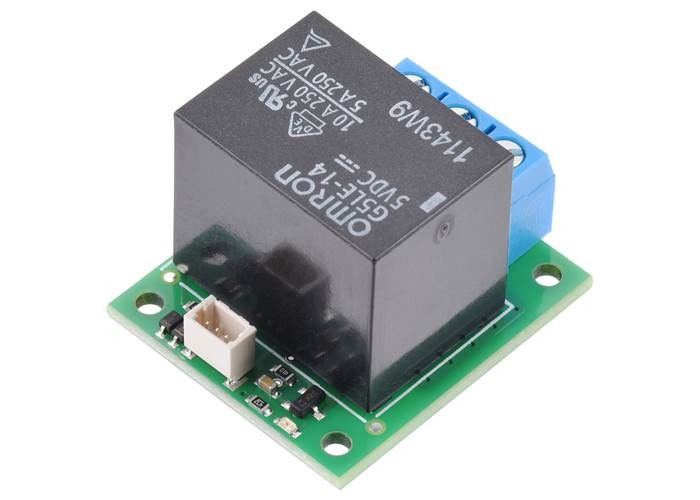

Bottom view of the Pololu Basic SPDT Relay Carrier with Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector.

This carrier version is assembled with an Omron G5LE-14-DC5 5 V relay, which is rated for up to 10 A under most conditions, and connectors. It has a soldered 3-pin, 5mm-pitch terminal blocks for the switch connections and a top-entry, 3-pin JST SH-style connector for the control connections. This control connector works with our 3-pin JST SH-style cables (cable not included).

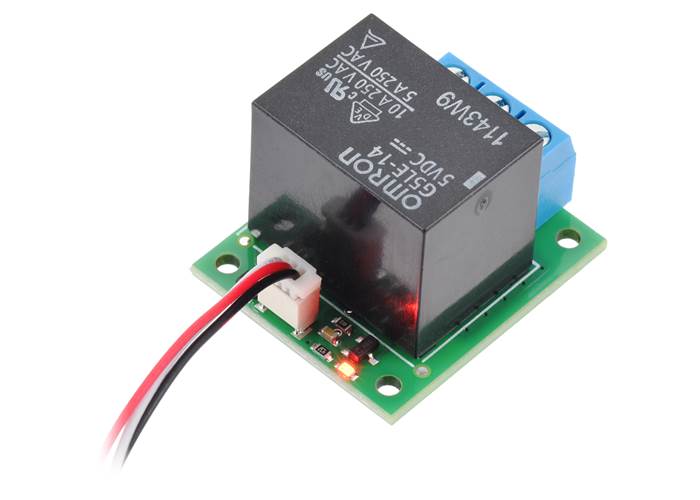

Pololu Basic SPDT Relay Carrier with 5VDC Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector (JST SH cable not included).

JST SH-Style 3-Pin Cables
Pins	Terminations	Length	Item #	Price


3	double-sided (female-female)	10 cm (4″)	#5513	$1.80
		16 cm (6.3″)	#5514	$1.95
		25 cm (10″)	#5515	$2.18
		40 cm (16″)	#5516	$2.55
		63 cm (25″)	#5517	$3.12
	single-sided (female-unterminated)	12 cm (4.5″)	#5510	$1.11
		30 cm (12″)	#5511	$1.56
		75 cm (30″)	#5512	$2.68

Advantages over similar products

Compact layout
Two LEDs to indicate coil actuation
Zener diode for fast current decay on relay coil
Specification of electrical routing clearance/creepage rules on relay switch nodes

Using the relay module

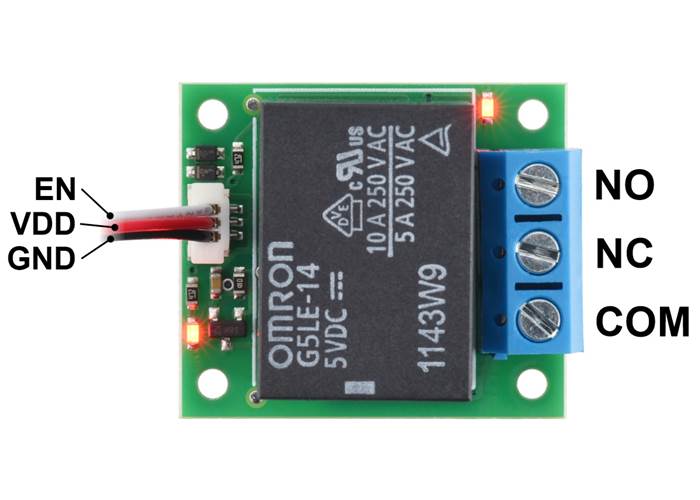

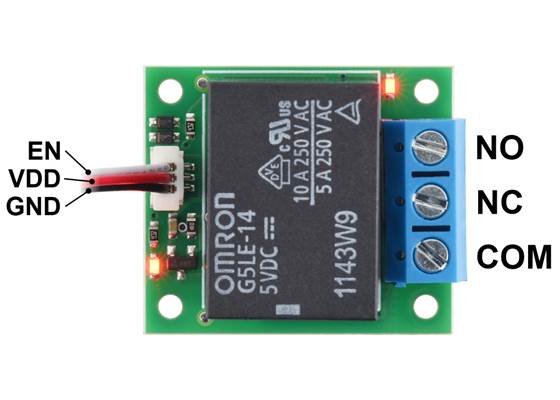

Pinout of the Pololu Basic SPDT Relay Carrier with 5VDC Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector (JST SH cable not included).

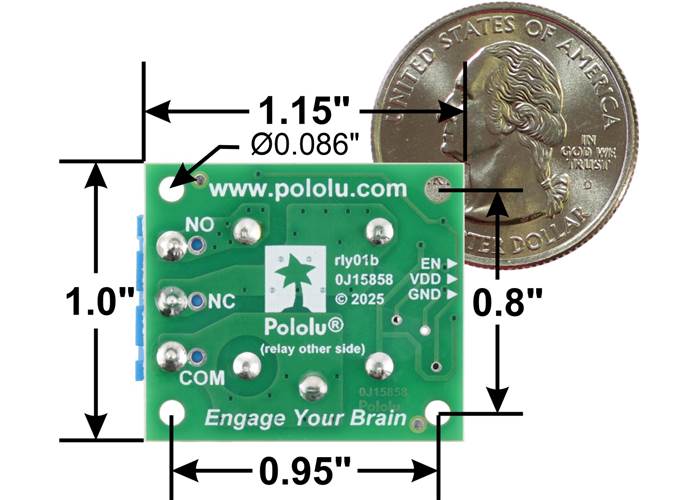

Pololu Basic SPDT Relay Carrier with Relay, Terminal Blocks, and JST SH-Style Top-Entry Connector, bottom view with basic dimensions and a US quarter for size reference.

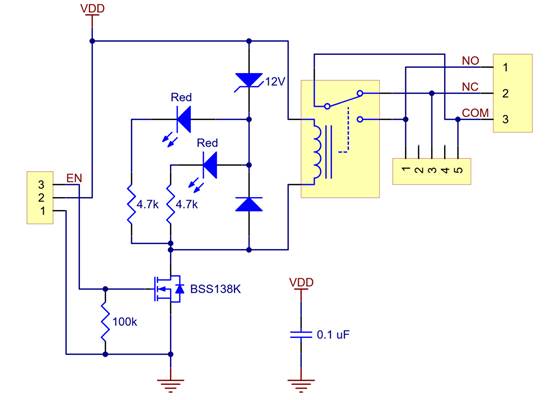

The switch portion of the relay is accessible on one side of the board via the 3-pin terminal block while the control pins (EN, VDD, GND) are routed to the 3-pin JST SH-style connector on the other side. The 5 V relay coil is powered by supplying 5 V across the VDD and GND pins, and it is activated by a digital high (2.5 V to 20 V) control signal on the EN pin. The control signal is fed directly to a BSS138K N-channel MOSFET, which in turn actuates the relay coil when the control voltage exceeds approximately 2.5 V, up to a maximum of 20 V (see BSS138K datasheet (517k pdf) for details). Red LEDs on either side of the relay light up when the relay coil is active. The carrier board has four mounting holes that work with #2 or M2 screws.

The relay switch terminals COM (common), NO (normally open), and NC (normally closed) are routed on the PCB with a minimum clearance/creepage of 60 mil (1.5 mm) from other copper. The copper traces are designed to be at least 45 mil (1.1 mm) from the board edges, though manufacturing variations in the board edges can make those distances slightly lower.

In most applications, the current and voltage ratings for the module will match the ratings of the relay used. Maximum current, maximum voltage, and life expectancy are interdependent; we therefore recommend careful examination of your relay’s datasheet.

Warning: This product is not designed to or certified for any particular high-voltage safety standard. Working with voltages above 30 V can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.
