Breakout for JST SH-Style Connector, 3-Pin Male Side-Entry (2-Pack)

These simple boards serve as adapters between a JST SH-style 3-pin male connector and breadboard-compatible 0.1″-pitch through holes. They work with our assortment of 3-pin female JST SH-style cables .

AUD$ 2.50

Special Order

Shipping from $2.90

+259 more from our supplier in 7-10 days

Our Code: SKU-010901

Supplier Link: [Pololu MPN:4813]

Description

Details for item #4813

This product is a 2-pack of JST SH-style connector adaptor boards featuring a 3-pin, side-entry connector.

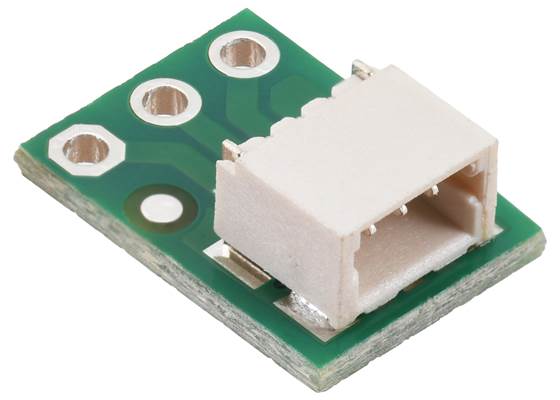

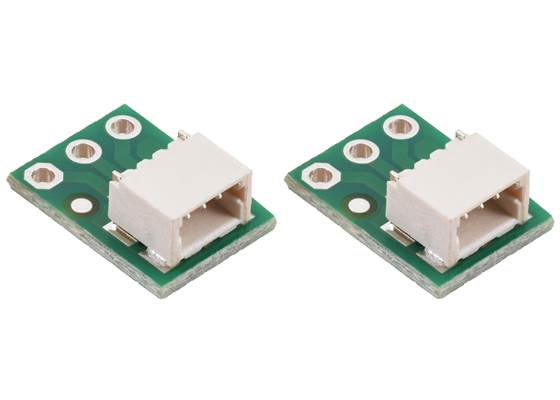

Breakout for JST SH-Style Connector, 3-Pin Male Side-Entry (2-Pack).

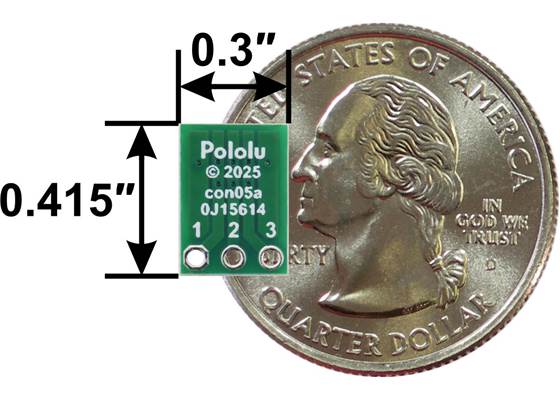

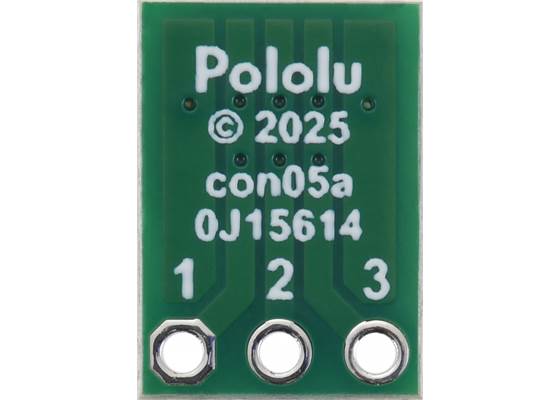

Breakout for JST SH-Style Connector, 3-Pin Male, bottom view with dimensions.

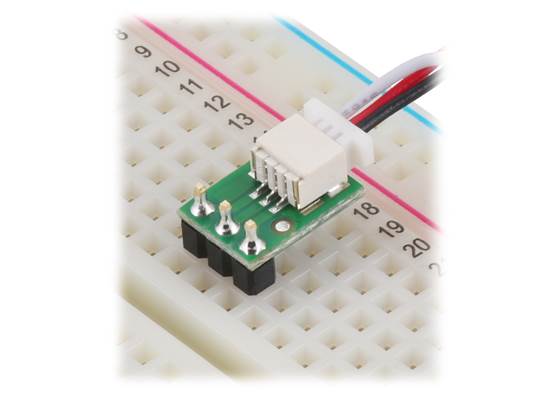

Breakout for JST SH-Style Connector, 3-Pin Male Side-Entry in a breadboard.

We have various cables that work with these breakout boards that are available in double-sided or single-sided versions of varying lengths. The double-sided versions have twisted wires and female JST SH-type connectors on both ends, and single-sided versions have a female connector on one end and unterminated wires on the other.

JST SH-Style 3-Pin Cables
Pins	Terminations	Length	Item #	Price


3	double-sided (female-female)	10 cm (4″)	#5513	$1.80
		16 cm (6.3″)	#5514	$1.95
		25 cm (10″)	#5515	$2.18
		40 cm (16″)	#5516	$2.55
		63 cm (25″)	#5517	$3.12
	single-sided (female-unterminated)	12 cm (4.5″)	#5510	$1.11
		30 cm (12″)	#5511	$1.56
		75 cm (30″)	#5512	$2.68

Breakout for JST SH-style connector family overview

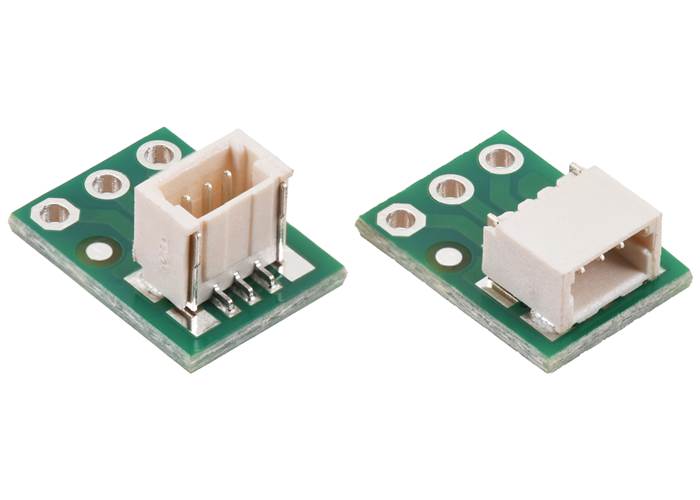

Our JST SH-type connector breakout boards provide access to each pin on a row of 0.1″-pitch through holes, making them compatible with standard solderless breadboards. They are available in a variety of pin counts and connector styles:

Top entry	Side entry


2-pin



3-pin



4-pin



5-pin



6-pin

The connectors are rated for up to 1 A per pin and 50 V and are compatible with our female JST SH-style cables. The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers, which are available separately:

Additionally, all versions of these boards except the 6-pin side-entry variation will work with our 0.1″ screw terminal blocks.

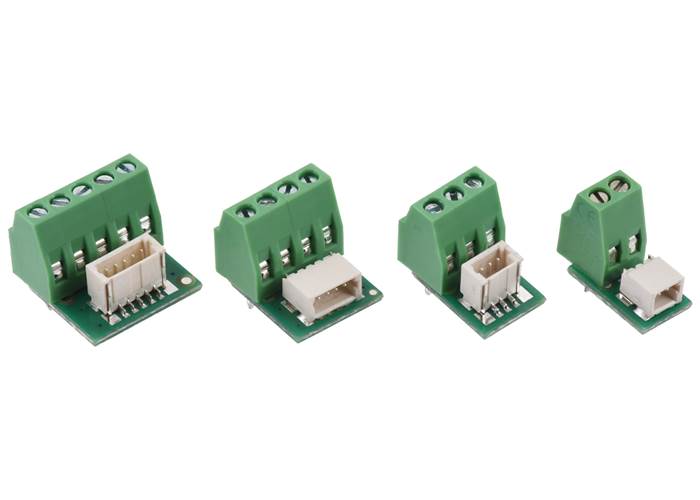

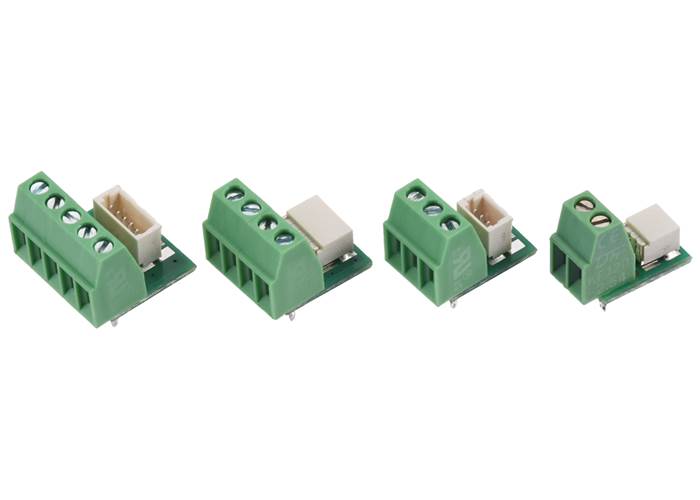

Breakout boards for JST SH-Style Connectors with 0.1″ pitch screw terminal blocks.

JST PH-style connector boards with SH

We also have an assortment of larger, more versatile JST PH-style connector breakout boards. These have both JST PH-style (2.0 mm pitch) and SH-style (1.0 mm pitch) connectors as well as 0.1″-pitch through holes, providing more connection options, including the ability work as a PH-to-SH adaptor:
