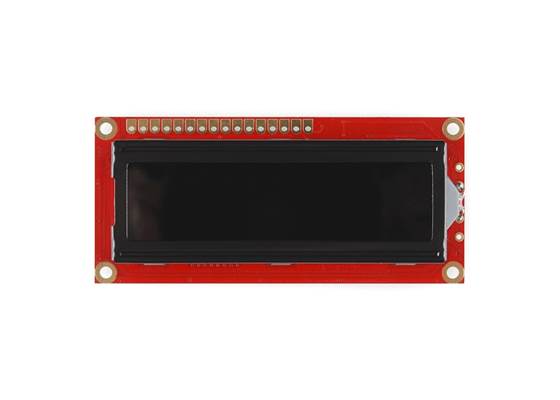

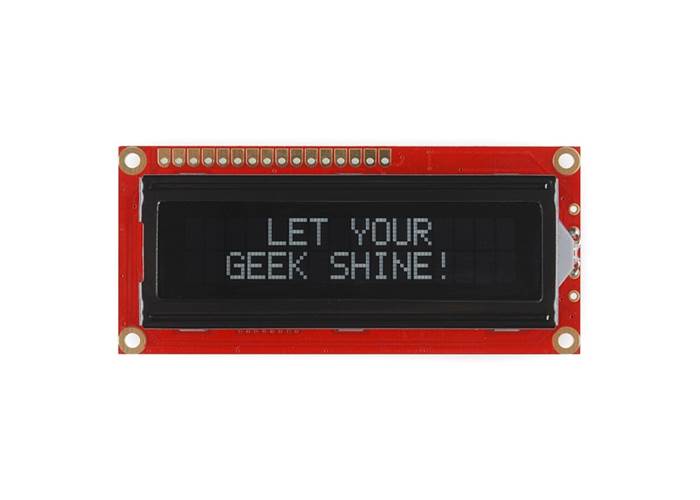

This is a basic 16 character by 2 line display with a snazzy black background with white characters. Utilizes the extremely common HD44780 parallel interface chipset ( datasheet ). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen.
Special Order
Shipping from $2.90
+100 more from our supplier in 7-10 days
Our Code: SKU-000106
Supplier Link: [SparkFun MPN:709]
This is a basic 16 character by 2 line display with a snazzy black background with white characters. Utilizes the extremely common HD44780 parallel interface chipset (datasheet). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Includes white LED backlight.

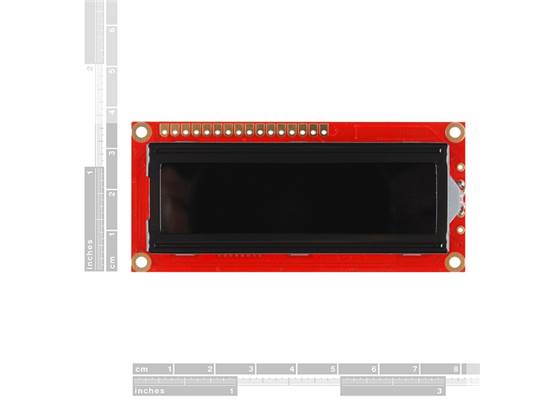

Dimensions: 3.15" x 1.425"
