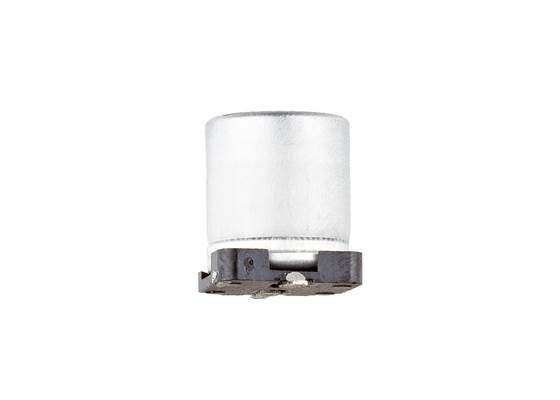

Surface Mount Capacitor - 22µF, 35V, 20%

This is a surface mount aluminium electrolytic capacitor.

AUD$ 0.55

Special Order

Shipping from $4.90

+1745 more from our supplier in 7-10 days

Our Code: SKU-010683

Supplier Link: [SparkFun MPN:26985]

Description

This is a surface mount aluminium electrolytic capacitor. With a capactiance of 22µF, voltage range of 35V and a tolerance of ±20%.

Sold as individual units.

NOTE: Not recommended for new designs.

Specifications

  • Capacitance: 22µF
  • Tolerance: ±20%
  • Voltage - Rated: 35V
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • Operating Temperature: -40°C ~ 85°C
  • Polarization: Polar
  • Ripple Current @ Low Frequency: 41 mA @ 120 Hz
  • Ripple Current @ High Frequency: 44.28 mA @ 100 kHz
  • Size / Dimension: 0.197" Dia (5.00mm)
  • Height - Seated (Max): 0.205" (5.20mm)
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Mounting Type: Surface Mount
