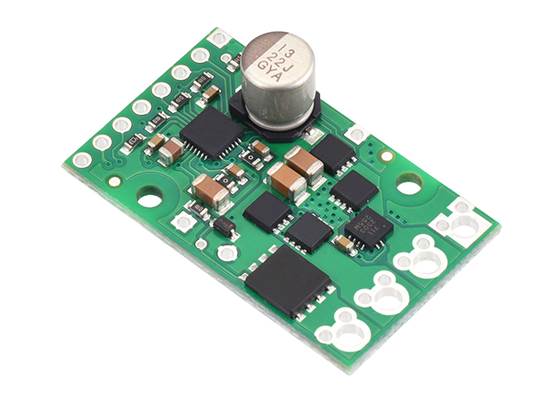

Pololu H2 High-Power Motor Driver 36v11 CS

This discrete MOSFET H-bridge motor driver enables bidirectional control of one high-power DC brushed motor. The small 1.3″ × 0.8″ board supports a wide 5 V to 60 V voltage range and is efficient enough to deliver a continuous 11 A without a heat sink.

AUD$ 74.95

Special Order

Shipping from $7.90

+250 more from our supplier in 7-10 days

Our Code: SKU-010627

Supplier Link: [Pololu MPN:2993]


Description

Overview

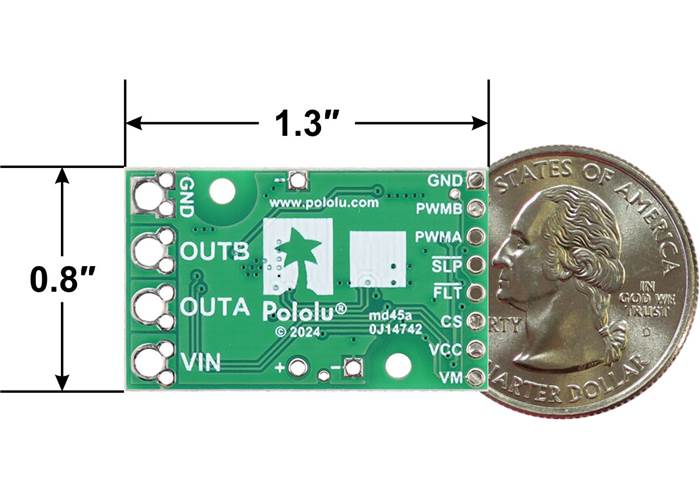

Pololu H2 High-Power Motor Driver 36v11 CS, bottom view with US quarter for size reference.

The Pololu H2 high-power motor driver 36v11 CS is a discrete MOSFET H-bridge designed to drive large brushed DC motors. The H-bridge is made up of one N-channel MOSFET per leg; the rest of the board contains the circuitry to take user inputs and control the MOSFETs. The absolute maximum voltage for this motor driver is 60 V, and higher voltages can permanently destroy the motor driver. Under normal operating conditions, ripple voltage on the supply line can raise the maximum voltage to more than the average or intended voltage, so a safe maximum voltage is approximately 48 V.

Note: Battery voltages can be much higher than nominal voltages when they are charged, so the maximum nominal battery voltage we recommend is 36 V (and use with 48 V batteries is not recommended) unless appropriate measures are taken to limit the peak voltage.

The versatility of this driver makes it suitable for a large range of currents and voltages: it can deliver up to 11 A of continuous current with a board size of only 1.3″ × 0.8″ and no required heat sink. The module offers a simple interface that requires as few as two I/O lines, and an on-board current sensor gives a direct measurement of motor current. The power supply inputs feature reverse-voltage protection, while integrated detection of various fault conditions helps protect against other common causes of catastrophic failure; however, please note that the board does not include over-temperature protection. We recommend you use the integrated current sensor to keep the driver from delivering more current than it can safely handle.

Features

  • Operating voltage: 5 V to 60 V (absolute maximum)
  • Maximum continuous output current: 11 A
  • Inputs compatible with 3.3 V, and 5 V logic
  • On-board current sensor directly measures motor current
  • Reverse-voltage protection
  • Undervoltage shutdown
  • Short circuit protection

G2 and H2 high-power motor driver versions

There are four versions of the single-channel G2 high-power motor drivers that share compatible pinouts, and eight versions of the dual-channel G2 high-power motor drivers. Four of the dual-channel drivers have the form factor of an Arduino shield, but they can also be used with other controllers as general-purpose motor drivers. The other four dual-channel drivers are in the form factor of a Raspberry Pi HAT and compatible Raspberry Pi boards (Model B+ or newer). We also have a higher-voltage, single-channel H2 high-power motor driver with the same form factor as the single-channel G2 drivers, but the control interface and some aspects of the operation are different. The following table provides a general comparison of the G2 and H2 drivers:

Pololu G2 High-Power Motor Drivers
Motor
channels
Name Absolute max
input voltage
Max nominal
battery voltage
Max continuous
current per
channel
Default active
current-limiting
threshold
1 G2 High-Power Motor Driver 18v25 30 V 18 V 25 A 60 A
G2 High-Power Motor Driver 18v17 17 A 40 A
G2 High-Power Motor Driver 24v21 40 V 28 V 21 A 50 A
G2 High-Power Motor Driver 24v13 13 A 30 A
H2 High-Power Motor Driver 36v11 CS 60 V 36 V 11 A
2 Dual G2 High-Power Motor Driver 18v22 Shield 30 V 18 V 22 A 60 A
Dual G2 High-Power Motor Driver 18v18 Shield 18 A 50 A
Dual G2 High-Power Motor Driver 24v18 Shield 40 V 28 V 18 A 50 A
Dual G2 High-Power Motor Driver 24v14 Shield 14 A 40 A
Dual G2 High-Power Motor Driver 18v22 for RPi 30 V 18 V 22 A 60 A
Dual G2 High-Power Motor Driver 18v18 for RPi 18 A 50 A
Dual G2 High-Power Motor Driver 24v18 for RPi 40 V 28 V 18 A 50 A
Dual G2 High-Power Motor Driver 24v14 for RPi 14 A 40 A

Pololu G2 High-Power Motor Driver 24v21 and 24v13.

Pololu Dual G2 High-Power Motor Driver 24v18 Shield for Arduino.

Pololu Dual G2 High-Power Motor Driver 24v14 Shield for Arduino.

Pololu Dual G2 High-Power Motor Driver 18v18 for Raspberry Pi.

Pololu Dual G2 High-Power Motor Driver 18v22 for Raspberry Pi.

Note: As an alternative to these motor drivers, our Simple Motor Controllers have similar power characteristics and offer high-level interfaces (e.g. USB, RC hobby servo pulses, analogue voltages, and TTL serial commands) that make them easier to use for some applications.

Using the motor driver

Connections

The motor and motor power connections are on one side of the board, and the control connections (3 V to 5 V logic) are on the other side. The motor supply should be capable of supplying high current. There are two options for making the high-power connections (VIN, OUTA, OUTB, GND): large holes spaced 5 mm apart, which are compatible with the included terminal blocks, and pairs of 0.1″-spaced holes that can be used with perfboards, breadboards, and 0.1″ connectors.

For good performance, it is very important to install a large capacitor across the motor supply and ground close to the motor driver. We generally recommend using a capacitor of at least a few hundred μF and rated well above the maximum supply voltage; the required capacitance will be greater if the power supply is poor or far (more than about a foot) from the driver, and it will also depend on other factors like motor characteristics and applied PWM frequency. A through-hole capacitor can be installed directly on the board in the holes labelled '+' and '−' (connected to VM and GND, respectively). The driver includes an on-board 22 µF capacitor, which might be sufficient for brief tests and limited low-power operation, but adding a bigger capacitor is strongly recommended for most applications.

Warning: Take proper safety precautions when using high-power electronics. Make sure you know what you are doing when using high voltages or currents! During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.

The logic connections are designed to interface with 3 V to 5 V systems (5.5 V max).

Pinout

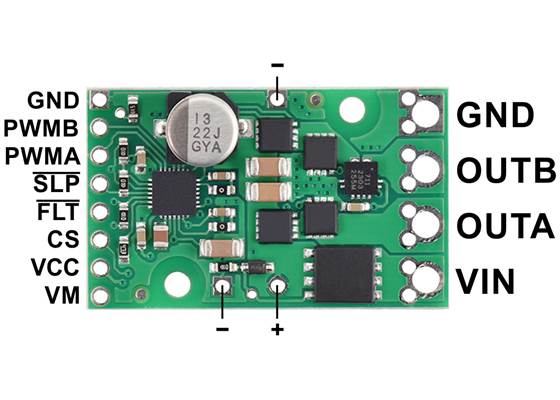

Pololu H2 High-Power Motor Driver 36v11 CS, top view with labeled pinout.

PIN Default State Description
VIN   This is the main 5 V to 60 V (absolute max) motor power supply connection.
VM   This pin gives you access to the motor power supply after reverse-voltage protection. It can be used to supply reverse-protected power to other components in the system, but it should not be used for high currents. This pin should only be used as an output.
+, −   These pads are intended for a power supply capacitor (they are connected to VM and GND, respectively).
VCC   3 V to 5.5 V logic supply voltage input. Be careful not to accidentally short this pin to the neighbouring VM pin while power is being supplied as doing so will instantly destroy the board!
GND   Ground connection for logic and motor power supplies.
OUTA   Motor output pin A (connects to one terminal of a DC motor).
OUTB   Motor output pin B (connects to the other terminal of a DC motor).
PWMA LOW Pulse width modulation input A: a PWM signal on this pin corresponds to a PWM output on OUTA.
PWMB LOW Pulse width modulation input B: a PWM signal on this pin corresponds to a PWM output on OUTB.
SLP HIGH Inverted sleep input: This pin is pulled high by the driver board, enabling the driver by default; drive SLP low to put the motor driver into a low-power sleep mode.
FLT   Fault indicator: This output is normally pulled up to VCC and is driven low when a fault has occurred. See below for details.
CS   Current sensor output: This pin outputs a voltage proportional to the motor current. See below for details.

Motor control

The only required control pins are PWMA and PWMB. These inputs directly control the state of the corresponding OUTA and OUTB pins, as shown in the following truth table:

Pololu H2 High-Power Motor Driver Truth Table
PWMA PWMB OUTA OUTB operating mode
0 0 L L brake low (outputs shorted to ground)
PWM 0 PWM (H/L) L forward/brake at speed PWM %
0 PWM L PWM (H/L) reverse/brake at speed PWM %
1 1 H H brake high (outputs shorted to VM)

PWM frequency

The motor driver supports PWM frequencies as high as 100 kHz, but note that switching losses in the driver will be proportional to the PWM frequency. Typically, around 20 kHz is a good choice since it is high enough to be ultrasonic, which results in quieter operation.

A high pulse on the PWM pin must be high for a minimum duration of approximately 0.25 µs before the outputs turn on for the corresponding duration (any shorter input pulse does not produce a change on the outputs), so low duty cycles become unavailable at high frequencies. For example, at 100 kHz, the pulse period is 10 µs, and the minimum non-zero duty cycle achievable is 0.25/10, or 2.5%.

Minimum off time

While the driver supports 100% duty cycle operation, any low pulse on the PWM inputs must be at least 0.3 µs long to prevent spurious, latched triggering of the short-circuit fault. This corresponds to duty cycles below 99.4% at 20 kHz or below 97% at 100 kHz. To avoid these spurious faults, we recommend capping the duty cycles provided to the driver inputs at the maximum duty cycle or jumping from the maximum directly to 100% (for example, at 20 kHz, do not go above 99%, or jump from 99% to 100% if 100% operation is preferable to 99%).

Current sensor

The motor driver’s current sense pin, CS, outputs a voltage proportional to the motor current and VCC voltage. The CS voltage, VCS, is centred at VCC/2 when there is no current flowing and changes by about 90 mV/A when VCC is 3.3 V or 136 mV/A when VCC is 5 V. Current flowing from OUTA to OUTB is considered positive and increases VCS, while current flowing from OUTB to OUTA decreases VCS:

``V_"CS" = V_"CC" / 2 + 0.090 text(V)/text(A) * V_"CC" / (3.3 text(V)) * I_"A→B" = V_"CC" * (1/2 + I_"A→B" / (36.7 text(A)))``

``I_"A→B" = 36.7 text(A) * (V_"CS" / V_"CC" – 1/2)``

The total measurable current range is -15 A to +15 A. For details, see the ACS711 datasheet (533k pdf). (The version used on this driver is the ACS711KEXLT-15AB-T.)

Fault conditions

The motor driver can detect several fault states that it reports by driving the FLT pin low; this pin is otherwise pulled up to VCC. The detectable faults include short circuits on the outputs, under-voltage, and over-temperature. All of the faults disable the motor outputs and are latched, meaning the driver will remain disabled until the SLP pin is toggled or VIN (motor power) is removed and reapplied. The over-temperature fault provides a weak indication of the board being too hot, but it does not directly indicate the temperature of the MOSFETs, which are usually the first components to overheat, so you should not count on this fault to prevent damage from over-temperature conditions. Additionally, note that spurious short-circuit faults can occur if minimum off time requirements are not respected (see the Minimum off time section above).

Real-world power dissipation considerations

The MOSFETs can handle large current spikes for short durations (e.g. 100 A for a few milliseconds). The peak ratings are for quick transients (e.g. when a motor is first turned on), and the continuous rating of 11 A is dependent on various conditions, such as the ambient temperature. PWMing the motor will introduce additional heating proportional to the frequency. The actual current you can deliver will depend on how well you can keep the motor driver cool. The driver’s printed circuit board is designed to draw heat out of the MOSFETs, but performance can be improved by adding a heat sink.

Warning: This motor driver has no over-current or over-temperature shut-off. Either condition can cause permanent damage to the motor driver. We recommend you use the current-sense output CS to monitor your current draw if your application will put the driver close to its limits of operation.

Included hardware

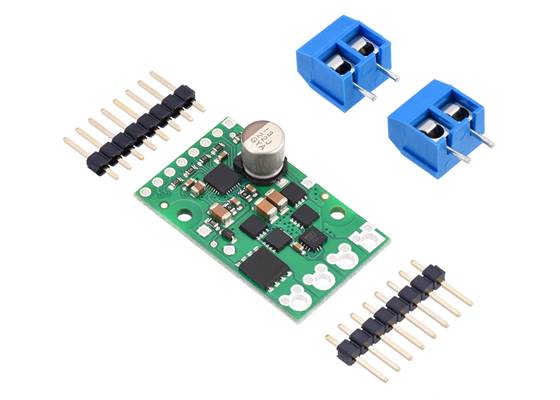

Pololu H2 High-Power Motor Driver 36v11 CS with included hardware.

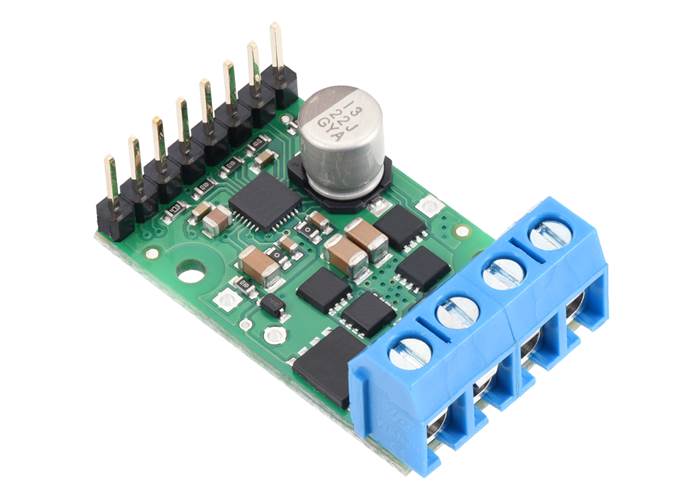

Pololu H2 High-Power Motor Driver 36v11 CS, assembled with terminal blocks and header pins.

Two 8-pin straight breakaway male headers and a 4-pin set of 5mm terminal blocks are included with each motor driver. Please note that the terminal blocks might come as one continuous (not separable) 4-pin piece or as two 2-pin pieces that can slide together to form a 4-pin strip. You can solder the terminal blocks to the four large through-holes to make your motor and motor power connections, or you can solder one of the 1×8 0.1″ header strips into the smaller through-holes that border these larger holes. Note, however, that the terminal blocks are only rated for 16 A, and each header pin pair is only rated for a combined 6 A, so for higher-power applications, thick wires should be soldered directly to the board.

The other 1×8 header strip can be soldered into the small holes on the logic connection side of the board to enable use with solderless breadboards, perfboards, or 0.1″ connectors, or you can solder wires directly to these holes for the most compact installation.

Note: In most applications, it is necessary to connect an additional large capacitor (not included) across the power supply, as described under the Connections section above.

The board has two 0.086″ (2.18 mm) diameter mounting holes intended for #2 or M2 screws (not included); they are separated by 0.62″ (15.75 mm) both horizontally and vertically.

Differences from original and G2 high-power motor drivers

The H2 high-power motor driver is designed to work as a near drop-in replacement for our original high-power motor drivers and G2 high-power motor drivers; this version, the 36v11 CS, is comparable to the original 36v9 but can generally provide higher output currents. The overall board dimensions and locations of the mounting holes are the same for both versions, as are the locations of most of the required pins.

Compared to the original, this second-generation driver adds new features including a wider motor voltage range, reverse-voltage protection on the power supply inputs, and current sensing functionality. It also works with lower logic voltages, making it compatible with 3.3 V systems.

The pinout of the H2 driver differs from the original and G2 drivers in several ways:

  • The H2 driver has two PWM inputs that directly control the state of the corresponding motor outputs, unlike the original and G2 drivers, which have a speed/direction interface.
  • The H2 driver has only one fault pin, which is a normally high output that is driven low when a fault occurs. (The original driver had two fault pins that were driven high to indicate faults, and the G2 drivers have an open-drain fault pin.)
  • A current sense output is available on the G2 driver in place of the second fault pin. Unlike the G2 drivers’ current sense output, which is only active while the H-bridge is driving, the H2 driver has a dedicated current sensor that measures the actual motor current at all times.
  • The H2 driver does not have the current limiting functionality of the G2 drivers.
  • The H2 driver’s VCC pin is a logic voltage input that must be supplied with 3 V to 5.5 V (the original and G2 drivers provide a 5 V or 3.3 V output respectively).

Specifications

Dimensions

Size: 1.3″ × 0.8″
Weight: 3.3 g1

General specifications

Motor channels: 1
Minimum operating voltage: 5 V
Maximum operating voltage: 60 V2
Continuous output current per channel: 11 A3
Current sense: 0.136 V/A4
Minimum logic voltage: 3.0 V
Maximum logic voltage: 5.5 V
Minimum off time: 300 ns5
Reverse voltage protection?: Y

Identifying markings

PCB dev codes: md45a
Other PCB markings: 0J14742, blank white box

Notes:

1
Without included connectors.
2
Absolute maximum; higher voltages can permanently destroy the motor driver. Recommended maximum is approximately 48 V, which leaves a safety margin for ripple voltage on the supply line. Not recommended for use with 48V batteries.
3
Typical results with 100% duty cycle at room temperature.
4
When Vcc = 5 V. Sensitivity is proportional to Vcc.
5
Minimum required for operation below 100% duty cycle; shorter off times can trigger spurious short circuit faults.

Resources


FAQs

Some discrete MOSFET based H-bridges are unable to handle a continuously high PWM signal (100% duty cycle). This has to do with bootstrap capacitors not having enough time to charge. Does this bridge allow 100% duty cycle PWM input?
Yes. The design has an extra charge pump that allows the high-side MOSFETs to stay on indefinitely for 100% duty cycle operation. However, when using high duty cyles below 100%, note that minimum off time requirements must be respected to prevent a spurious latched fault from being triggered. See the “Minimum off time” section on the product page for more information.
