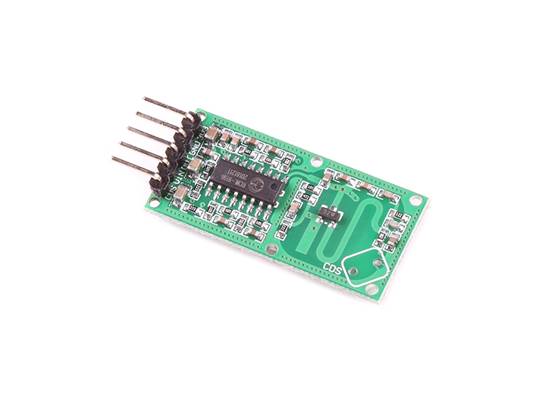

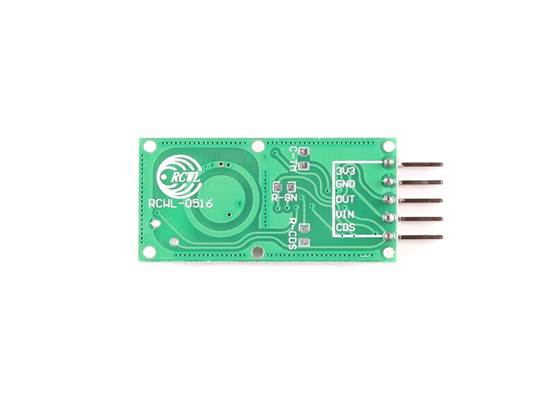

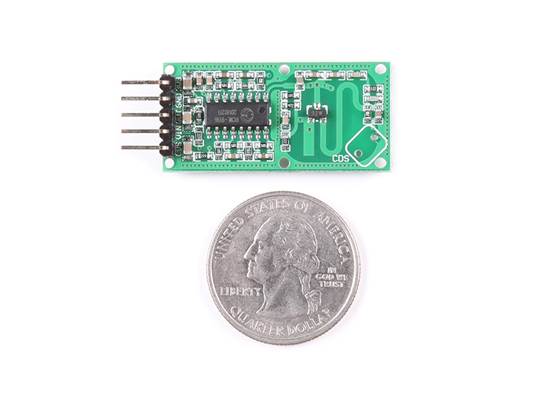

Doppler Radar Sensor Module - RCWL-0516 (with Headers)

The Doppler Radar Sensor Module - RCWL-0516 is a sensor module for detecting moving objects.

AUD$ 4.35

Special Order

Shipping from $2.90

+72 more from our supplier in 7-10 days

Our Code: SKU-009632

Supplier Link: [SparkFun MPN:21242]


Description

The Doppler Radar Sensor Module - RCWL-0516 is a doppler radar microwave sensor module for detecting moving objects. This can act as an alternative to Passive Infrared (PIR) motion sensing. The RCWL-0516 sensor detects "any movement" from "any object" and does not rely on heat, making it more reliable in hot environments.

Unlike the PIR sensor, this is an active sensor. Active sensors send out a pulse of energy and detect the changes in the return signal, while passive sensors detect energy emitted or reflected from an object.

This product come with headers already soldered on.


Specifications

  • Output Voltage: 3.3V
  • Operating Voltage: 4-28V
  • Transmission Power: 20mW (typical), 30mW (max)
  • Maximum Current: ~2.7 mA
  • Detection Distance: 5-7 meters
  • Operating Frequency: ~3.18 GHz
  • Signal Length: ~2s
