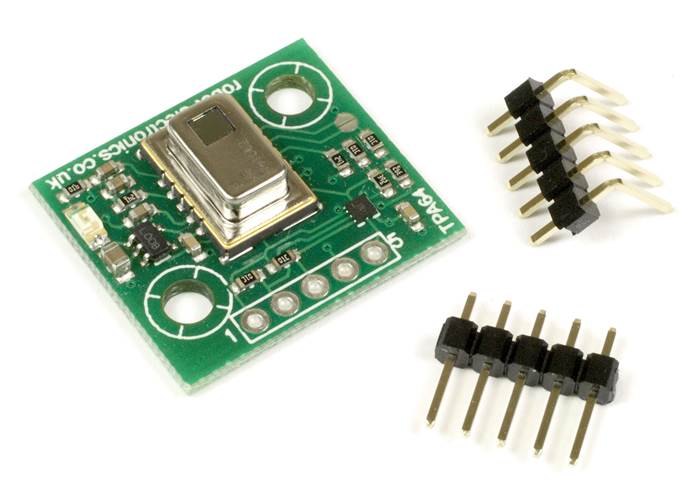

Devantech TPA64 64 Pixel Thermal Imaging Sensor

The Devantech TPA64 thermal imaging sensor measures temperatures from 0°c to +80°c using an 8 x 8 (64 Pixel) array providing an economical, low power and low computation way to detect objects that have different temperatures to their surroundings - like people.

AUD$ 98.95

In stock in Australia

We can ship more in 7 days

Our Code: SEN-010089

The Devantech TPA64 thermal imaging sensor measures temperatures from 0°c to +80°c using an 8 x 8 (64 Pixel) array providing an economical, low power and low computation way to detect objects that have different temperatures to their surroundings - like people.

Utilising the fantastic AMG8833 thermopile array from Panasonic, the TPA64 offers an economical but powerful temperature imaging solution.

Video above is taken from our C# example using a USB-ISS to talk to the TPA64. The top image is raw data painted to the screen, the bottom are after bilinear and bicubic interpolation. The sensor even shows a heatspot for the camera in the top right!

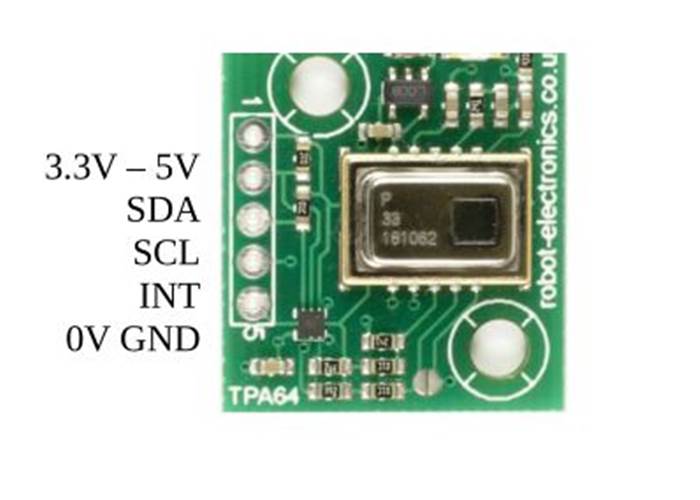

  • 3.3v to 5v operation, with onboard I2C level shifter
  • Temperature detection of two-dimensional area: 8 × 8 (64 pixels)
  • Temperature range of 0°c to +80°c
  • Temperature accuracy of +/- 2.5°c
  • Human detection at up to 7m
  • Viewing angle 60°, optical axis gap 5.6°
  • Current consumption 4.5mA
  • Module defaults to I2C address 0xC2, changeable to 0xC0
  • Weight is only 3g

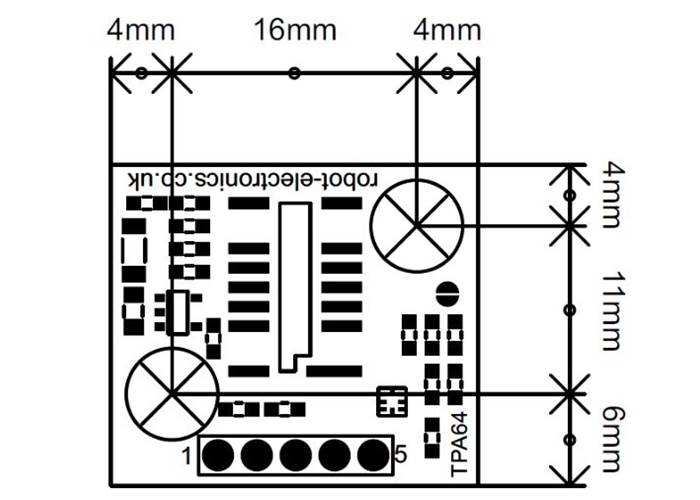

  • Size 24mm x 21mm
