These magnetic discs can be used with our mini plastic gearmotors (extended motor shaft versions only) as part of a quadrature encoder system that offers 12 counts per revolution.
Special Order
Shipping from $2.90
+1205 more from our supplier in 7-10 days
Our Code: SKU-003903
Supplier Link: [Pololu MPN:1524]

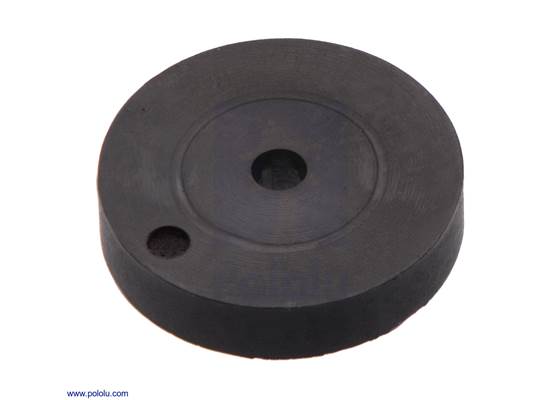

These are the same magnetic discs we include with our magnetic encoder pair kit for mini plastic gearmotors and Romi encoder pair kit. They are 2 mm thick with a 9.7 mm diameter, and the hole through the centre enables them to securely press-fit onto the 1.5mm-diameter motor shafts of our mini plastic gearmotors (extended motor shaft versions only). The disc consists of six evenly spaced magnetic poles (three north-south pairs), which allows for an encoder system that offers 12 counts per revolution.
This bulk-packaged product is primarily intended for those wanting to integrate these encoder discs into their own systems in higher volumes, but the minimum quantity is set to five for those who want to just get a few as replacements or samples. We will package these to order, and quantities shown in stock will be limited to 10 units. We generally expect orders of up to a few hundred units to ship within a day. For larger orders, please contact us for lead time estimates.
| Size: | 9.7 mm outer diameter × 2 mm thick (1.5 mm ID) |
|---|---|
| Weight: | 0.5 g |
