Magnetic Encoder Disc for Micro Metal Gearmotors, 12 CPR (Bulk)

AUD $0.95

Order As Required

Back orders: Ship 1050 units in 7 days

Our Code: SKU-003309

Supplier: [Pololu MPN:2599]

These magnetic discs can be used with our micro metal gearmotors with extended motor shafts as part of a quadrature encoder system that offers 12 counts per revolution. Appropriate Hall Effect sensors, such as those in our magnetic encoder pair kits , are required to complete the system.


Description

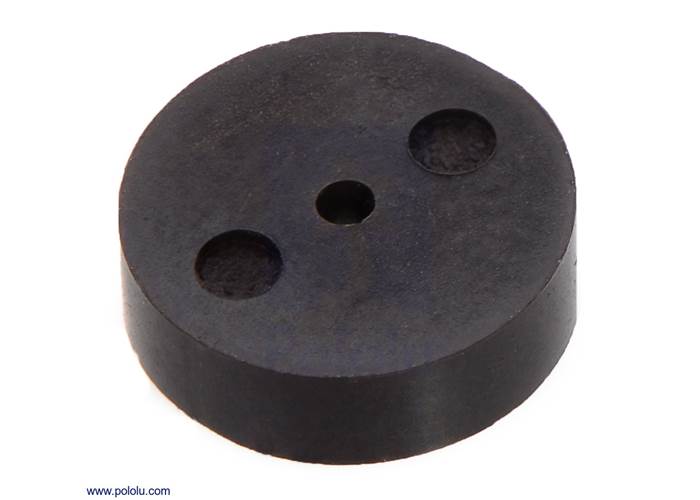

These are the same magnetic discs we include with our magnetic encoder pair kits. They are 2 mm thick with a 7.65 mm diameter, and the hole through the centre enables them to securely press-fit onto the 1mm-diameter motor shafts of our micro metal gearmotors with extended motor shafts. The disc consists of six evenly spaced magnetic poles (three north-south pairs), which allows for an encoder system that offers 12 counts per revolution.

This bulk-packaged product is primarily intended for those wanting to integrate these encoder discs into their own systems in higher volumes, but the minimum quantity is set to five for those who want to just get a few as replacements or samples. We will package these to order, and quantities shown in stock will be limited to 10 units. We generally expect orders of up to a few hundred units to ship within a day. For larger orders, please contact us for lead time estimates.


Specifications

Dimensions

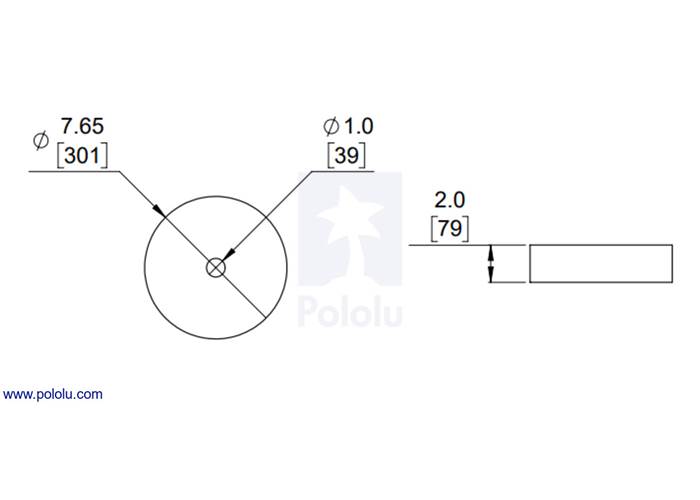

Size: 7.65 mm diameter × 2 mm thick
Weight: 0.3 g
