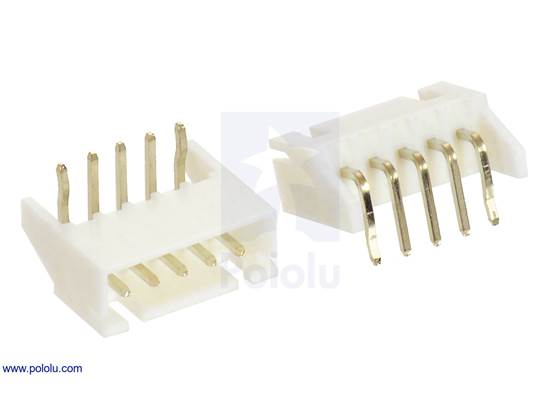

These shrouded, 5-pin JST XH-style male connectors have extended right-angle leads. They can be used with female JST XH-style connectors, and they also work with other many other 0.1″-pitch female connectors, such as our female premium jumper wires . They are sold in packs of two units.
Special Order
Shipping from $7.90
+130 more from our supplier in 7-10 days
Our Code: SKU-003378
Supplier Link: [Pololu MPN:2722]
These shrouded, male connectors work with female JST XH-style connectors, like those on the 2-pin female XH-style cable. The 2.5 mm pin spacing is close to the standard 0.1" grid spacing on many perfboards, so these units can readily be substituted for basic 0.1″ male headers, and they work with our female premium jumper wires and crimp connector housings.
This version is a five-pin connector with extended right-angle leads.

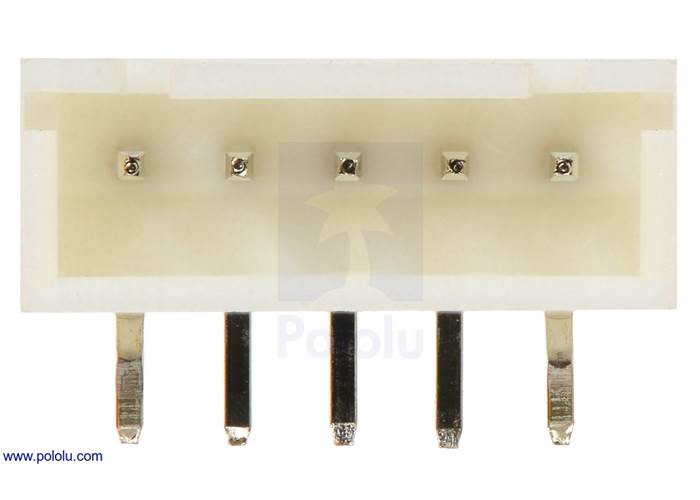

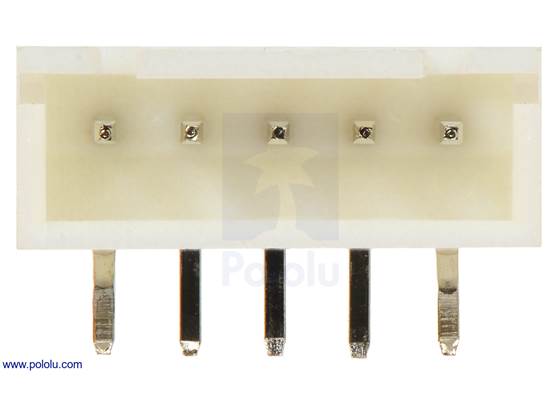

Front view of 2.5 mm JST XH-style shrouded male connector: 5-pin, right angle extended |

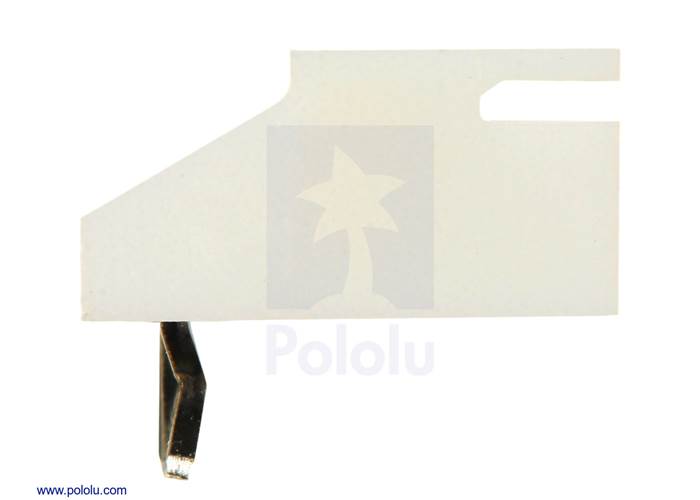

Side view of 2.5 mm JST XH-style shrouded male connector: 5-pin, right angle extended |

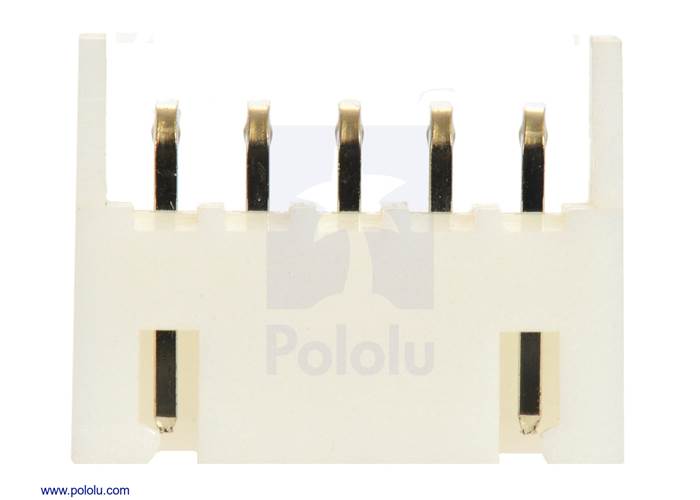

Top view of 2.5 mm JST XH-style shrouded male connector: 5-pin, right angle extended |
| Pins: | 1×5 |
|---|---|
| Spacing: | 2.5 mm |
| Gender: | male |
|---|---|
| Pin type: | right angle extended |
| Current rating: | 3 A |
| Voltage rating: | 250 V |
