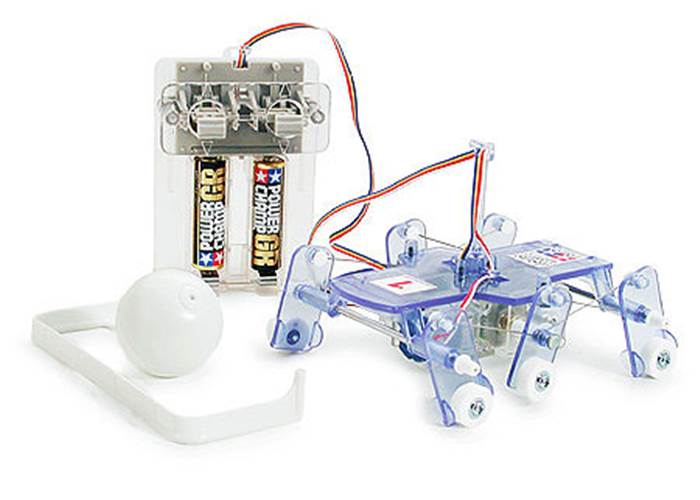

Tamiya 71107 Mechanical Insect - 2-channel Remote Control

This six-legged Mechanical Insect is controlled by a 2-channel remote control (included in the kit). You can make your Mechanical Insect move forward or backward and turn left or right.

AUD$ 67.95

Special Order

We can ship 3 more in 7-10 days

Our Code: SKU-002423

Supplier Link: [Pololu MPN:933]


How it works

All the parts needed to construct a Mechanical Insect and the 2-channel remote control are provided. This robot kit is equipped with two gearboxes, one that controls the right legs and one that controls the left legs. While working in the same direction, the gearboxes allow your robot to move forward or backward. While working in opposite directions, the gearboxes allow your robot to turn right or left. The remote control allows you to control the two gearboxes; each lever controls one gearbox. After some practice, you will be able to make your insect go anywhere you want. The Mechanical Insect’s body is made from a transparent blue ABS resin that allows you to see all of the motors, gears, cranks, and linkage rods in action.

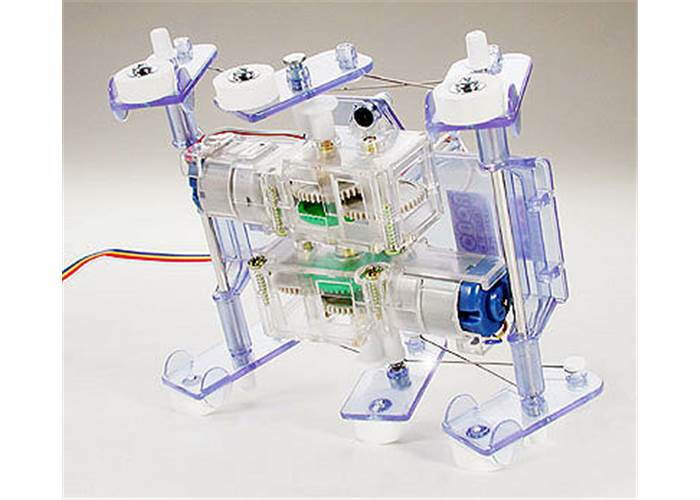

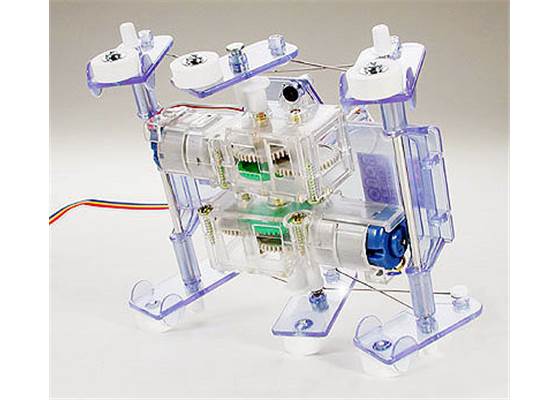

Tamiya 71107 Mechanical Insect two gearboxes

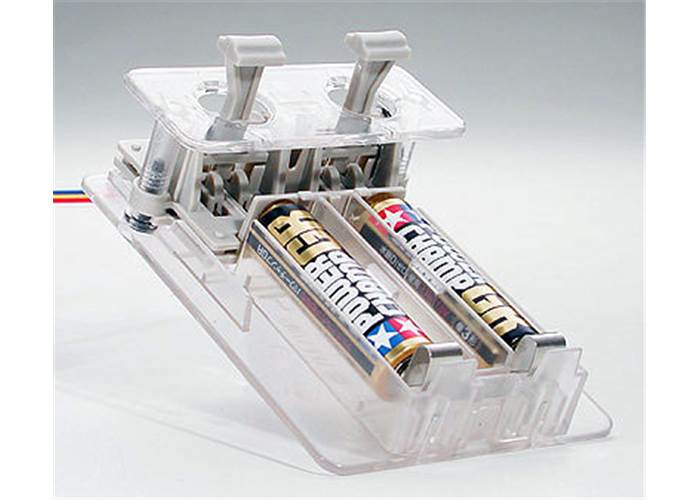

Tamiya 71107 Mechanical Insect remote control

Let’s play football with friends

The kit includes a ball and parts to build goals, allowing you use your Mechanical Insect to play football with friends. Stickers with numbers are also part of the set so you can organise a full competition. To play football, you just need to make a rounded field with fences and draw lines on it. Then take two Mechanical Insects as players and you are ready to start. By pushing the ball with the legs of your robot, you can dribble and score goals. Note that only one Mechanical Insect is included in this kit.

Tamiya 71107 Mechanical Insect soccer ball, goal, and identification stickers

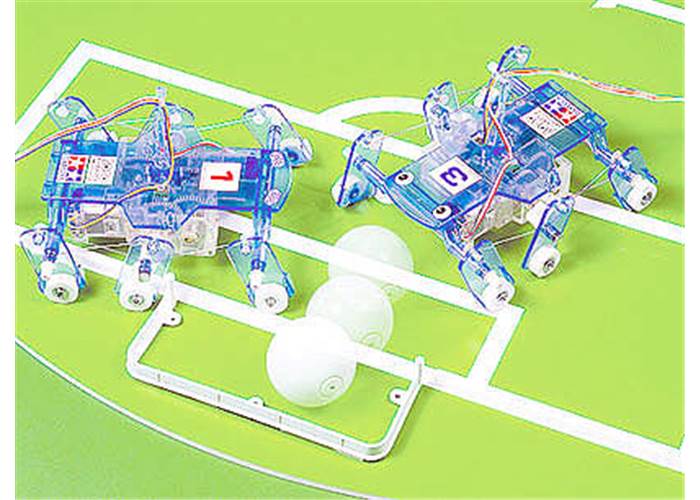

Tamiya 71107 Mechanical Insects in a soccer game

Basic specifications

  • Total length: 116 mm
  • Total weight: 135 g (without batteries)
  • Body material: ABS resin
  • Gearbox, motor, and remote-control are included, along with a “football” ball, goal, and identification stickers
  • A screwdriver for the assembly is provided.
  • Requires two AA (a.k.a. R6 or UM3) batteries (sold separately).
  • Continuous running time with Alkaline battery: 2 hrs.

Note: This is a kit. Assembly requires using a screwdriver and snapping parts together. No soldering is required.
