Resistor 12.1kOhms ±1% 1/10W SMD

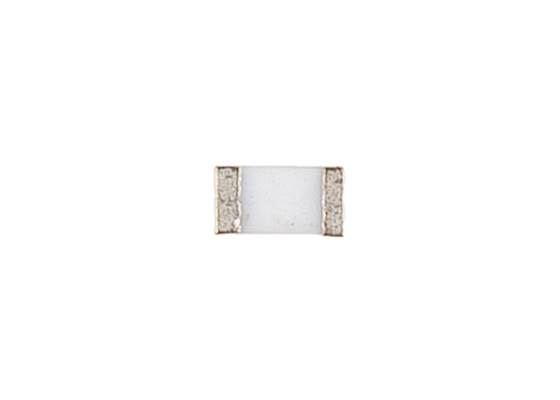

This is a 12.1 kOhms, 1/10W, ±1% tolerance SMD resistor.

AUD$ 0.20

Special Order

Shipping from $2.90

+1000 more from our supplier in 7-10 days

Our Code: SKU-011239

Supplier Link: [SparkFun MPN:30153]

Description

This is a 12.1 kOhms, 1/10W, ±1% tolerance SMD resistor.

Specifications

  • Resistance: 12.1 kOhms
  • Tolerance: ±1%
  • Power (Watts): 0.1W, 1/10W
  • Composition: Thick Film
  • Features: Moisture Resistant
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C ~ 155°C
  • Dimensions: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height - Seated (Max): 0.022" (0.55mm)
  • Number of Terminations: 2
  • Mfg #: RC0603FR-0712K1L
