Speaker - PCB Mount

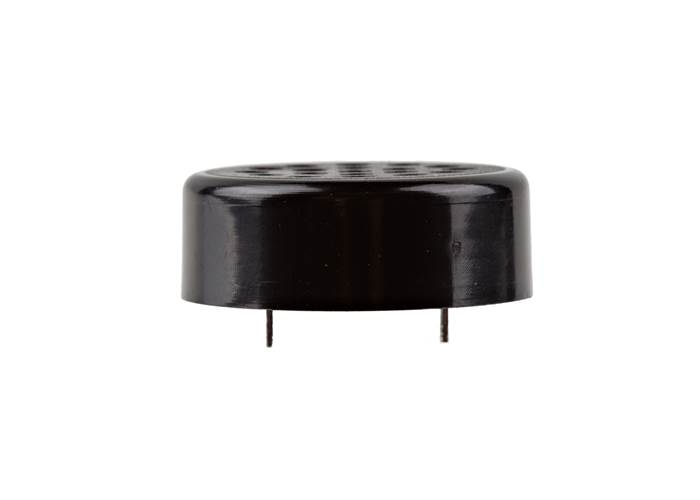

This through-hole speaker is great for projects where you need something that sounds better than a piezo buzzer but don't have room for a full-blown speaker.

AUD$ 3.65

Special Order

Shipping from $9.90

+66 more from our supplier in 7-10 days

Our Code: SKU-011029

Supplier Link: [SparkFun MPN:27247]

Description

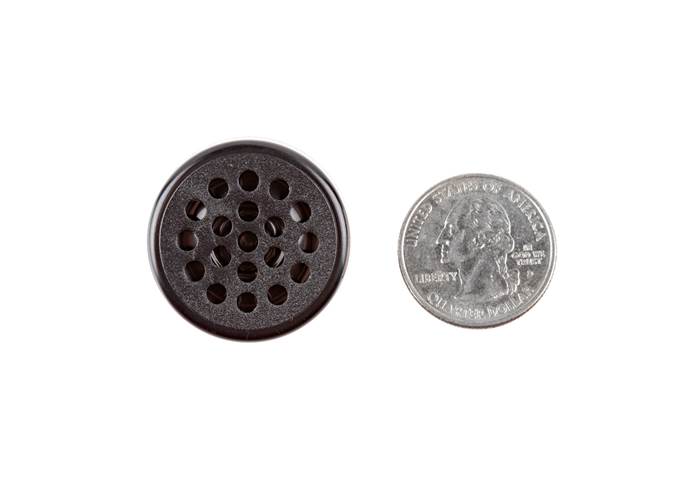

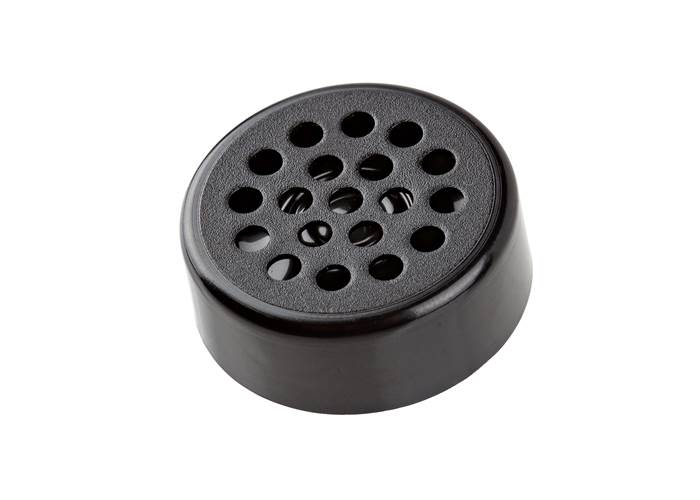

This through-hole speaker is great for projects where you need something that sounds better than a piezo buzzer but don't have room for a full-blown speaker. This 30mm diameter speaker is encased in plastic and will handle about 1W of power.

Specifications

  • Rated Input Power: 1.0W
  • Max Input Power: 1.5W
  • Rated Impedance: 8±15% Ω /2KHz/2.8V
  • Resonance Frequency: 1200±20% Hz/2.8V
  • Sound Pressure Level: 105±3 dB at (AVG 0.8, 1.0, 1.2, 1.5) KHz 0.1W/0.1m baffle board (IEC)
  • Frequency Range: FOHZ ~ 15KHz
  • Total Harmonic Distortion: 10%MAX at 1KHz, 0.15W
  • Operating Temperature Range: -20°C~+60°C

Resources

N/A
