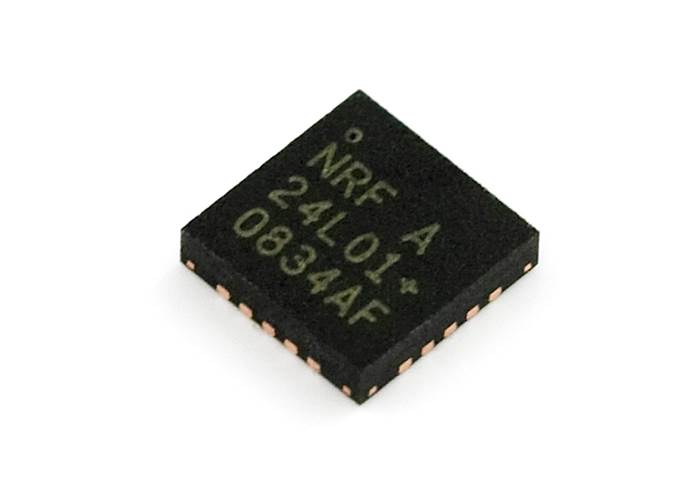

2.4GHz Transceiver IC - nRF24L01+

AUD $5.95

Order As Required

Back orders: Ship 16 units in 7 days

Our Code: SKU-000102

Supplier: [SparkFun MPN:690]

Nordic Semiconductor nRF24L01+. Transceiver chip operating in the 2.4GHz band. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice! The improved ‘+’ version of the nRF24L01 includes more features and better range! Features: Drop ...


Description

Nordic Semiconductor nRF24L01+. Transceiver chip operating in the 2.4GHz band. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice! The improved ‘+’ version of the nRF24L01 includes more features and better range!


Specifications

  • Drop in compatible with nRF24L01
  • 1.9V-3.6V supply
  • 2Mbit data rate
  • New long range 250kbit option
  • Auto acknowledge
  • Auto re-transmit
  • Multiceiver - 6 data pipes
  • 32 byte separate TX and RX FIFOs
  • 5V tolerant input pins
  • Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)
  • Minimum number of external components
  • Lots of application notes and support on Nordic Semiconductor Website
  • Works well with the 16MHz SMD Crystal

Documents:
