Raspberry Pi Touch Display 2

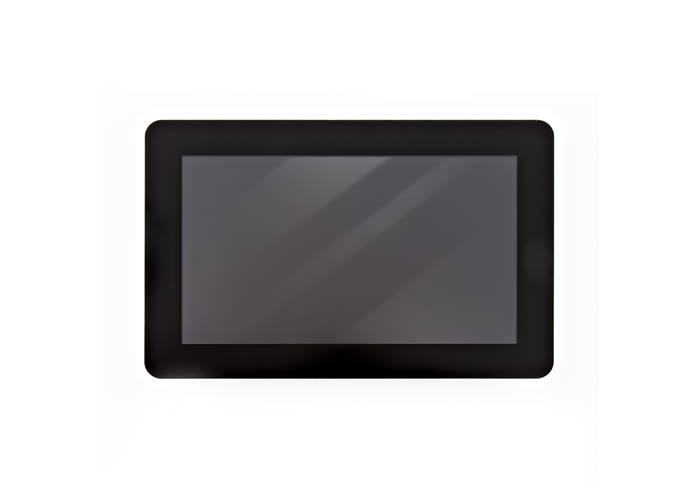

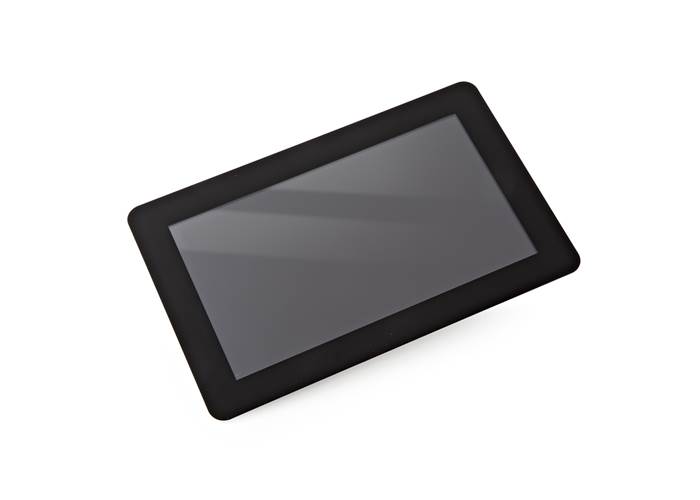

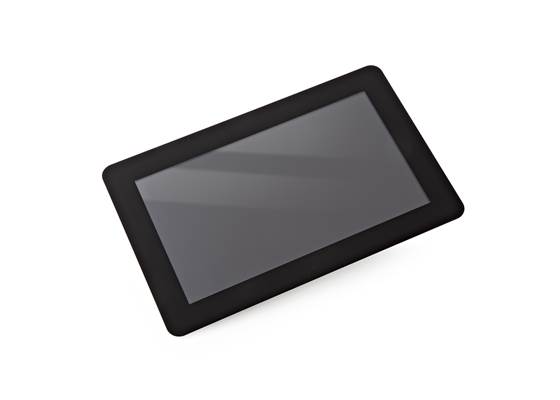

The Raspberry Pi Touch Display 2 is a 7" touchscreen display for Raspberry Pi. It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards.


Description

The Raspberry Pi Touch Display 2 is a 7" touchscreen display for Raspberry Pi. It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards.

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

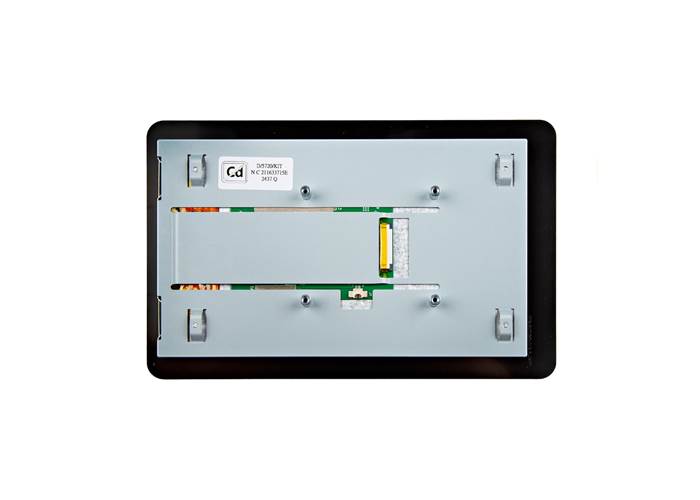

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: power from the GPIO port and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.


Specifications

  • Size: 120.24mm x 189.32mm
  • Active Area: 86.94mm x 154.56mm
  • Viewing Angle: 85 degrees
  • Display Format: 24-bit RGB, 720 x 1280 pixels
  • Display Type: LCD TFT
  • Touch Response Time:
    • Typical: 35ms
    • Max: 40ms
  • Surface Treatment: Anti-glare
  • Colour Configuration: RGB-stripe
  • Backlight Brightness: 500 cd/m2
  • Operating Temperature: −20°C to +70°C
