5V, 100mA Step-Down Voltage Regulator D45V1E1F5

Output voltage Typical max current output Input voltage range 1 Size EN input 5 V 100 mA 5 V – 65 V 0.3″ × 0.5″ - 1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information.

AUD$ 6.95

Special Order

Shipping from $2.90

+89 more from our supplier in 7-10 days

Our Code: SKU-010674

Supplier Link: [Pololu MPN:5363]


Description

Overview

The D45V1Ex line of synchronous buck (step-down) voltage regulators generate lower voltages from input voltages as high as 65 V while delivering up to 100 mA continuous. They are switching regulators with very low quiescent currents (< 30 μA typical), which allows for extra high efficiencies at low currents compared to linear regulators and typical switching regulators. These kind of regulators are also called switched-mode power supplies (SMPS) or DC-to-DC converters.

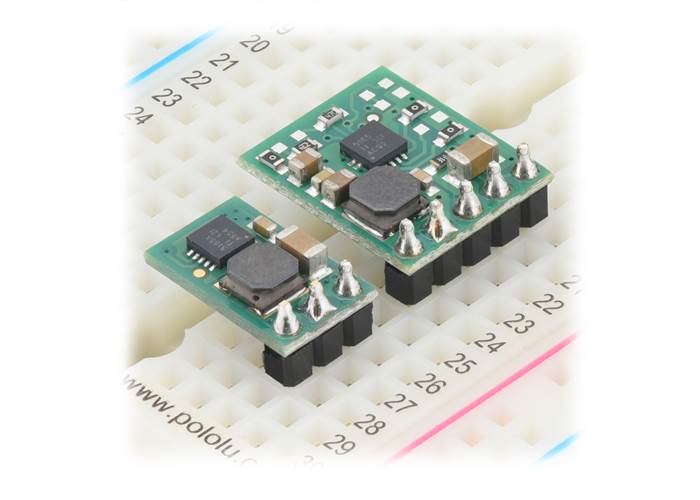

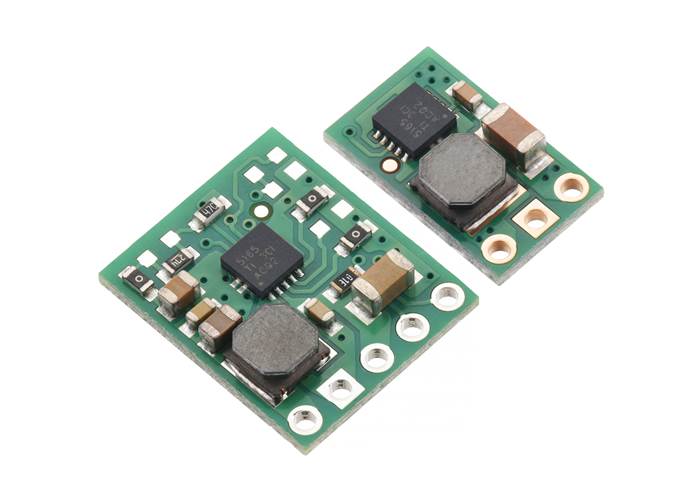

D45V1ExFx line of step-down voltage regulators: D45V1E2Fx (left) and D45V1E1Fx (right).

This line consists of the D45V1E1Fx family, which is just 0.3″ × 0.5″ and intended for applications with tighter space constraints, and the larger (0.5″ × 0.6″) D45V1E2Fx family, which features a precision-threshold enable input for turning the regulator off and a power-good output that can be used for sequencing and voltage monitoring.

Regulator Output
voltage
Input
voltage1
Max
output
current
Size EN input +
PG output
Price

D45V1E1Fx
#5362: D45V1E1F3 3.3 V 3.3 V – 65 V 100 mA 0.3″ × 0.5″ $4.69
#5363: D45V1E1F5 5 V 5 V – 65 V
#5367: D45V1E1F12 12 V 12 V – 65 V

D45V1E2Fx
#5372: D45V1E2F3 3.3 V 3.3 V – 65 V 100 mA 0.5″ × 0.6″ $4.69
#5373: D45V1E2F5 5 V 5 V – 65 V
#5377: D45V1E2F12 12 V 12 V – 65 V
1 Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information.

The regulators feature short circuit protection and thermal shutdown protection, which helps prevent damage from overheating. The boards do not have reverse-voltage protection.

We manufacture these boards in-house at our Las Vegas facility, which gives us the flexibility to make these regulators with customised components to better meet the needs of your project, such as by customising the output voltage. If you are interested in customisation, please contact us for a quote.

Details for item #5363

This item is the D45V1E1F5, which measures 0.3″×0.5″ and outputs a fixed 5 V.

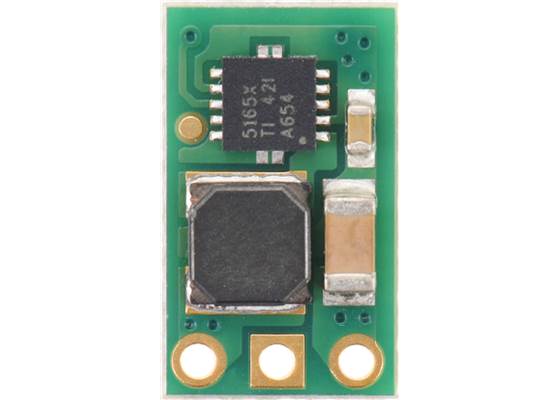

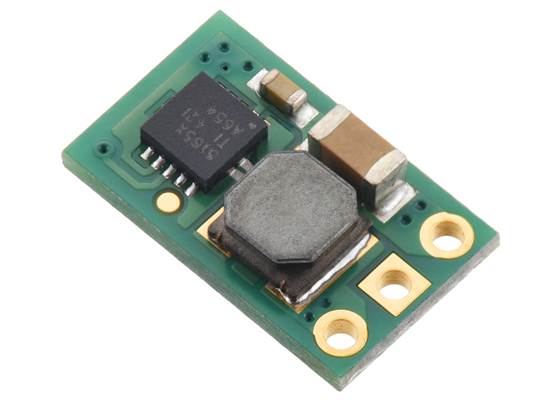

5V, 100mA Step-Down Voltage Regulator D45V1E1F5.

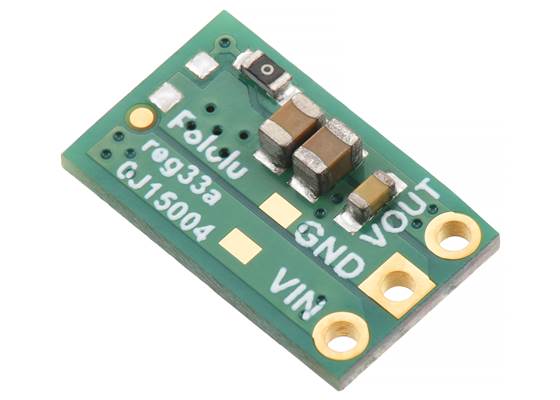

5V, 100mA Step-Down Voltage Regulator D45V1E1F5, bottom view.

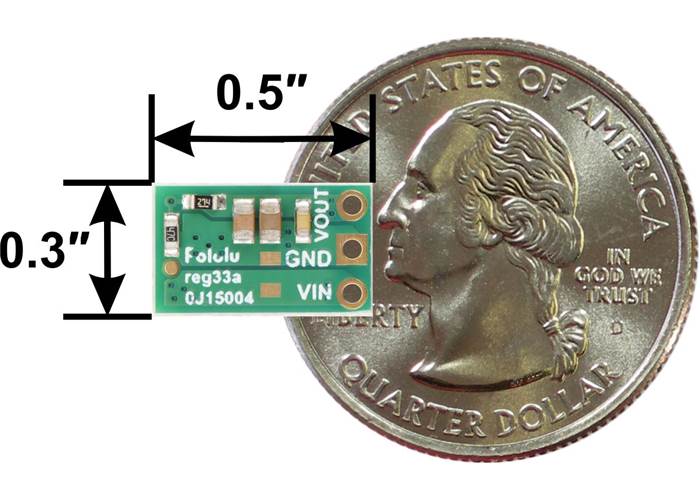

D45V1E1Fx step-down voltage regulator basic dimensions with US quarter for size reference.

Features

  • Input voltage: 5 V to 65 V (minimum input subject to dropout voltage considerations; see the dropout voltage section for details)
  • Output voltage: 5 V with 4% accuracy
  • Maximum output current: 100 mA
  • Low quiescent current: < 20 μA (see the quiescent current graph below)
  • High efficiencies at light loads (see the efficiency graph below)
  • Short-circuit and over-temperature protection
  • Small size: 0.3″ × 0.5″ × 0.17″ (7.6 mm × 12.7 mm × 4 mm)
  • Weight: 0.4 g

Connections

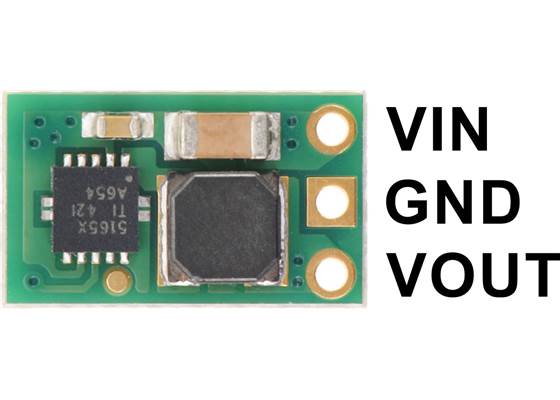

D45V1E1Fx step-down voltage regulator pinout.

This regulator has three connections: input voltage (VIN), ground (GND), and output voltage (VOUT).

The input voltage, VIN, powers the regulator. Voltages between 5 V and 65 V can be applied to VIN, but generally the effective lower limit of VIN is VOUT plus the regulator’s dropout voltage, which varies approximately linearly with the load (see below for graphs of the dropout voltage as a function of the load). Additionally, please be wary of destructive LC spikes (see below for more information).

VOUT is the regulated output voltage.

The three connections are labelled on the back side of the PCB and are arranged with a 0.1″ spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1″ grid. You can solder wires or 0.1″ header pins directly to the board. Note: header pins are not included with this product, but straight male header strips and right-angle male header strip are available separately.

D45V1ExFx step-down voltage regulators, soldered with straight header pins(not included), on a breadboard.

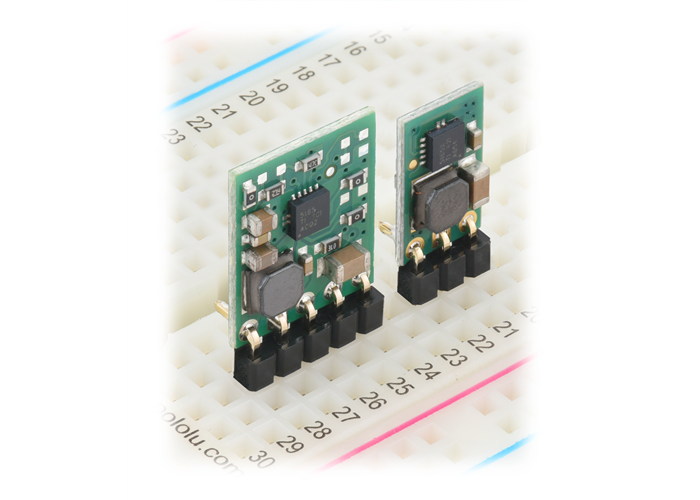

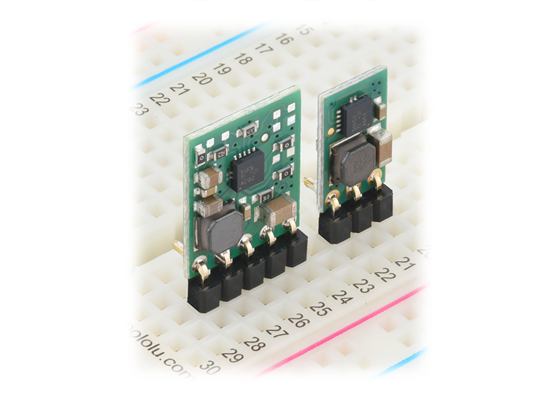

D45V1ExFx step-down voltage regulators, soldered with right-angle header pins (not included), on a breadboard.

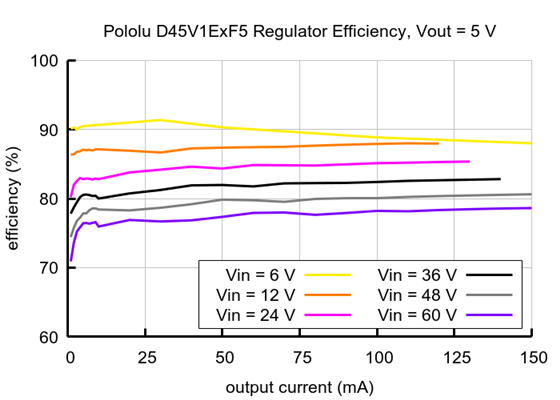

Typical efficiency

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns.

Maximum continuous output current

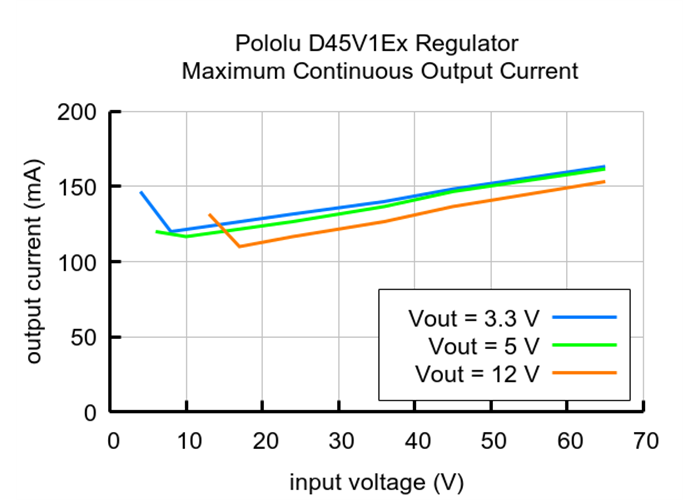

The maximum achievable output current of these regulators varies with the input voltage but also depends on other factors, including the ambient temperature, air flow, and heat sinking. The graph below shows maximum output currents that these regulators can deliver continuously at room temperature in still air and without additional heat sinking.

Quiescent current

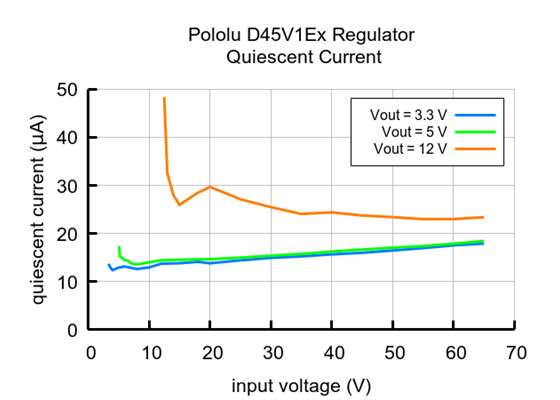

The quiescent current is the current the regulator uses just to power itself, and the graph below shows this for the different regulator versions as a function of the input voltage. On the D45V1E2 versions, the EN input can be driven low to put it in a low-power sleep state where the current draw is approximately 5 μA plus 1 μA per volt on VIN.

Typical dropout voltage

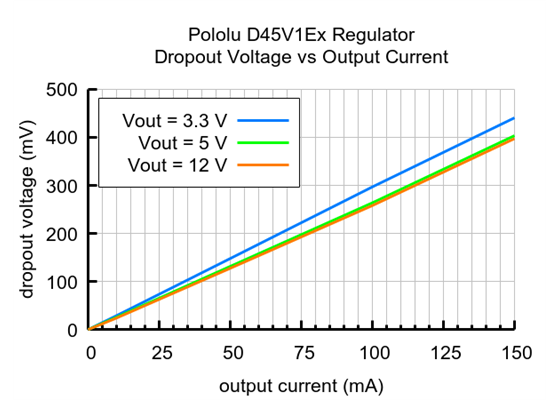

The dropout voltage of a step-down regulator is the minimum amount by which the input voltage must exceed the regulator’s target output voltage in order to ensure the target output can be achieved. For example, if a 5 V regulator has a 1 V dropout voltage, the input must be at least 6 V to ensure the output is the full 5 V. Generally speaking, the dropout voltage increases as the output current increases. The graph below shows the dropout voltages for the different members of this regulator family:

LC voltage spikes

When connecting voltage to electronic circuits, the initial rush of current can cause voltage spikes that are much higher than the input voltage. If these spikes exceed the regulator’s maximum voltage (65 V), the regulator can be destroyed. In our tests with typical power leads (36″/1m test clips), we observed spikes approaching 65 V at input voltages around 30 V.

If you are connecting more than 30 V or your power leads or supply has high inductance, we recommend soldering a suitably rated 33 μF or larger electrolytic capacitor close to the regulator between VIN and GND.

More information about LC spikes can be found in our application note, Understanding Destructive LC Voltage Spikes.


Specifications

Dimensions

Size: 0.3″ × 0.5″ × 0.17″
Weight: 0.4 g

General specifications

Minimum operating voltage: 5 V1
Maximum operating voltage: 65 V
Maximum output current: 100 mA
Output voltage: 5 V
Reverse voltage protection?: N
Maximum quiescent current: 20 μA
Output type: fixed 5V

Identifying markings

PCB dev codes: reg33a
Other PCB markings: 0J15004

Notes:

1
Subject to dropout voltage considerations.
