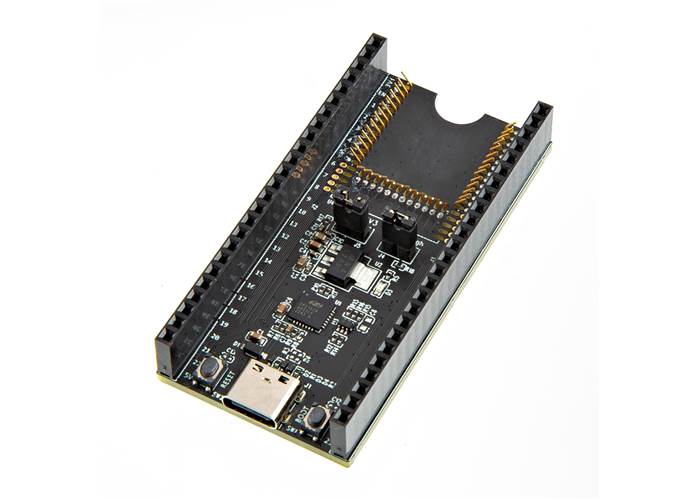

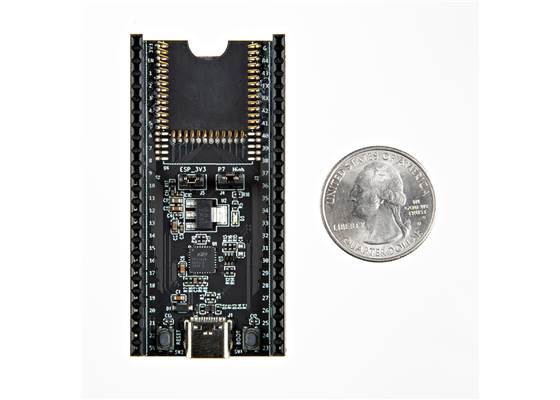

Espressif Module Prog 1 - ESP32 WROOM Module Programmer

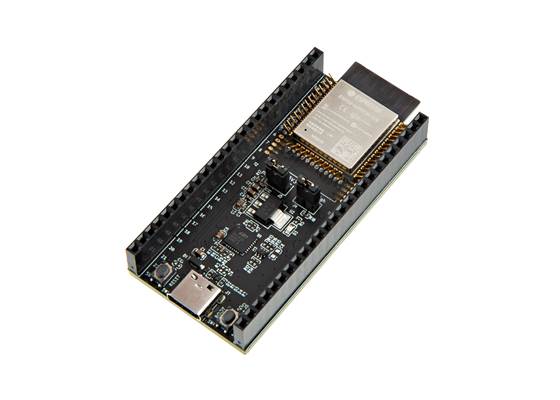

The Espressif Module Prog-1 is your complete solution for programming ESP32 modules. This programmer eliminates soldering by using convenient spring pins for a secure, swappable connection. Simply connect your ESP32 module (including ESP32-WROOM-32, S2, S3, and C6 variants) via the spring pins, plug in the USB-C cable, and you're ready to flash your code!

• USB Type C Connector

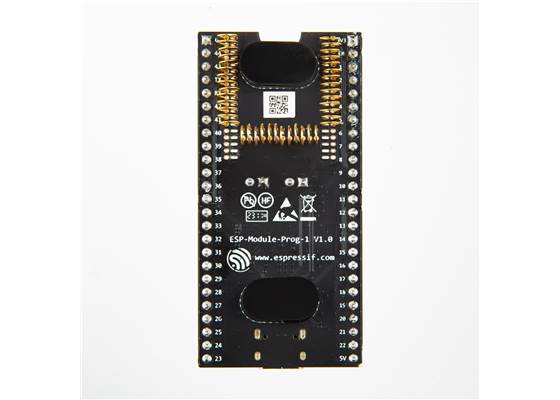

• Spring Pins allows for the module to be quickly swapped without soldering or any permanent connection
• Works with the following Modules
  • ESP-Module-Prog-1
  • ESP32-WROOM-32
  • ESP32-WROOM-32D
  • ESP32-WROOM-32U
  • ESP32-SOLO-1
  • ESP32-WROOM-32E
  • ESP32-WROOM-32UE
  • ESP32-S2-SOLO
  • ESP32-S2-SOLO-U
  • ESP32-S2-SOLO-2
  • ESP32-S2-SOLO-2U
  • ESP32-S3-WROOM-1
  • ESP32-S3-WROOM-1U
  • ESP32-S3-WROOM-2
  • ESP32-C6-WROOM-1
  • ESP32-C6-WROOM-1U

• Schematic
