This Qwiic-enabled 0.66-inch blue-on-black OLED screen can display graphics and sensor diagnostics without a serial monitor, complex soldering, or difficult hardware integration.
Special Order
Shipping from $4.90
+371 more from our supplier in 7-10 days
Our Code: SKU-010195
Supplier Link: [SparkFun MPN:22495]

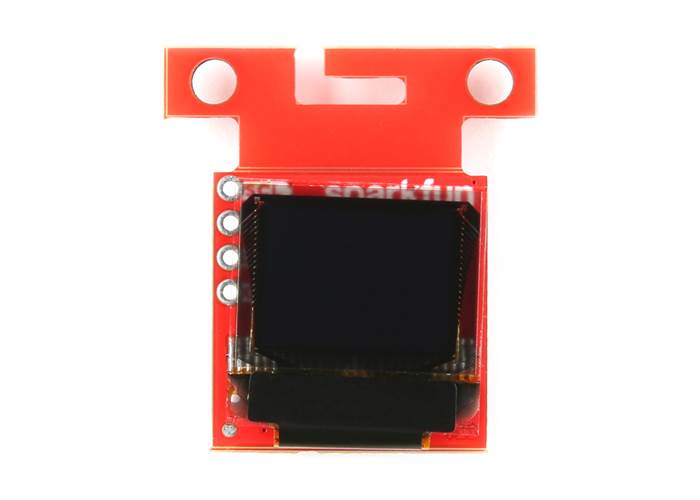

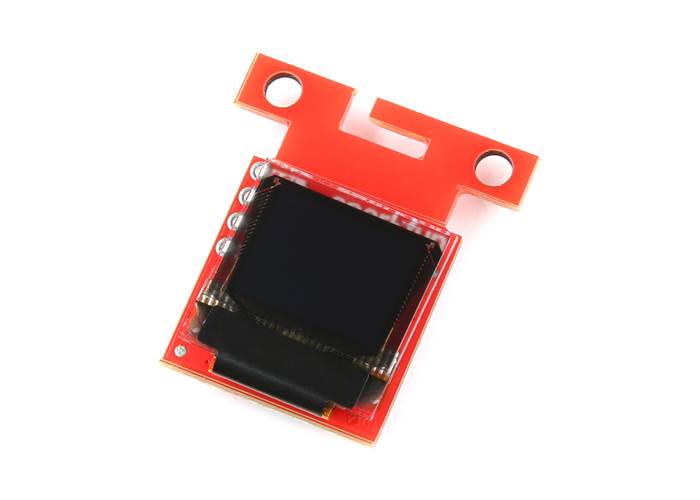

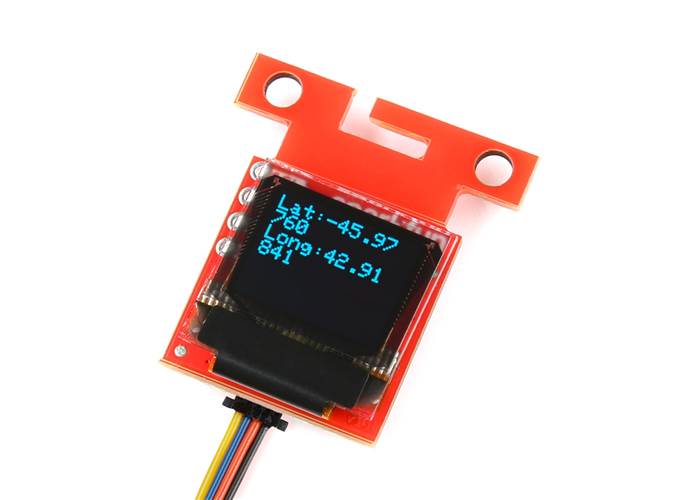

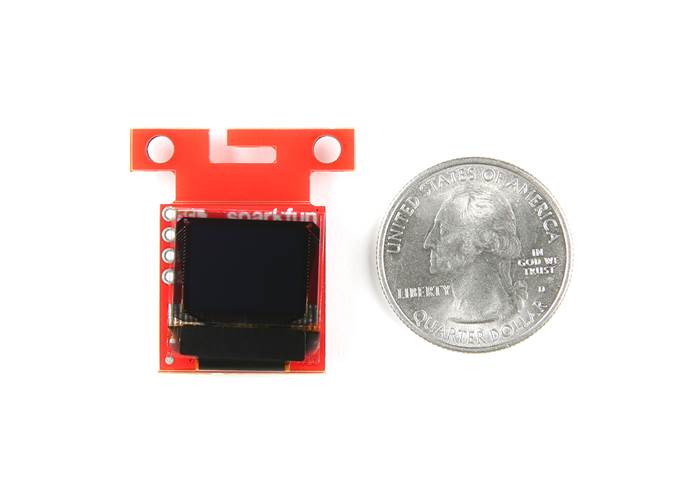

Add crisp, clear visual feedback to your hardware without relying on a bulky screen or a computer's serial monitor. The SparkFun Qwiic Micro OLED Breakout packs a highly legible 64x48-pixel monochrome display into a tiny 0.66-inch-diagonal frame. Displaying vibrant blue-on-black graphics, this screen is an excellent choice for reading out sensor data, debugging code, or creating a miniature user interface in space-constrained projects.

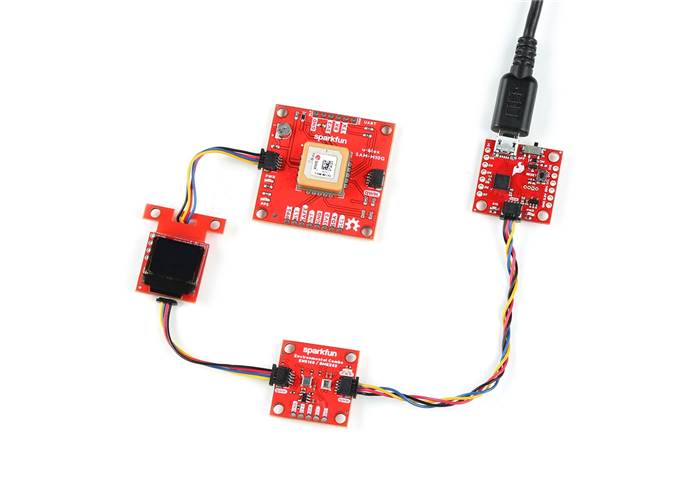

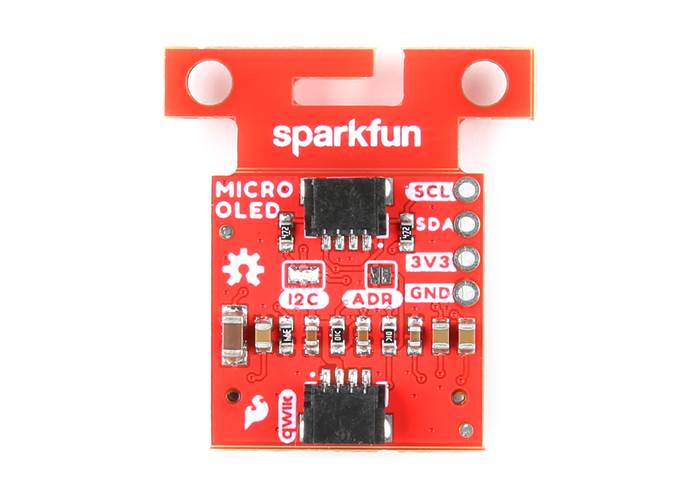

Wiring up a display should never be the hardest part of your build. By utilising the solderless Qwiic Connect System, this breakout plugs directly into your I2C bus in seconds. Don't worry, we've still broken out standard 0.1-inch spaced pins for users integrating the display into a custom enclosure or breadboard!
To make physical integration just as easy as the wiring, the board features several clever hardware additions:
Just keep in mind that since this screen communicates over I2C, running more than two of these displays on a single bus will require a dedicated multiplexer, such as the Qwiic Mux Breakout. Whether you are building a wearable device or a compact weather station, this micro display delivers incredible clarity in a fraction of the space.
Revision Change: For V11, we have optimised the two mounting hole locations to match those on a standard 1.0" x 1.0" Qwiic-sized board. The overall functionality of the Qwiic Micro OLED breakout board is the same as the previous version!
