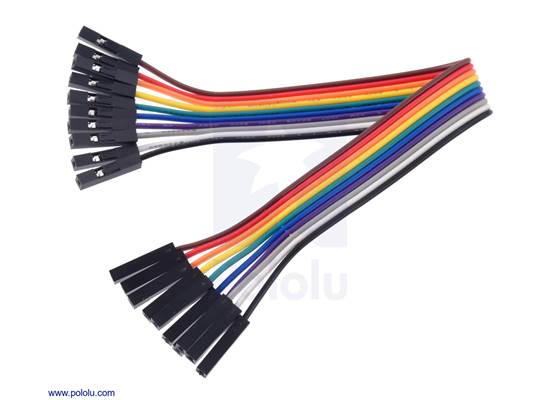

Ribbon Cable Premium Jumper Wires 10-Color F-F 6" (15 cm)

Details for item #4563

This product is 6″ (15 cm) long with female connectors on both ends.

Premium jumper wire family overview

These premium 26 AWG stranded copper jumper wires are great for making quick and easy prototyping connections. A variety of lengths and colors are available:

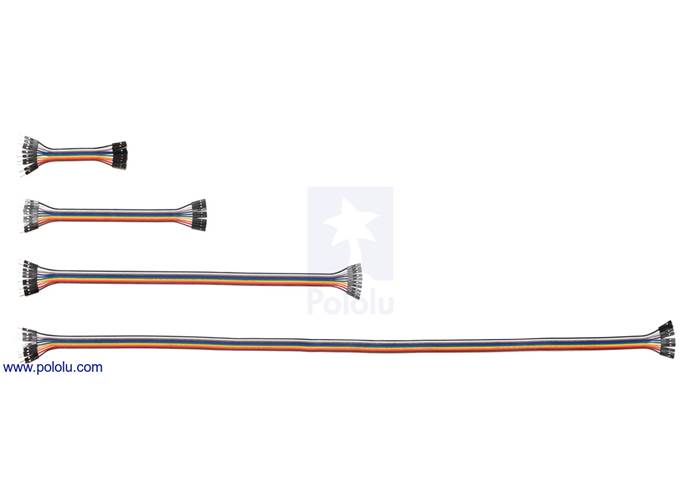

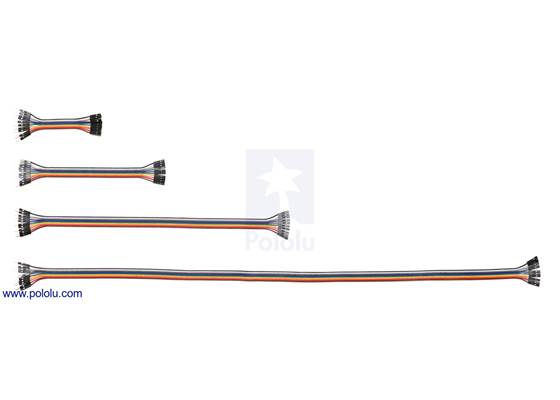

length single-colour packs multi-colour option 1″ (2.5 cm) 6 colors available 60-pack (10 each of 6 colors) 2″ (5 cm) 6 colors available 60-pack (10 each of 6 colors) 3″ (7.5 cm) 6 colors available 10-wire, 10-colour ribbon cable 6″ (15 cm) 10 colors available 10-wire, 10-colour ribbon cable 12″ (30 cm) 10 colors available 10-wire, 10-colour ribbon cable 24″ (60 cm) not available* 10-wire, 10-colour ribbon cable

* You can make your own 24″ single-colour packs by getting single-colour packs of our 24″ wires with pre-crimped terminals and adding 1×1 crimp connector housings to them.

These wires are available with male connectors on both ends, female connectors on both ends, or one male and one female connector. These connectors are designed for use with 0.1″ (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Close-up pictures of the male and female connectors are shown below:

You can use the following selection boxes to get to the specific wires you are looking for:

Alternatives available with variations in these parameter(s): gender length colour Select variant…

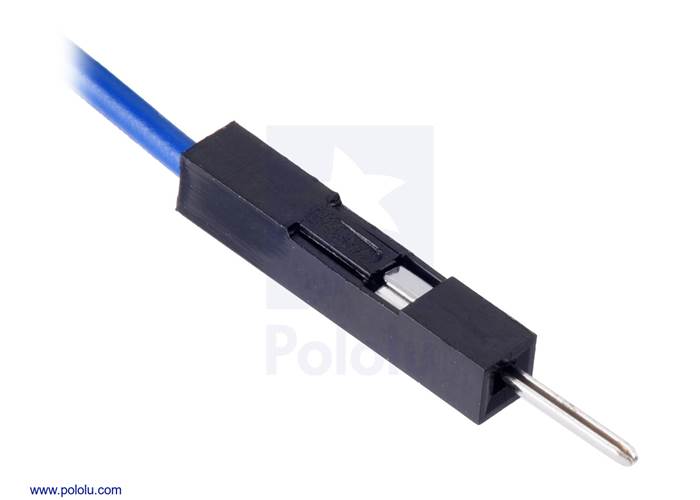

Ribbon Cable with Pre-Crimped Terminals male end.

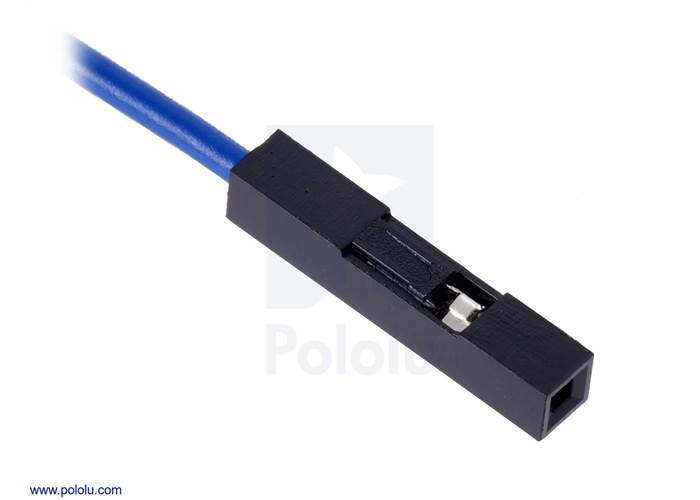

Ribbon Cable with Pre-Crimped Terminals female end.

We also have versions of these wires without the 1×1 connector housings, as shown in the two pictures above, that can be used with our selection of 0.1″ crimp connector housings to make custom cables or longer premium jumper wires. For more information, see our wires with pre-crimped terminals, or use the following selection boxes:

Alternatives available with variations in these parameter(s): gender length colour Select variant…

Example of a custom cable made with wires with pre-crimped terminals and crimp connector housings.

The following video talks about some of our various wire and cable options:

Dimensions

General specifications
