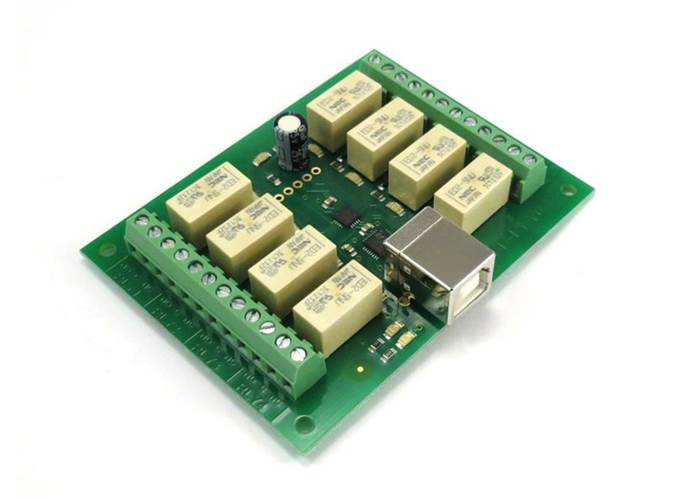

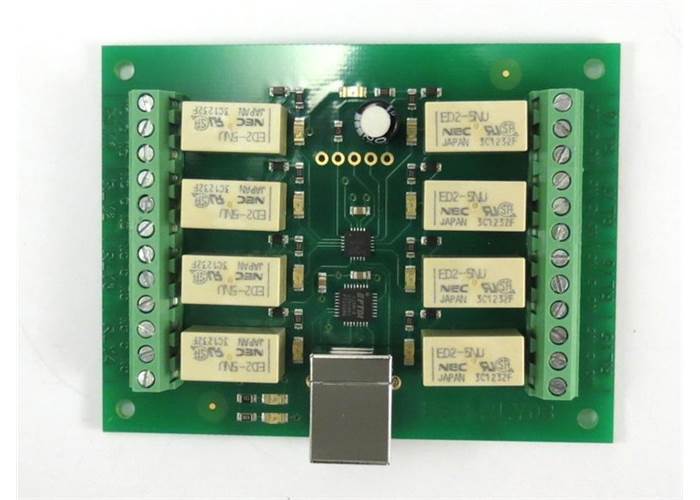

8 Channel Relay Module with USB (USB-RLY08-C)

Powered and Controlled from the USB bus. The relays used on this board are premium ultra low power 50mW coil types, this means the boards current consumption is less than 100mA with all relays on.

AUD$ 91.95

More local stock soon

Shipping from $7.90

+lots more from our supplier in 7 days

 Notify Me

Our Code: MCU-060258

Overview

Powered and Controlled from the USB bus.
The relays used on this board are premium ultra low power 50mW coil types, this means the boards current consumption is less than 100mA with all relays on.

Specifications

Relays - 8
Power - Powered from standard USB bus
Control interface - USB
Relay current - Up to 1Amp @30vdc or 60vac. 500mA@110vac. 250mA@250vac
Connections - Screw Terminals for N/O N/C and Common contacts.

The USB-RLY08-C is an update of the obsolete USB-RLY08-B. The only change is an improved USB footprint on the PCB to allow correct seating with multiple manufacturers, otherwise is a drop in replacement.

Resources

Full USB-RLY08-C documentation

Examples:
Linux
Linux GCC
 - A command line tool that will set the relay states according to input from the user
Linux with Mono and Xbuild (C#) - Simple example of switching the relays

Mac
Xcode - Simple example of switching the relays

Microsoft Windows
Visual C# Express - Simple example of switching the relays
Visual Basic Express - Simple example of switching the relays
