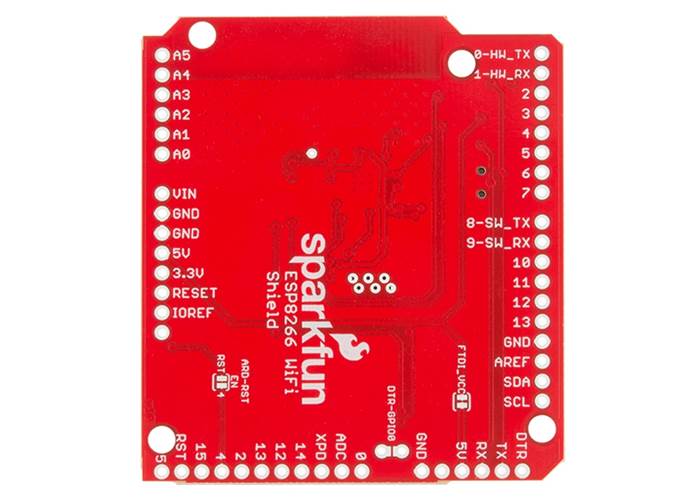

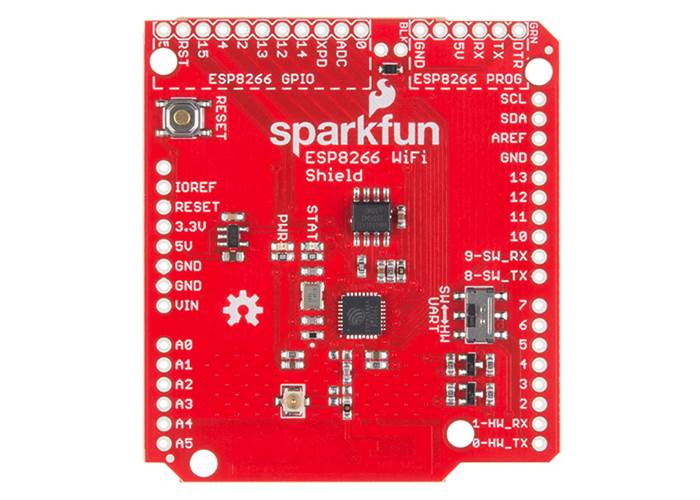

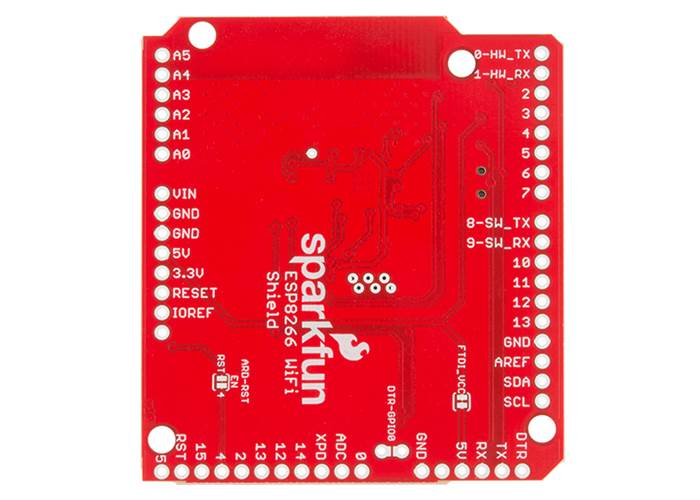

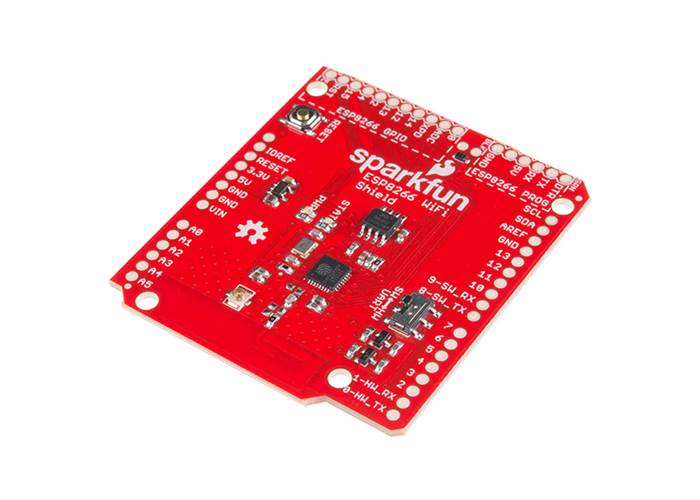

SparkFun WiFi Shield - ESP8266 for Arduino Uno

AUD $27.95

In Stock: Ships Today

Back orders: Ship 31 units in 7 days

Our Code: MCU-60232

Supplier: [SparkFun MPN:13287]

SparkFun ESP8266 WiFi Shield is an Arduino compatible shield using the very popular ESP8266 WiFi chip making it easy to add WiFi to an Arduino. With AT-command firmware preloaded the board is easily controlled over a UART serial from the Arduino and also includes 12 general I/O pins.


Description

The ESP8266 is a WiFi chip that is very popular for creating IoT (Internet of Things) projects and is partly responsible for people saying "Internet of Things" too much.

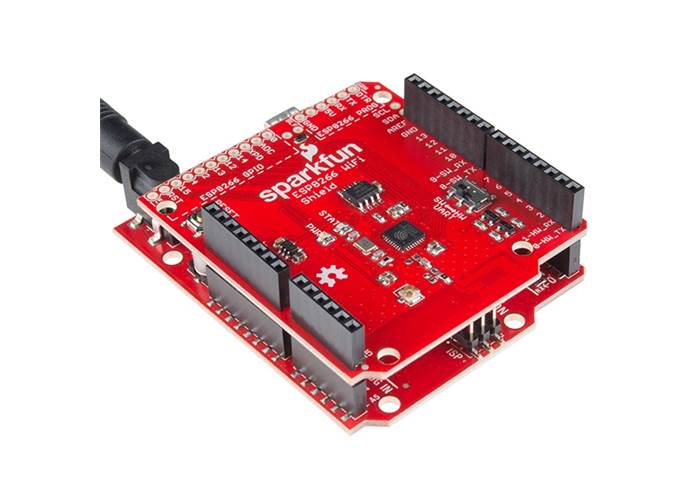

The SparkFun ESP8266 WiFi Shield is an Arduino shield that makes it easy and quick to add WiFi capabilities with the familiarity of an Arduino Uno board.

Get your toaster or other IOT device sending data to the cloud with phant.io or Azure.

The ESP8266 WiFi Soc is also used in the SparkFun Thing if you don't need to stay with an Arduino Uno form factor or fly close to the ground with the ESP8266 WiFi module which can be included into any project.

AT-Command firmware has been flashed to the board so it can be controlled via serial commands from an Arduino. The rest of the ESP8266 pins are also broken out in case you need them. 12 digital I/O pins (including one ADC) are available and the board can be re-flashed with custom firmware as needed.

The shield as ready made except for the headers that must be soldered in. Headers sold separately. We recommend Arduino R3 Stackable Header Kit.

Specifications

  • Arduino R3 Layout
  • 802.11 b/g/n
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • Integrated low power 32-bit CPU could be used as application processor
  • +19.5dBm output power in 802.11b mode
