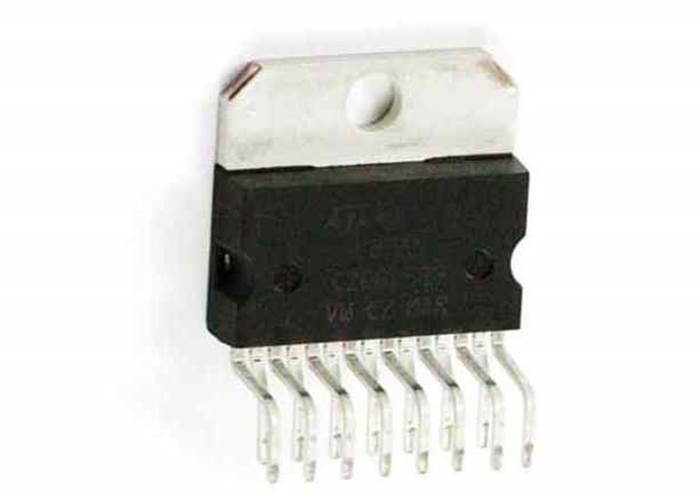

    L298N Dual Full Bridge Motor Driver

Dual H-Bridge Motor Driver - L298N

Code: MCU-60023
AUD $3.50 - Inc Tax
Availability: In Stock

The L298 is a high voltage, high current, dual full-bridge motor driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.

Comes in a staggered, 15-lead Multiwatt package. A breakout board is also available to make the L298 easier to use.

Features:

  • Operating supply voltage of up to 46V
  • 4.5-7VDC logic supply voltage

  • Total DC current of up to 4A
  • Low saturation voltage
  • Over-temperature protection
  • Logical '0' input up to 1.5V (high-noise immunity)

Documents:

 Breakout Board Available:

We also stock a breakout board for the L298N that makes it easy to mount the odd staggered pin layout as shown below.

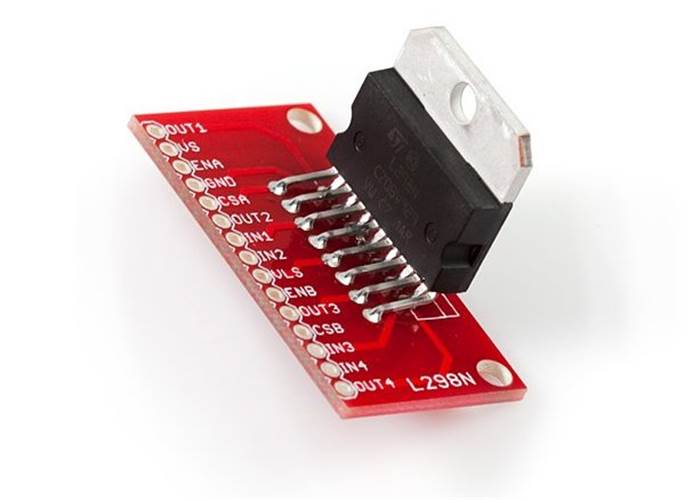

L298N motor driver mounted in the breakout board

L298N motor driver IC mounted on the breakout board
