20 Channel 16 Amp Relay Module with Ethernet (ETH8020)

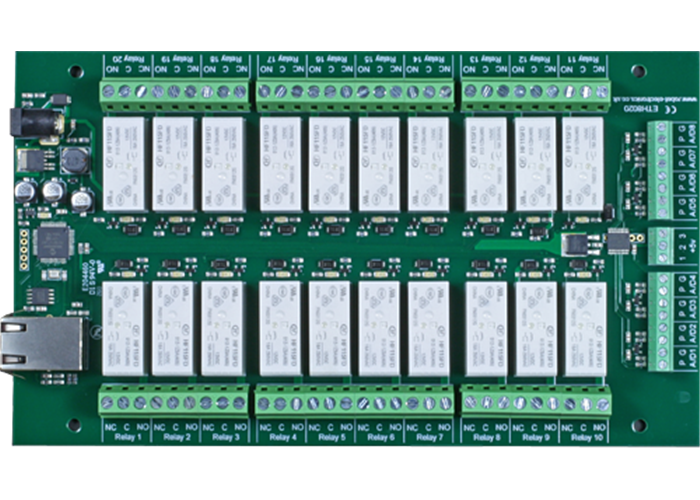

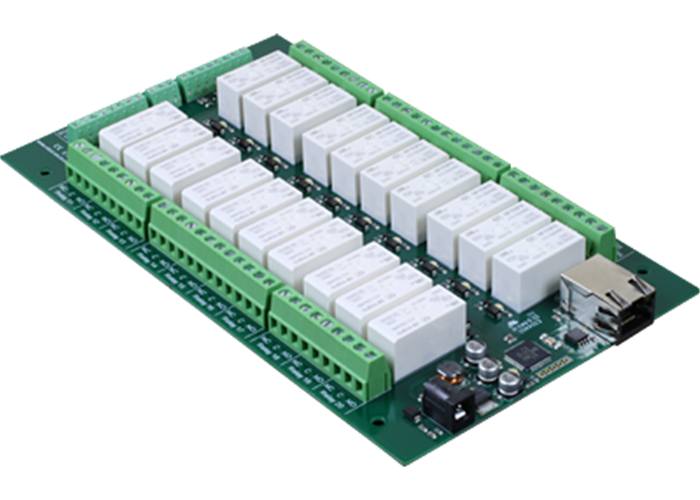

The "ETH8020" allows you to control twenty (20), 16 Amp relays over an Ethernet connection using a built in web page or via simple TCP/IP based commands. Screw terminals on normally open, normally closed and common relay pins allow for easy connection.

Not currently available

Our Code: MCU-60153

Overview

The ETH008 provides eight volt free contact relay outputs with a current rating of up to 16Amp each. The module is power from a 12vdc supply which can be regulated or unregulated. The DC input jack is 2.1mm with positive core polarity, DC supplies are required to supply at least 500mA at 12vdc. The relays are SPCO (Single Pole Change Over) types. The normally open, normally closed and common pins are all available on the screw terminals.

Specifications

  • Controlled over Ethernet using simple TCP/IP commands.
  • Number of Relay's - 20
  • Analogue Inputs (0-5v) - 8
  • Power - 12V DC adaptor, supplied separately.
  • Configuration & Test interface - HTTP (webpage).
  • Control interface - TCP/IP over Ethernet.
  • Relay current - Up to 16Amp @24vdc or 250vac
  • Connections - Screw Terminals for N/O N/C and Common contacts.

Full ETH8020 Documentation

Free Android and iPhone Apps are available to remotely control this module.
