Programmable 24 Channel 16 Amp Relay Module with Ethernet (ds2824)

The "ds2824" allows you to control 24, 16 Amp relays over an Ethernet connection using a built in web page or via simple TCP/IP based commands. 8 Analogue/Digital inputs allow you to capture sensor readings. The module can be programmed to respond to the inputs, send and receive commands over TCP/IP and has a customisable web page interface.

AUD$ 236.95

In stock in Australia

We can ship more in 7 days

Our Code: MCU-060244

Overview

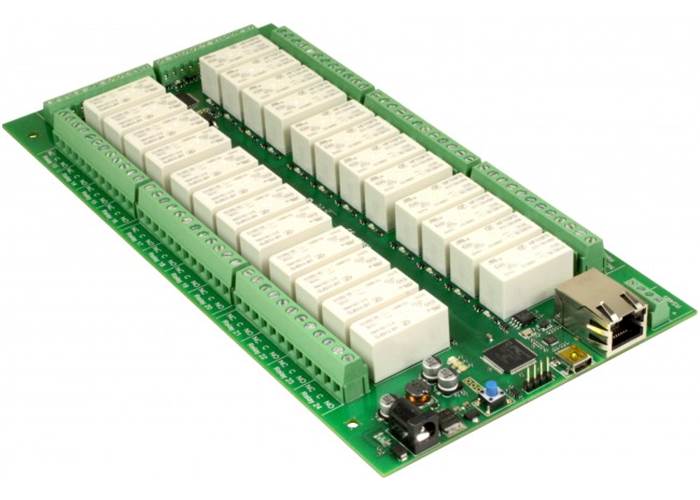

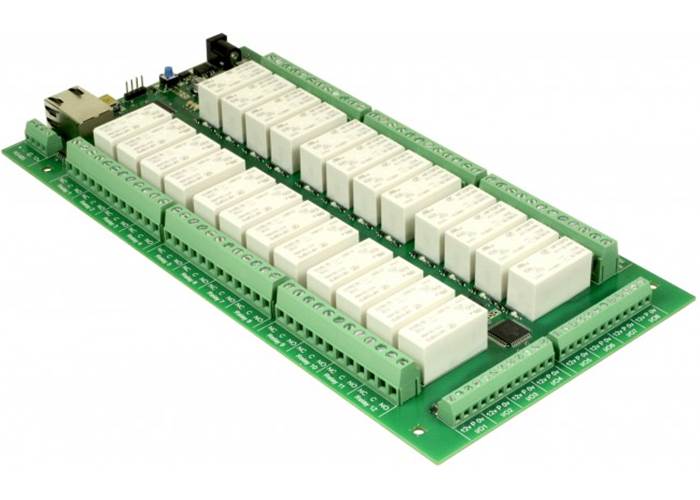

The ds2824 provides 24 relay outputs with a current rating of up to 16Amp each. The module can be programmed using dScript (see below) enabling you to make the board respond to inputs and send/receive commands from other devices on the network.

The module is power from a 12vdc supply which can be regulated or unregulated (not included).

Features

  • Create a custom webpage - Add your own logo, buttons and functionality

  • Control using a mobile phone

  • Add a tcp server - Respond to incoming tcp requests with your own functions

  • Include a tcp client - Send packets of tcp data to other devices using your own protocol

  • Serial ports - 2 (1 x TTL serial and 1 x RS485)

  • Relays - 24 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and Common contacts

  • Digital I/O / Analogue inputs - 8 flexible channels with your choice of 12 bit analogue input or digital i/o.

  • Communication - USB for development, RJ45 ethernet for normal access

  • Power - 12V DC jack 2.1mm (adaptor sold separately)

  • Current requirements for the dS boards is 150mA + 40mA for each relay that is on.

Case

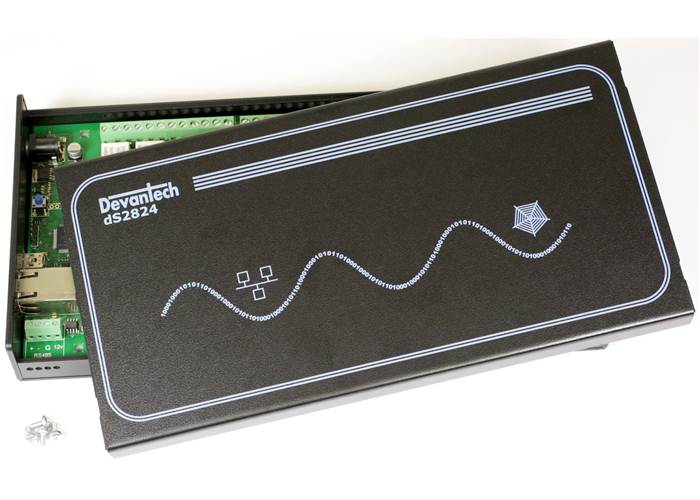

We also have a case for this module.

Documentation

Documentation, editor and examples

Videos

dScript First Look

dScript Quick Start
