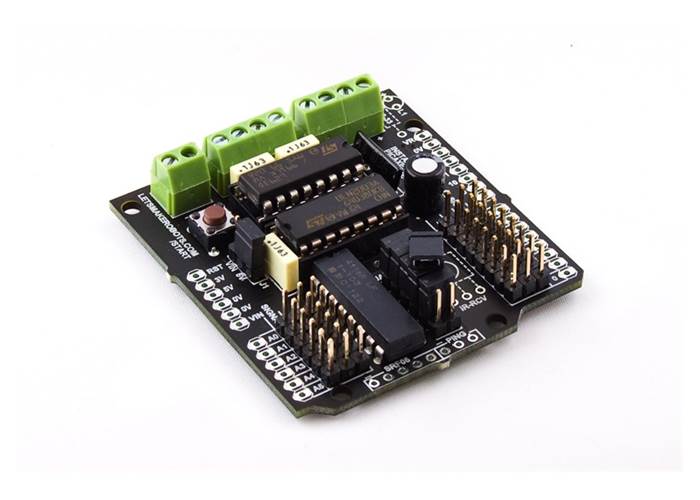

PICAXE Instant Robot Shield - Assembled (AXE408)

The PICAXE Instant Robot Shield is designed to enable you to rapidly create a robot based upon a PICAXE-28X2 or Arduino controller. Simply push the shield onto your controller, connect your motors, sensors and servos and you can have a working robot within just a few minutes!

Discontinued

No Stock Available

Our Code: MCU-60137

Overview

The Instant Robot Shield is designed to enable you to rapidly create a robot based upon a PICAXE-28X2 or Arduino controller. Simply push the shield onto your controller, connect your motors, sensors and servos and you can have a working robot within just a few minutes!

Key Features:



  • Two 1A motor channels with optional PWM control
  • Two 500mA buffered outputs (for buzzers etc).
  • 6 analogue or digital inputs, with optional on-board 10k pull down resistor
  • 8 servo or digital outputs
  • Power either from shield base or via separate battery pack


Optional Upgrade Features:



  • Ultrasonic Range Finder (SRF005 or PING)
  • LED020 Infrared-red receiver for control via a TV style remote control (e.g. TVR010)
  • LED021 Infra-Red Transmitter LED for communication with other robots


Specifications

  • Two 1A motor channels with optional PWM control
  • Two 500mA buffered outputs (for buzzers etc).
  • 6 analogue or digital inputs, with optional on-board 10k pull down resistor
  • 8 servo or digital outputs
  • Power either from shield base or via separate battery pack

Compatible with the AXE408 PICAXE-28X2 shield base or any standard size Arduino (Uno etc).
