PICAXE 28X2 Shield Base Assembled (AXE401)

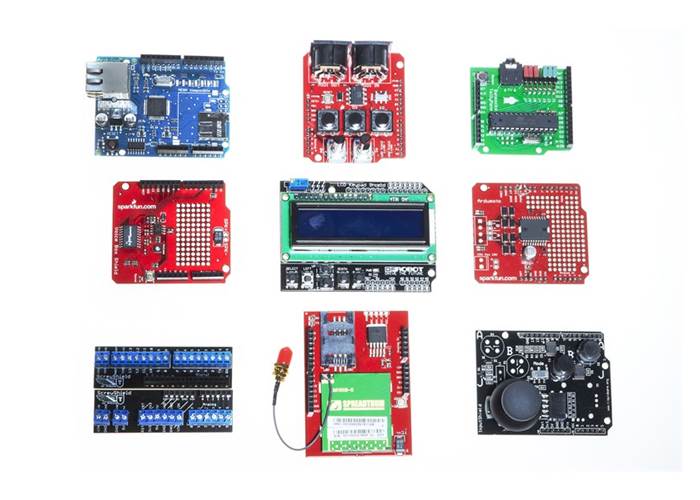

The PICAXE-28X2 shield base has been designed to be compatible with almost all 'shield modules' as used with the Arduino system. This allows use of the various third party shields (Ethernet, MP3, Motor controllers) etc. with the PICAXE-28X2 microcontroller system, programming in BASIC. The PICAXE-28X2 chip *IS* included with this purchase.

Discontinued

No Stock Available

Our Code: MCU-60136

The PICAXE-28X2 shield base has been designed to be compatible with almost all 'shield modules' as used with the Arduino system. This allows use of the various third party shields (Ethernet, MP3, Motor controllers) etc. with the PICAXE-28X2 microcontroller system, programming in BASIC. The PICAXE-28X2 chip is included with this purchase. This pack also includes a free AXE405 proto shield PCB for experimentation. This is the pre-assembled version, also available as a self assembly kit (AXE401KIT).

The PICAXE Shield Base can be used with any software application that supports the PICAXE hardware, including the free PICAXE Programming Editor and/or Logicator for PIC Micros software.

Specifications

Pack size 80x30x60mm (approx.)
Pack weight 50g (approx.)

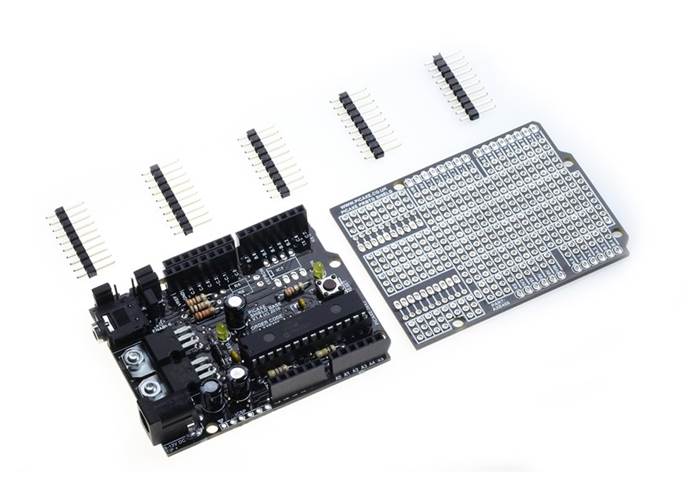

Pack Contents:

AXE401 PICAXE Shield Base
AXE405 PICAXE Proto Shield Board
AXE010X2 PICAXE-28X2 microcontroller
CON037 10-way 0.1" header (5 off)

Resources

PICAXE-28X2 Shield Base Datasheet PDF Datasheet
PICAXE-28X2 Microcontroller Datasheet PDF Datasheet
PICAXE USB Download Cable Datasheet PDF Datasheet
