Power HD Analog Standard Size Continuous Rotation Servo AR-3606HB

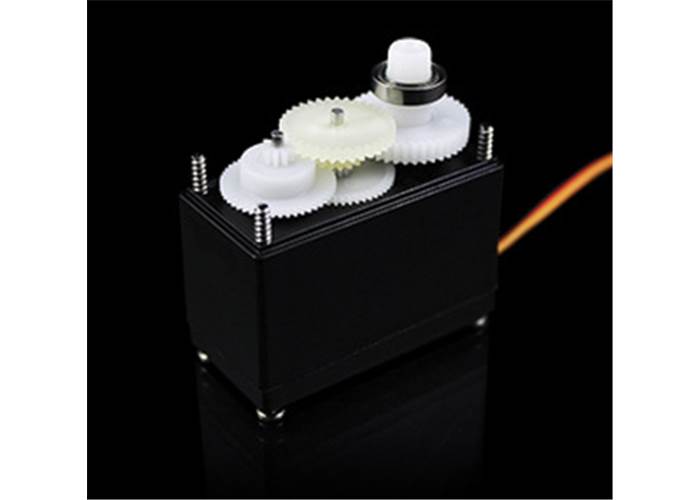

AR 3606HB is a continuous rotation servo from PowerHD. It combines high torque and good speed using quality gears and ball bearings. Key specs at 6 V: 0.16 sec/60°, 93 oz-in (6.7 kg-cm), 40g. The servo also offers easy access to the rest-point adjustment potentiometer.

Not currently available

Our Code: MEC-30155


The AR-3606HG  is a standard-size servo that is factory built for continuous rotation. Using a normal servo signal from a microcontroller or RC gear this servo includes its own motor driver to provide speed and direction control.

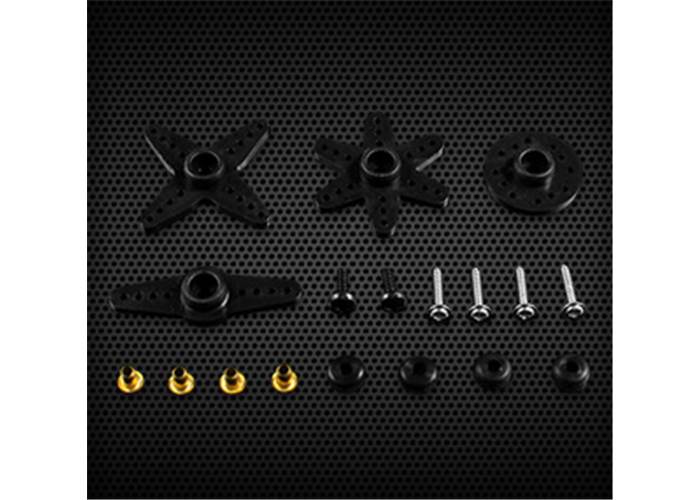

The spline is futaba compatible and works with our servo wheels. Alternatively you can use the included servo horns to mount custom wheels to the servo.

 The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible



Size 40.5 x 20 x 38mm
Weight 40g
Digital/Analog Analog
Speed @ 6V 0.14 sec/60°
Stall Torque @6V 6.7kg/cm
Speed @ 4.8V 0.16 sec/60°
Stall Torque 4.86V 6.0kg/cm
Lead Length 11in (279.4mm)
Hardware Included Yes
